Product Specifications
| Manufacturer Part Number | 02717770 |

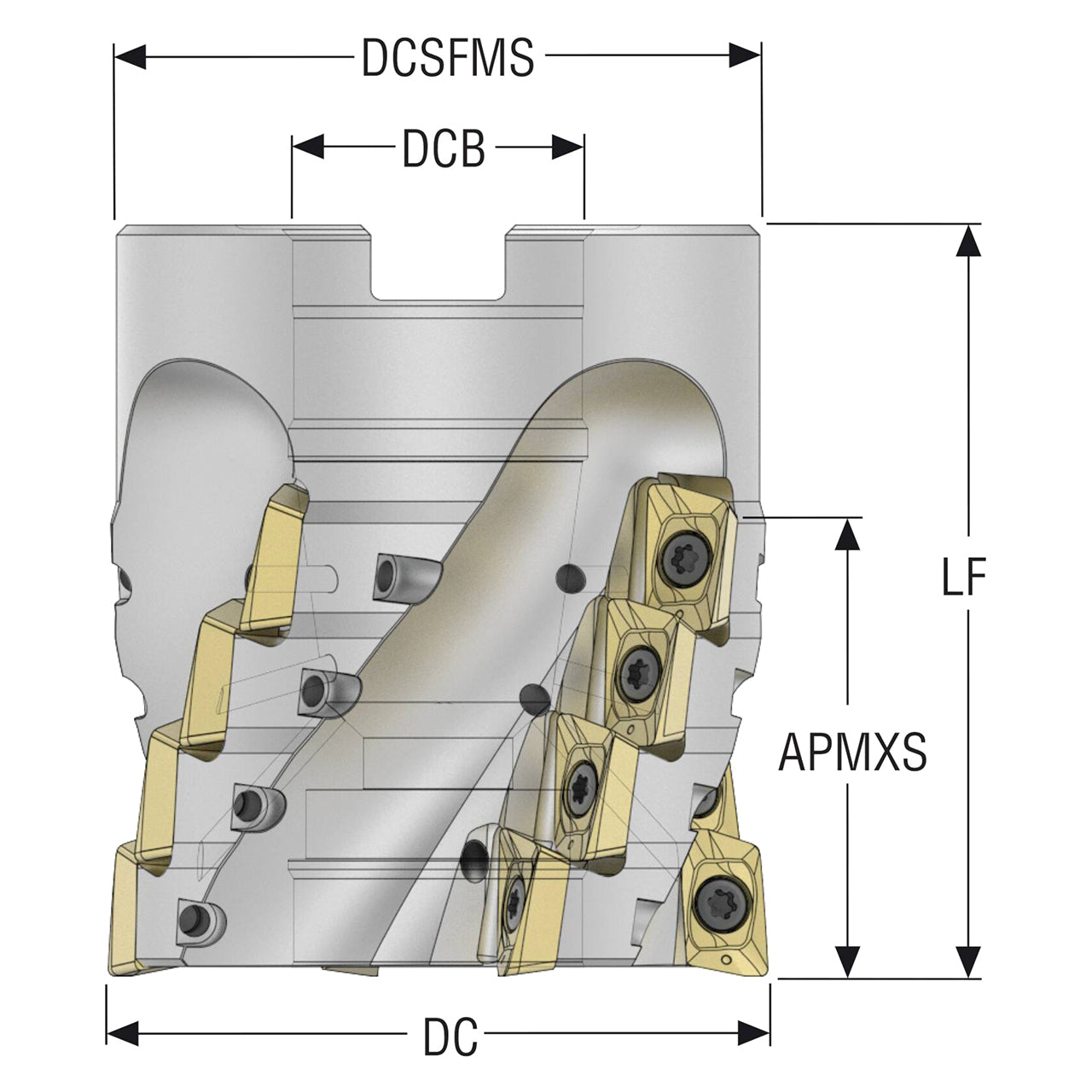

| Cutting Diameter (mm) | 63.00mm |
| Connection Bore Diameter (mm) | 27.00mm |
| Contact Surface Diameter Machine Side (mm) | 60.00mm |
| Functional Length (mm) | 70.20mm |
| Coolant Entry Style Code | 1 |
| Cutting Pitch Density | Close |
| Coolant Supply Property | 1 |
| Coolant Exit Style Code | 3 |
| Flute Helix Hand | Right Hand |
| Number of Flute | 4 |
| Insert Shape Code | X |
| Shank Type | Arbor |

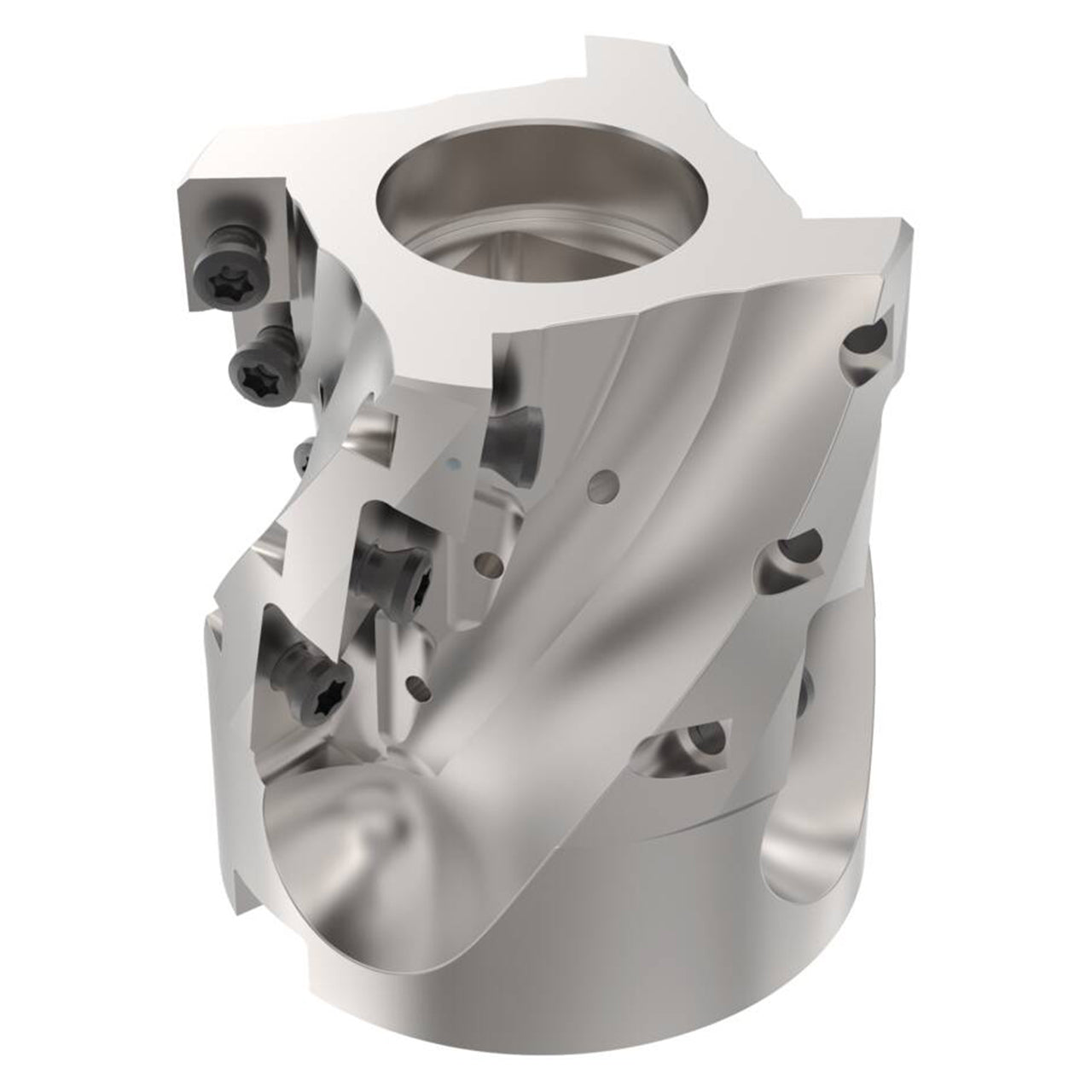

| Product Type | Indexable Square-Shoulder End Mill |
