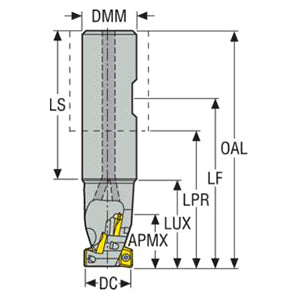

Product Specifications
| Manufacturer Part Number | 02710934 |
| Cutting Diameter (Decimal Inch) | 2.000" |
| Cutting Diameter (mm) | 50.80mm |
| Connection Diameter Machine Side (Decimal Inch) | 1.500" |
| Connection Diameter Machine Side (mm) | 38.10mm |
| Shank Diameter (Decimal Inch) | 1.500" |
| Shank Diameter (mm) | 38.10mm |
| Maximum Helical Interpolation Hole Diameter (Decimal Inch) | 3.902" |
| Maximum Helical Interpolation Hole Diameter (mm) | 99.10mm |
| Minimum Helical Interpolation Hole Diameter (Decimal Inch) | 3.276" |
| Minimum Helical Interpolation Hole Diameter (mm) | 83.20mm |
| Functional Length (Decimal Inch) | 4.303" |
| Functional Length (mm) | 109.30mm |
| Protruding Length (Decimal Inch) | 2.802" |
| Protruding Length (mm) | 71.16mm |
| Shank Length (Decimal Inch) | 2.689" |
| Shank Length (mm) | 68.30mm |
| Overall Length (Decimal Inch) | 5.491" |
| Overall Length (mm) | 139.46mm |
| Maximum Depth of Cut (mm) | 47.00mm |
| Maximum Depth of Cut (Decimal Inch) | 1.850" |
| Coolant Entry Style Code | 1 |
| Cutting Pitch Density | Normal |
| Coolant Supply Property | 1 |
| Coolant Exit Style Code | 3 |
| Flute Helix Hand | Right Hand |
| Rake Radial Angle (Degree) | -7.5 Degree |
| Rake Radial Angle (Degree) | -7.5 Degree |
| Rake Orthogonal Angle (Degree) | -7.5 Degree |
| Axial Rake Angle (Degree) | 5.5 Degree |
| Tool Cutting Edge Angle (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction End (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction Side (Degree) | 90 Degree |
| Number of Flute | 3 |
| Maximum Ramping Angle (Degree) | 3 Degree |
| Maximum Rotational Speed (rpm) | 8900 rpm |
| Insert Shape Code | X |
| Shank Type | Weldon |
| Product Type | Indexable Square-Shoulder End Mill |
