Product Specifications
| Manufacturer Part Number | 02709297 |
| Cutting Diameter (mm) | 14.00mm |
| Contact Surface Diameter Machine Side (mm) | 13.20mm |
| Thread Diameter Size | M8 |
| Maximum Helical Interpolation Hole Diameter (mm) | 27.25mm |
| Minimum Helical Interpolation Hole Diameter (mm) | 22.48mm |
| Functional Length (mm) | 25.00mm |
| Overall Length (mm) | 42.75mm |
| Maximum Depth of Cut (mm) | 15.00mm |
| Connection Mounting Torque (Nm) | 25.0 Nm |
| Cutting Pitch Density | Normal |
| Flute Helix Hand | Right Hand |
| Rake Radial Angle (Degree) | -8 Degree |
| Rake Radial Angle (Degree) | -8 Degree |
| Rake Orthogonal Angle (Degree) | -8 Degree |
| Axial Rake Angle (Degree) | 7.2 Degree |
| Tool Cutting Edge Angle (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction End (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction Side (Degree) | 90 Degree |
| Number of Flute | 2 |
| Maximum Ramping Angle (Degree) | 5 Degree |
| Maximum Rotational Speed (rpm) | 51200 rpm |
| Insert Shape Code | X |
| Shank Type | Combimaster |

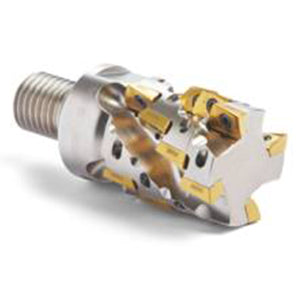

| Product Type | Indexable Square Shoulder Mill |
