Product Specifications
| Manufacturer Part Number | 02690649 |
| Cutting Diameter (mm) | 20.00mm |
| Connection Diameter Machine Side (mm) | 20.00mm |
| Shank Diameter (mm) | 20.00mm |
| Minimum Helical Interpolation Hole Diameter (mm) | 34.50mm |
| Maximum Helical Interpolation Hole Diameter (mm) | 39.00mm |
| Functional Length (mm) | 60.00mm |
| Protruding Length (mm) | 35.00mm |
| Shank Length (mm) | 65.00mm |
| Overall Length (mm) | 85.00mm |
| Maximum Depth of Cut (mm) | 5.00mm |
| Tool Cutting Edge Angle (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction End (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction Side (Degree) | 90 Degree |
| Rake Radial Angle (Degree) | -6.5 Degree |
| Rake Orthogonal Angle (Degree) | -6.5 Degree |
| Maximum Ramping Angle (Degree) | 2.5 Degree |
| Maximum Rotational Speed (rpm) | 44000 rpm |
| Coolant Entry Style Code | 1 |
| Cutting Pitch Density | Close |
| Coolant Supply Property | 1 |
| Pocket Seat Code of The Cutter | XO.X0602 |
| Coolant Exit Style Code | 3 |
| Cutting Item Material Type | Steel |
| Shank Type | Weldon |

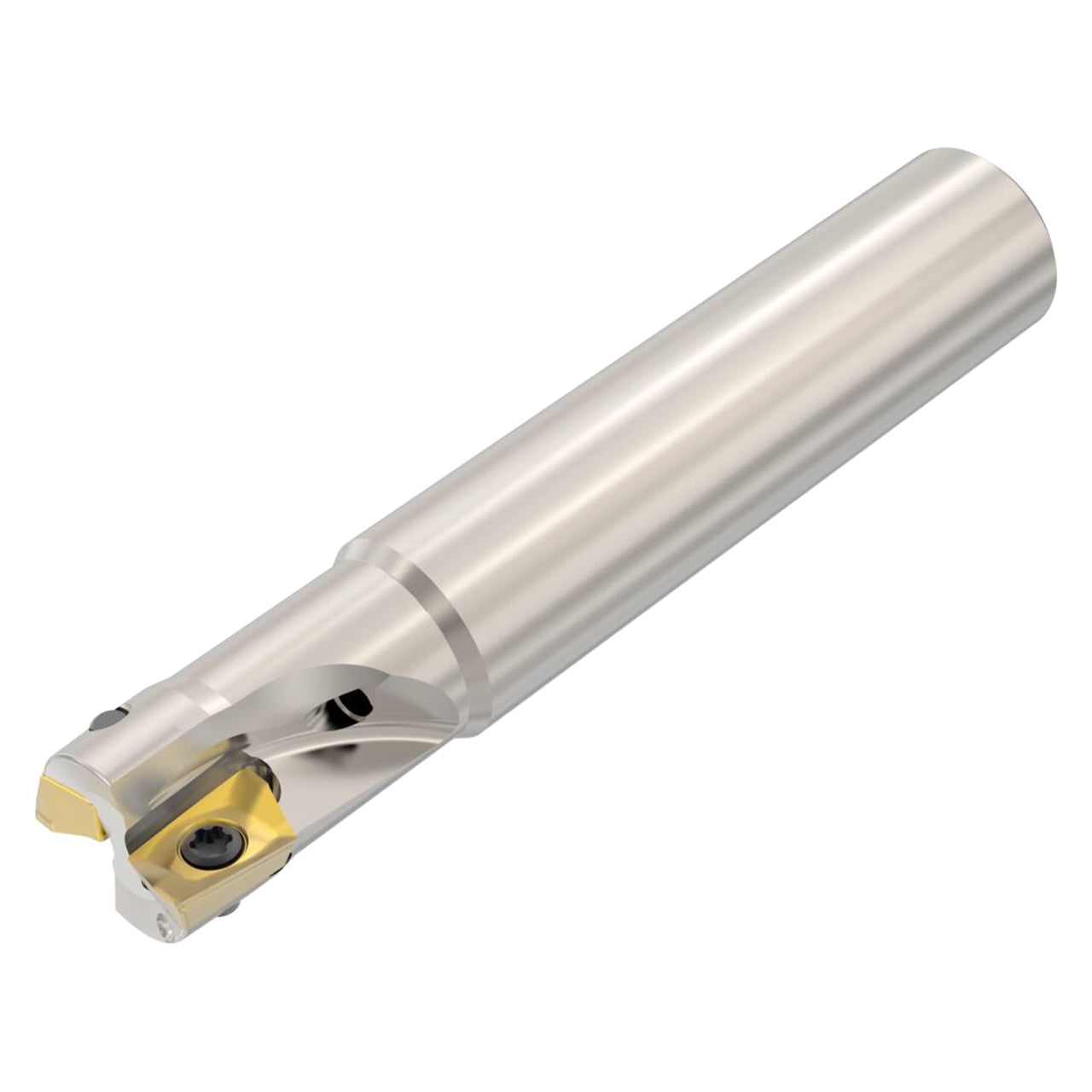

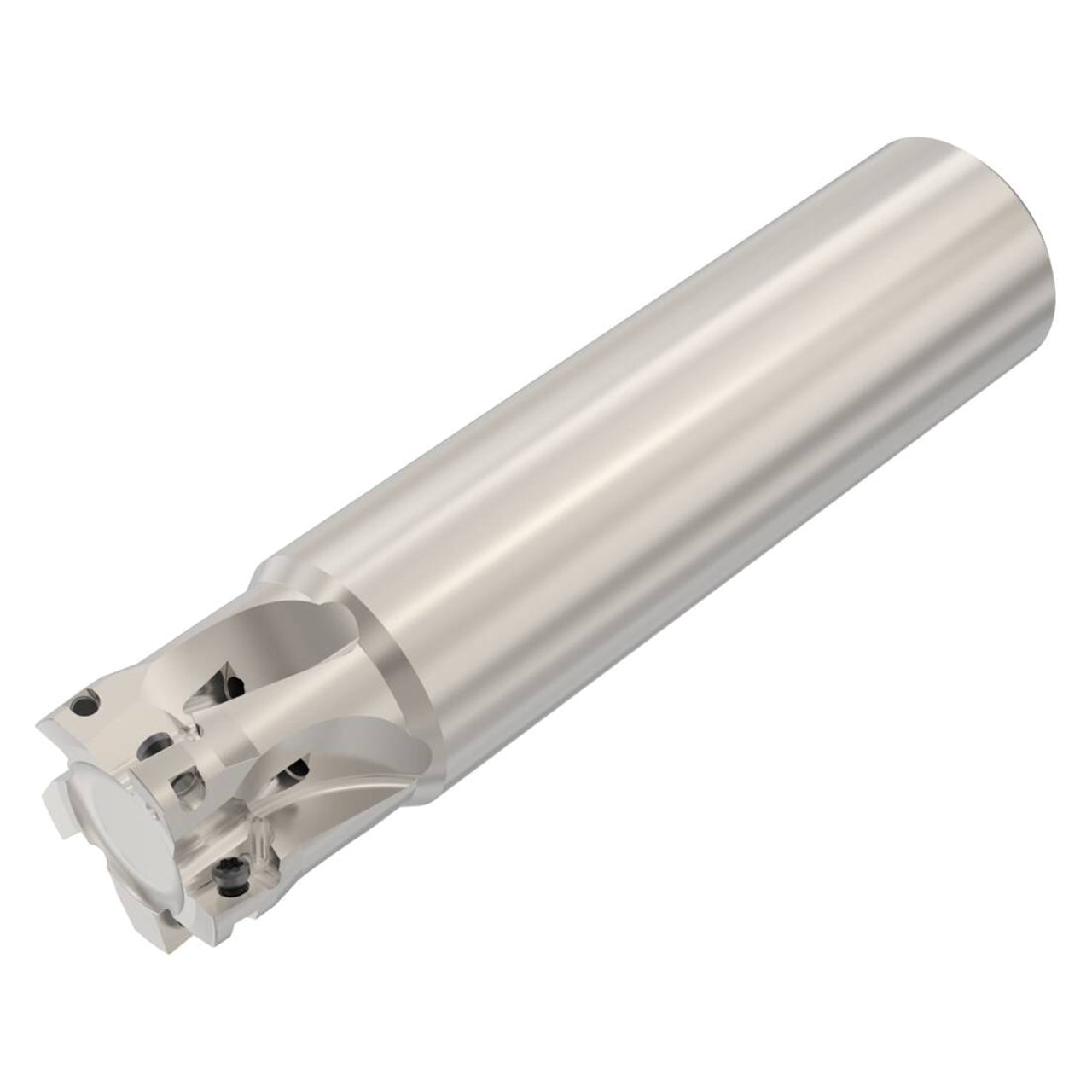

| Product Type | Indexable Square-Shoulder End Mill |
