Product Specifications
| Manufacturer Part Number | 02690178 |
| Cutting Diameter (mm) | 54.00mm |
| Contact Surface Diameter Machine Side (mm) | 50.00mm |
| Functional Length (mm) | 60.00mm |
| Maximum Depth of Cut (mm) | 7.50mm |
| Coolant Entry Style Code | 1 |
| Cutting Pitch Differential | 1 |
| Cutting Pitch Density | Normal |
| Coolant Supply Property | 1 |
| Coolant Exit Style Code | 3 |
| Rake Radial Angle (Degree) | -13.2 Degree |
| Rake Radial Angle (Degree) | -13.2 Degree |
| Rake Orthogonal Angle (Degree) | -13.2 Degree |
| Axial Rake Angle (Degree) | -6.9 Degree |
| Tool Cutting Edge Angle (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction End (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction Side (Degree) | 90 Degree |
| Maximum Rotational Speed (rpm) | 10200 rpm |
| Shank Type | Seco-Capto |

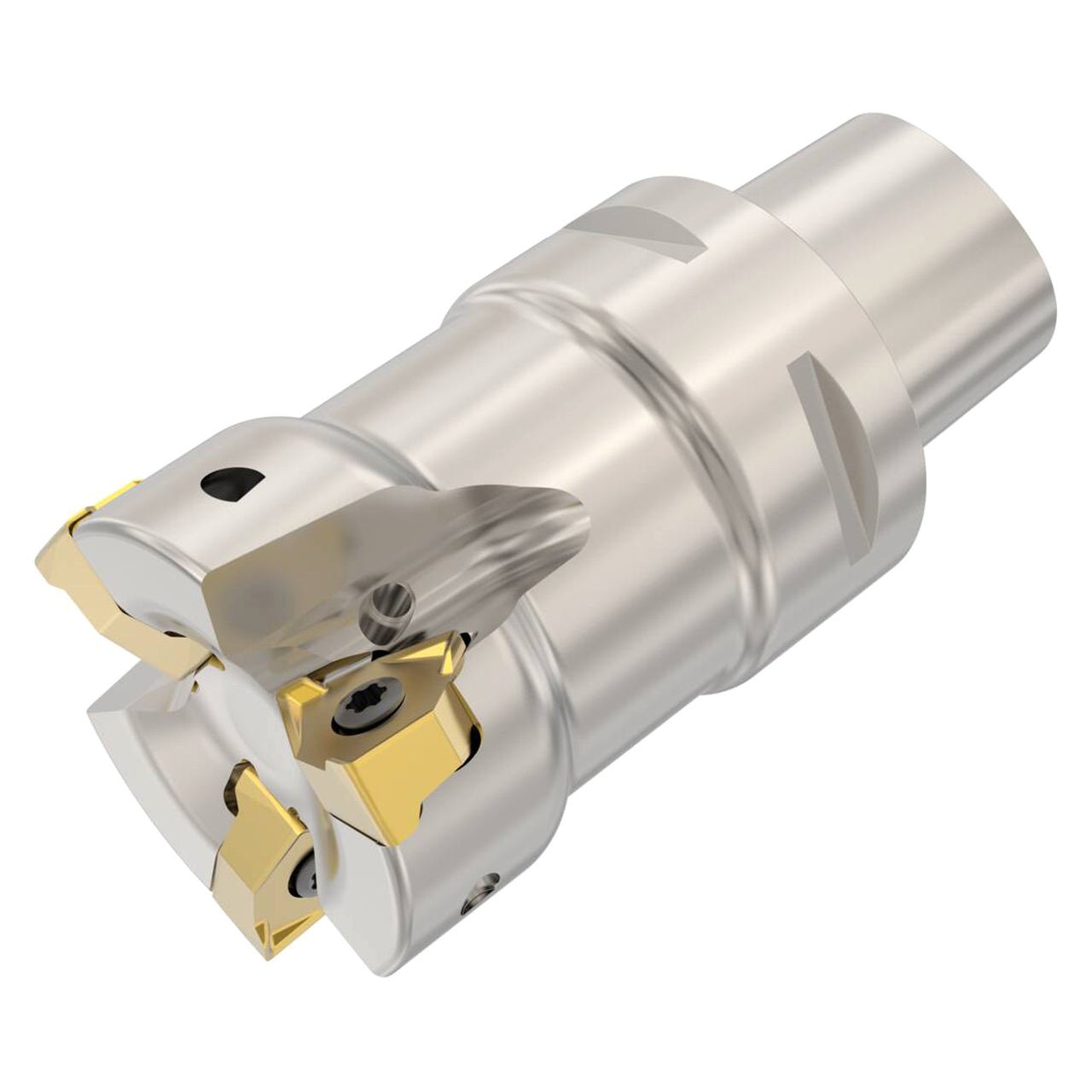

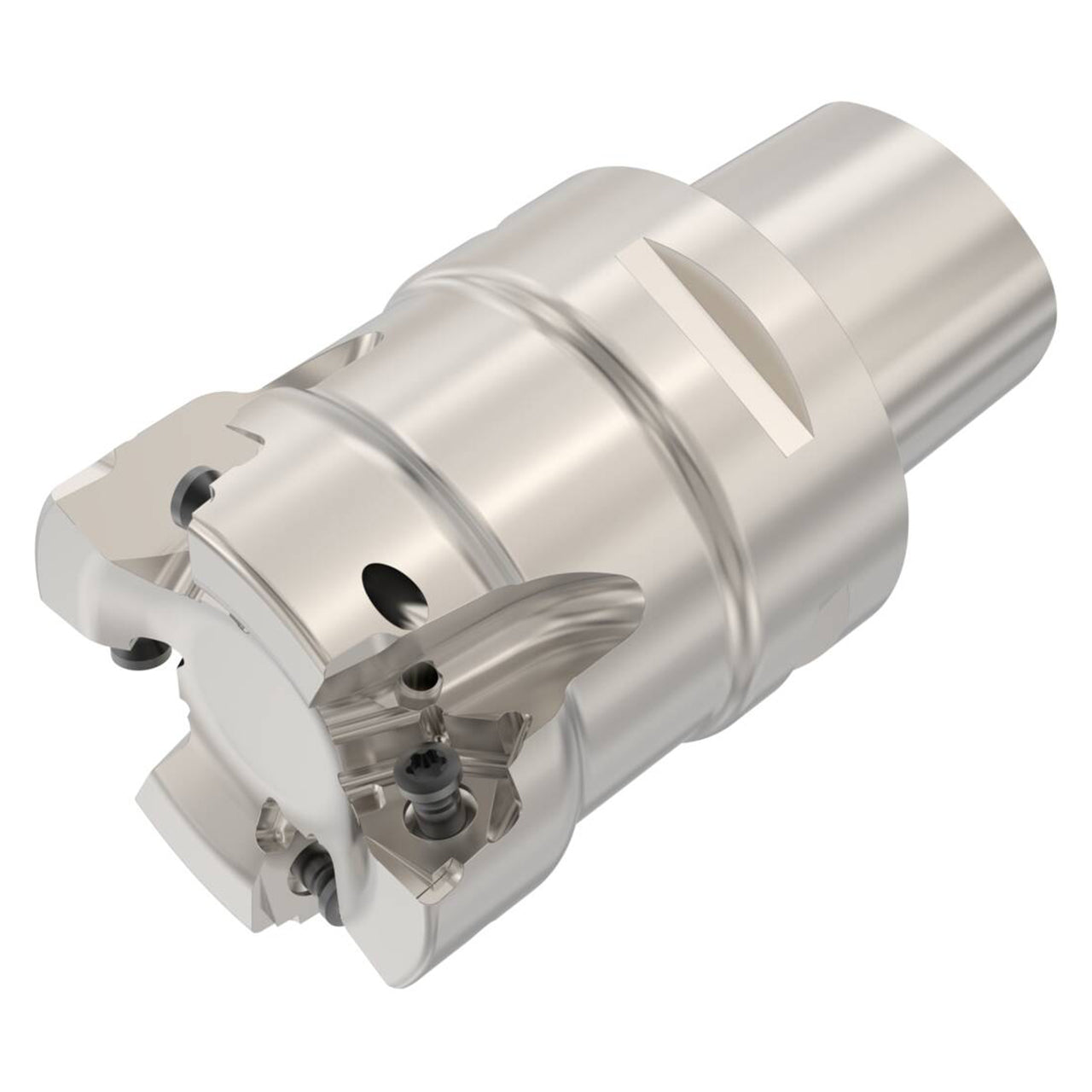

| Product Type | Indexable Square-Shoulder End Mill |
