Product Specifications
| Manufacturer Part Number | 02688849 |
| Cutting Diameter (Decimal Inch) | 0.875" |
| Cutting Diameter (mm) | 22.23mm |
| Connection Diameter Machine Side (Decimal Inch) | 0.750" |
| Connection Diameter Machine Side (mm) | 19.05mm |
| Shank Diameter (Decimal Inch) | 0.750" |
| Shank Diameter (mm) | 19.05mm |
| Maximum Helical Interpolation Hole Diameter (Decimal Inch) | 1.654" |
| Maximum Helical Interpolation Hole Diameter (mm) | 42.00mm |
| Minimum Helical Interpolation Hole Diameter (Decimal Inch) | 1.240" |
| Minimum Helical Interpolation Hole Diameter (mm) | 31.50mm |
| Protruding Length (Decimal Inch) | 3.937" |
| Protruding Length (mm) | 100.00mm |
| Shank Length (Decimal Inch) | 4.724" |
| Shank Length (mm) | 120.00mm |
| Overall Length (Decimal Inch) | 5.906" |
| Overall Length (mm) | 150.00mm |
| Maximum Depth of Cut (mm) | 11.00mm |
| Maximum Depth of Cut (Decimal Inch) | 0.433" |
| Coolant Entry Style Code | 1 |
| Cutting Pitch Density | Normal |
| Coolant Supply Property | 1 |
| Coolant Exit Style Code | 3 |
| Rake Radial Angle (Degree) | -10.3 Degree |
| Rake Radial Angle (Degree) | -10.3 Degree |
| Rake Orthogonal Angle (Degree) | -10.3 Degree |
| Axial Rake Angle (Degree) | 4.1 Degree |
| Tool Cutting Edge Angle (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction End (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction Side (Degree) | 90 Degree |
| Maximum Ramping Angle (Degree) | 6 Degree |
| Maximum Rotational Speed (rpm) | 22000 rpm |
| Shank Type | Cylindrical |

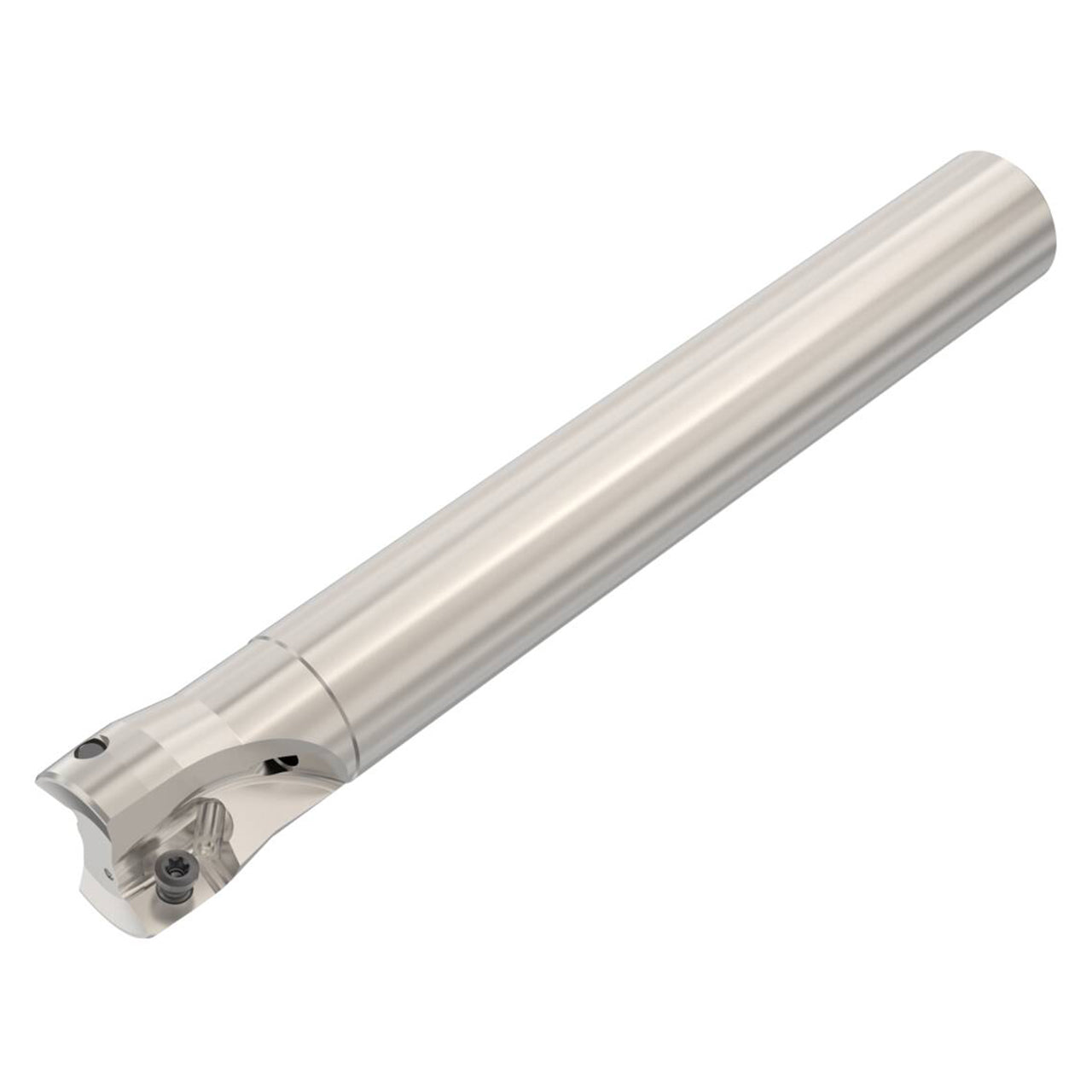

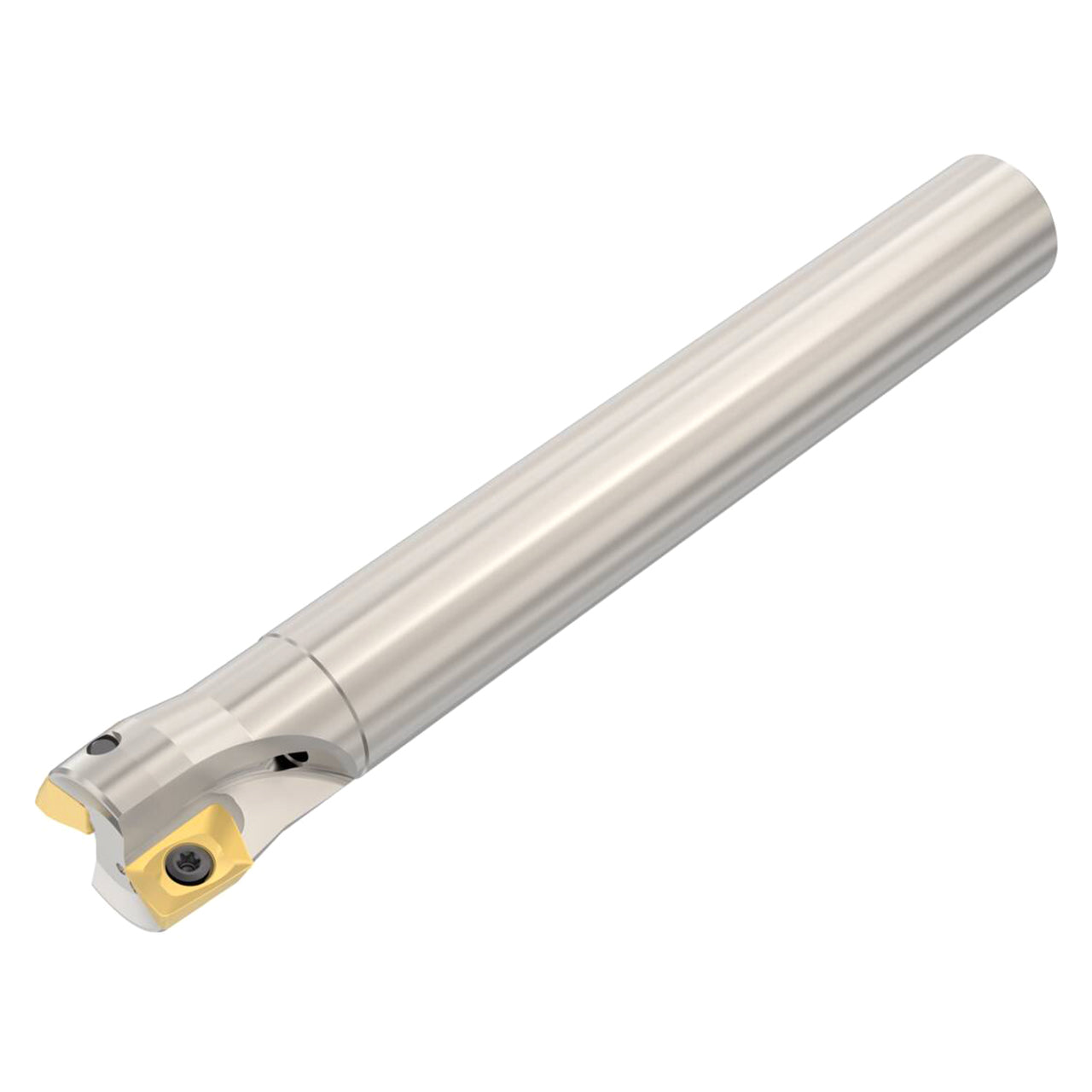

| Product Type | Indexable Square-Shoulder End Mill |
