Product Specifications
| Manufacturer Part Number | 02684139 |
| Minimum Cutting Diameter Internal 3 (Decimal Inch) | 6.299" |
| Minimum Cutting Diameter Internal 3 (mm) | 160.00mm |
| Contact Surface Diameter Machine Side (Decimal Inch) | 2.480" |
| Contact Surface Diameter Machine Side (mm) | 63.00mm |
| Functional Length (Decimal Inch) | 2.559" |
| Functional Length (mm) | 65.00mm |
| Maximum Radial Cutting Depth (Decimal Inch) | 0.047" |
| Maximum Radial Cutting Depth (mm) | 1.20mm |
| Maximum Cutting Depth (Decimal Inch) | 0.213" |
| Maximum Cutting Depth (mm) | 5.40mm |
| Functional Width (Decimal Inch) | 1.378" |
| Functional Width (mm) | 35.00mm |
| Coolant Entry Style Code | 1 |
| Coolant Supply Property | 1 |
| Rake Radial Angle (Degree) | -6 Degree |
| Rake Radial Angle (Degree) | -6 Degree |
| Rake Orthogonal Angle (Degree) | -6 Degree |
| Axial Rake Angle (Degree) | -6 Degree |
| Cutting Direction | Right Hand |
| Insert Clamping System | P |
| Tool Cutting Edge Angle (Degree) | 75 Degree |
| Tool Cutting Edge Angle Code | R |
| Tool Cutting Edge Angle In Feed Direction End (Degree) | 105 Degree |
| Tool Cutting Edge Angle In Feed Direction Side (Degree) | 75 Degree |
| Inclination Angle (Degree) | -6 Degree |
| Maximum Ramping Angle (Degree) | 40 Degree |
| Insert Shape Code | S |
| Shank Type | Seco-Capto |

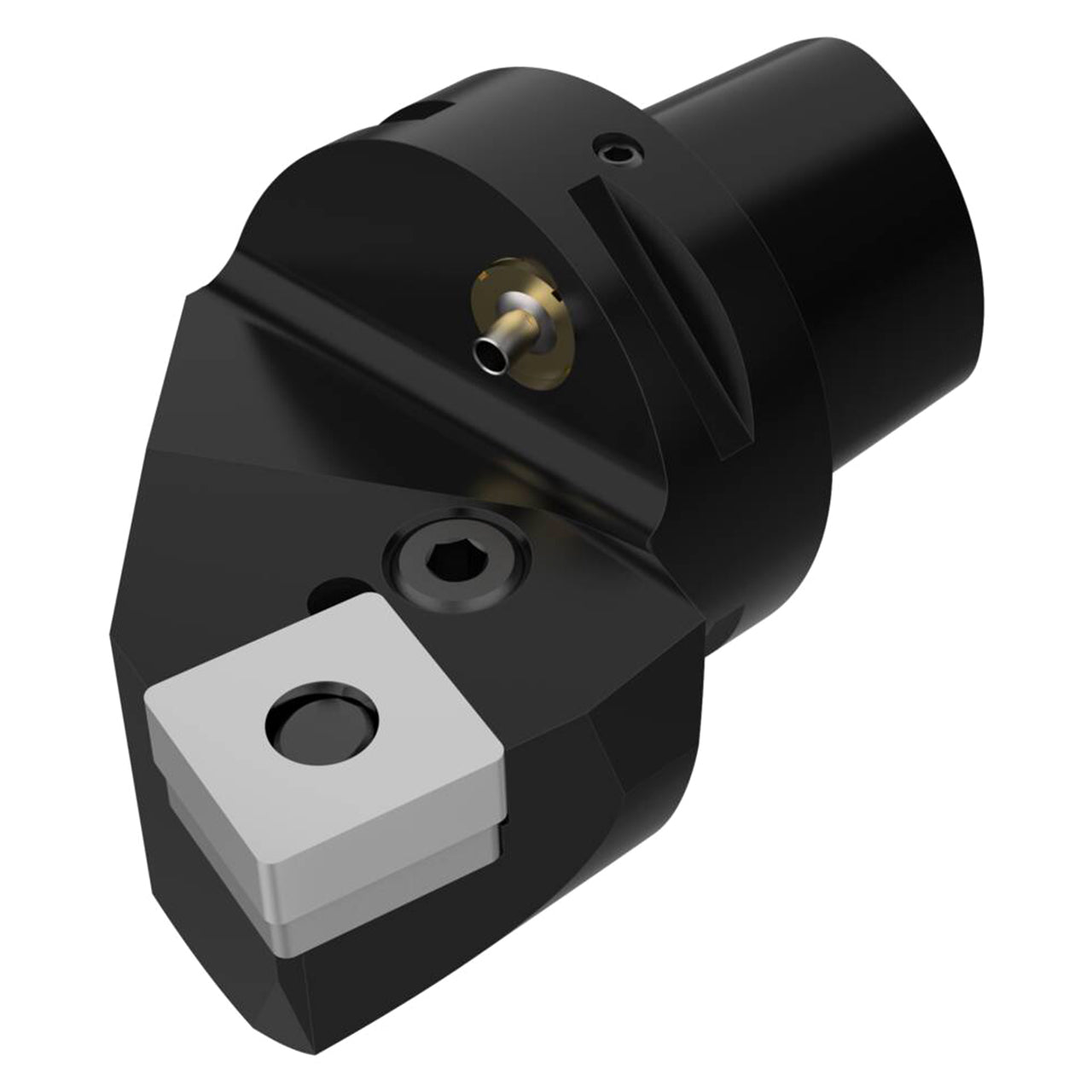

| Product Type | Modular Turning Head |
