Product Specifications
| Manufacturer Part Number | 02676820 |
| Cutting Diameter (mm) | 32.00mm |
| Connection Diameter Machine Side (mm) | 32.00mm |
| Shank Diameter (mm) | 32.00mm |
| Maximum Helical Interpolation Hole Diameter (mm) | 62.00mm |
| Minimum Helical Interpolation Hole Diameter (mm) | 51.50mm |
| Functional Length (mm) | 69.00mm |
| Protruding Length (mm) | 45.00mm |
| Shank Length (mm) | 65.00mm |
| Overall Length (mm) | 105.00mm |
| Maximum Depth of Cut (mm) | 11.00mm |
| Coolant Entry Style Code | 1 |
| Cutting Pitch Density | Normal |
| Coolant Supply Property | 1 |
| Coolant Exit Style Code | 3 |
| Rake Radial Angle (Degree) | -7.3 Degree |
| Rake Radial Angle (Degree) | -7.3 Degree |
| Rake Orthogonal Angle (Degree) | -7.3 Degree |
| Axial Rake Angle (Degree) | 8 Degree |
| Tool Cutting Edge Angle (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction End (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction Side (Degree) | 90 Degree |
| Maximum Ramping Angle (Degree) | 3 Degree |
| Maximum Rotational Speed (rpm) | 18400 rpm |
| Shank Type | Weldon |

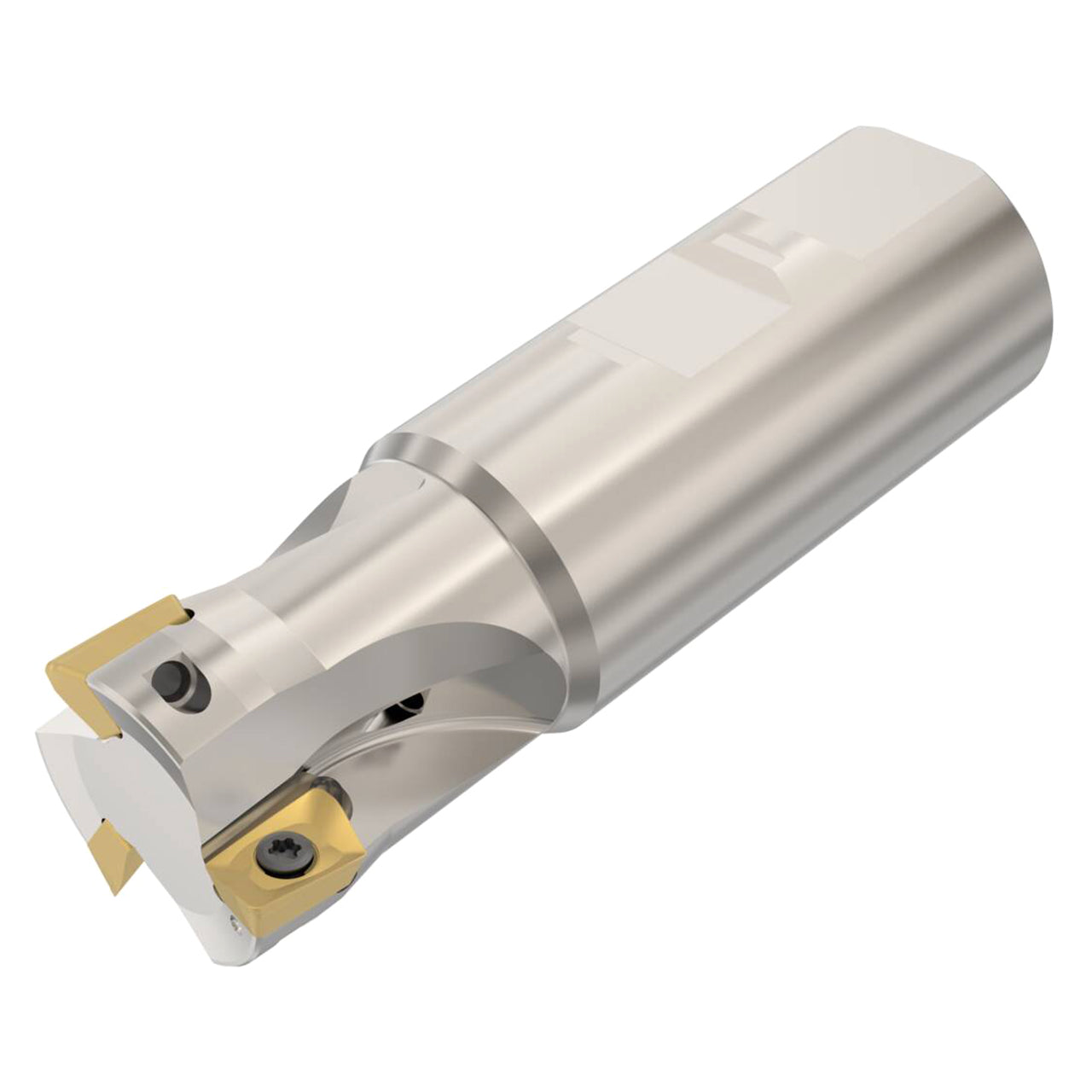

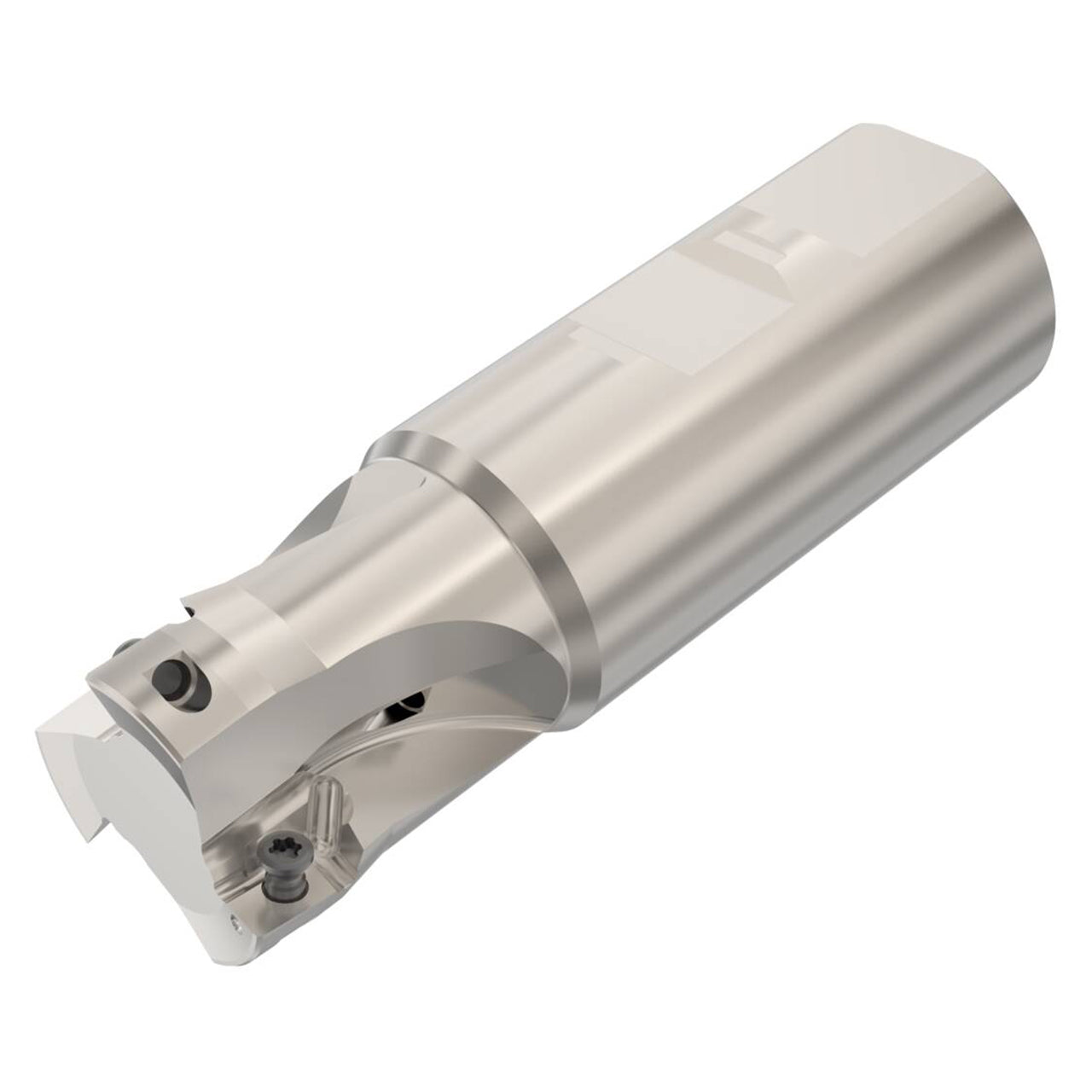

| Product Type | Indexable Square-Shoulder End Mill |
