Product Specifications
| Manufacturer Part Number | 02644686 |
| Body Diameter (Decimal Inch) | 2.480" |
| Body Diameter (mm) | 63.00mm |
| Minimum Cutting Diameter Internal (Decimal Inch) | 2.756" |
| Minimum Cutting Diameter Internal (mm) | 70.00mm |
| Contact Surface Diameter Machine Side (Decimal Inch) | 2.480" |
| Contact Surface Diameter Machine Side (mm) | 63.00mm |
| Functional Length (Decimal Inch) | 7.165" |
| Functional Length (mm) | 182.00mm |
| Functional Width (Decimal Inch) | 1.417" |
| Functional Width (mm) | 36.00mm |
| Coolant Supply Property | 1 |
| Cutting Direction | Right Hand |
| Insert Clamping System | C |
| Tool Cutting Edge Angle (Degree) | 90 Degree |
| Shank Type | Seco-Capto |

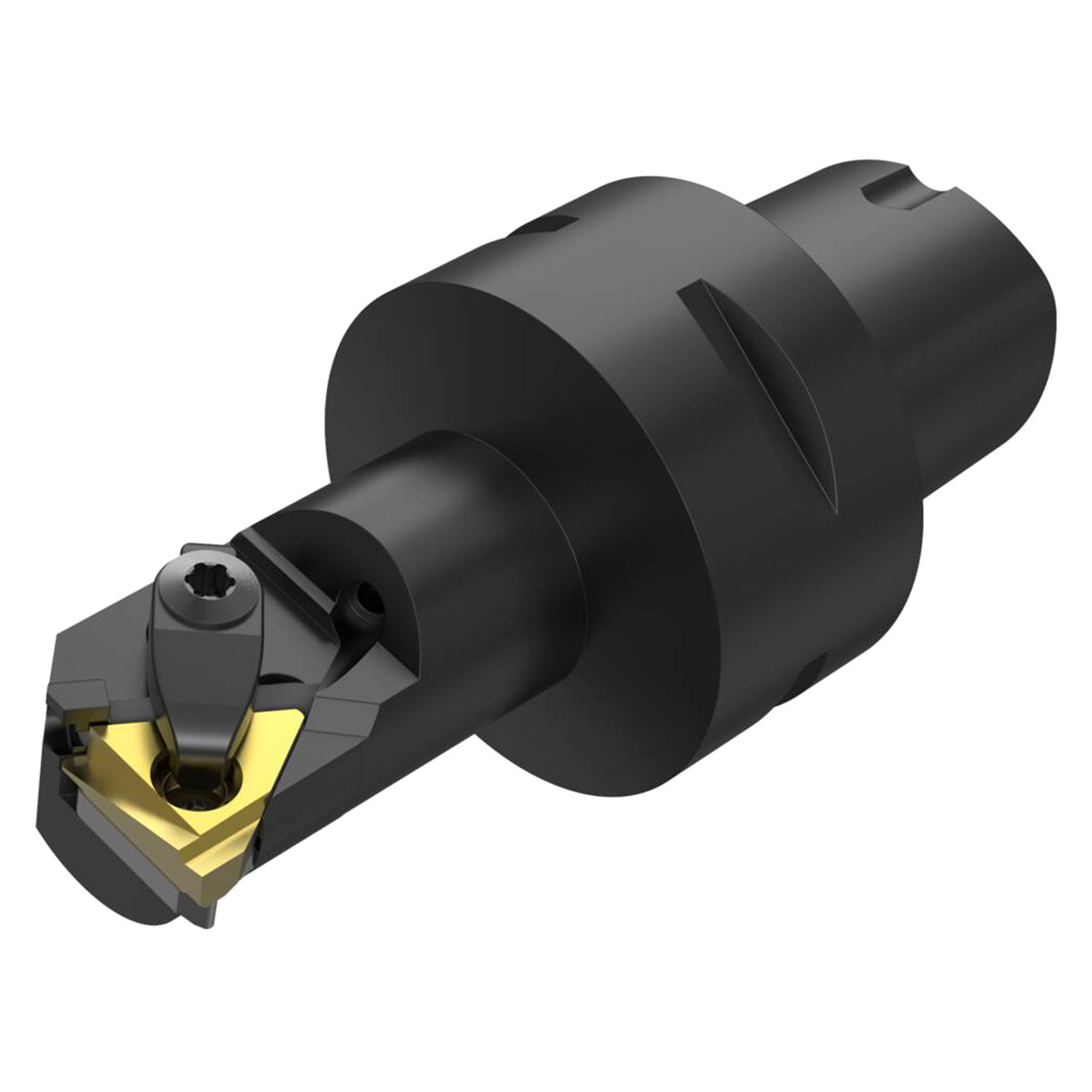

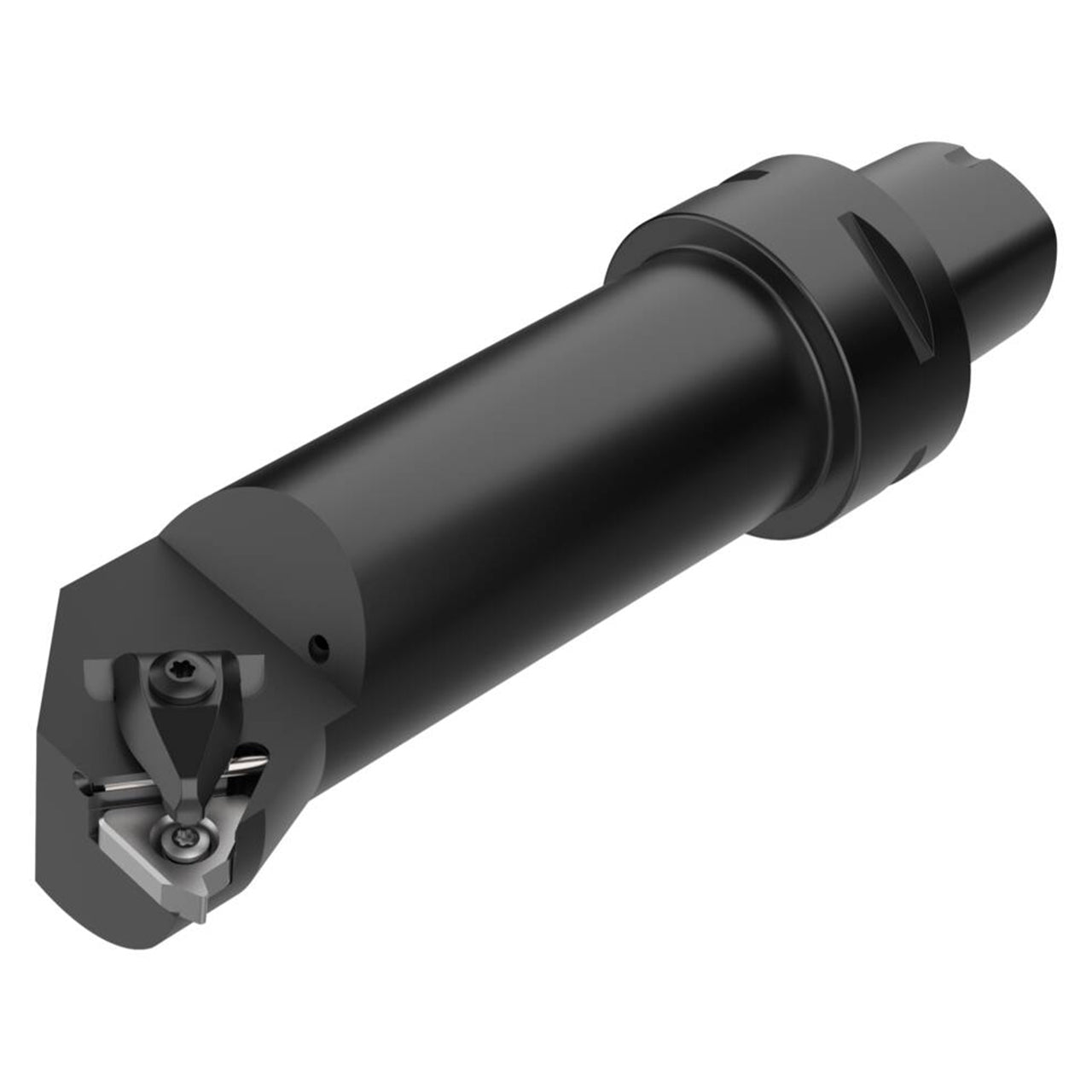

| Product Type | Indexable Threading Toolholder |
