Product Specifications
| Manufacturer Part Number | 02644685 |
| Body Diameter (Decimal Inch) | 2.126" |
| Body Diameter (mm) | 54.00mm |
| Minimum Cutting Diameter Internal (Decimal Inch) | 2.756" |
| Minimum Cutting Diameter Internal (mm) | 70.00mm |
| Contact Surface Diameter Machine Side (Decimal Inch) | 3.150" |
| Contact Surface Diameter Machine Side (mm) | 80.00mm |
| Functional Length (Decimal Inch) | 7.480" |
| Functional Length (mm) | 190.00mm |
| Head Length (Decimal Inch) | 6.299" |
| Head Length (mm) | 160.00mm |
| Usable Length (Decimal Inch) | 6.299" |
| Usable Length (mm) | 160.00mm |
| Functional Width (Decimal Inch) | 1.417" |
| Functional Width (mm) | 36.00mm |
| Coolant Entry Style Code | 1 |
| Coolant Supply Property | 1 |
| Cutting Direction | Left Hand |
| Insert Clamping System | C |
| Tool Cutting Edge Angle (Degree) | 90 Degree |
| Shank Type | Seco-Capto |

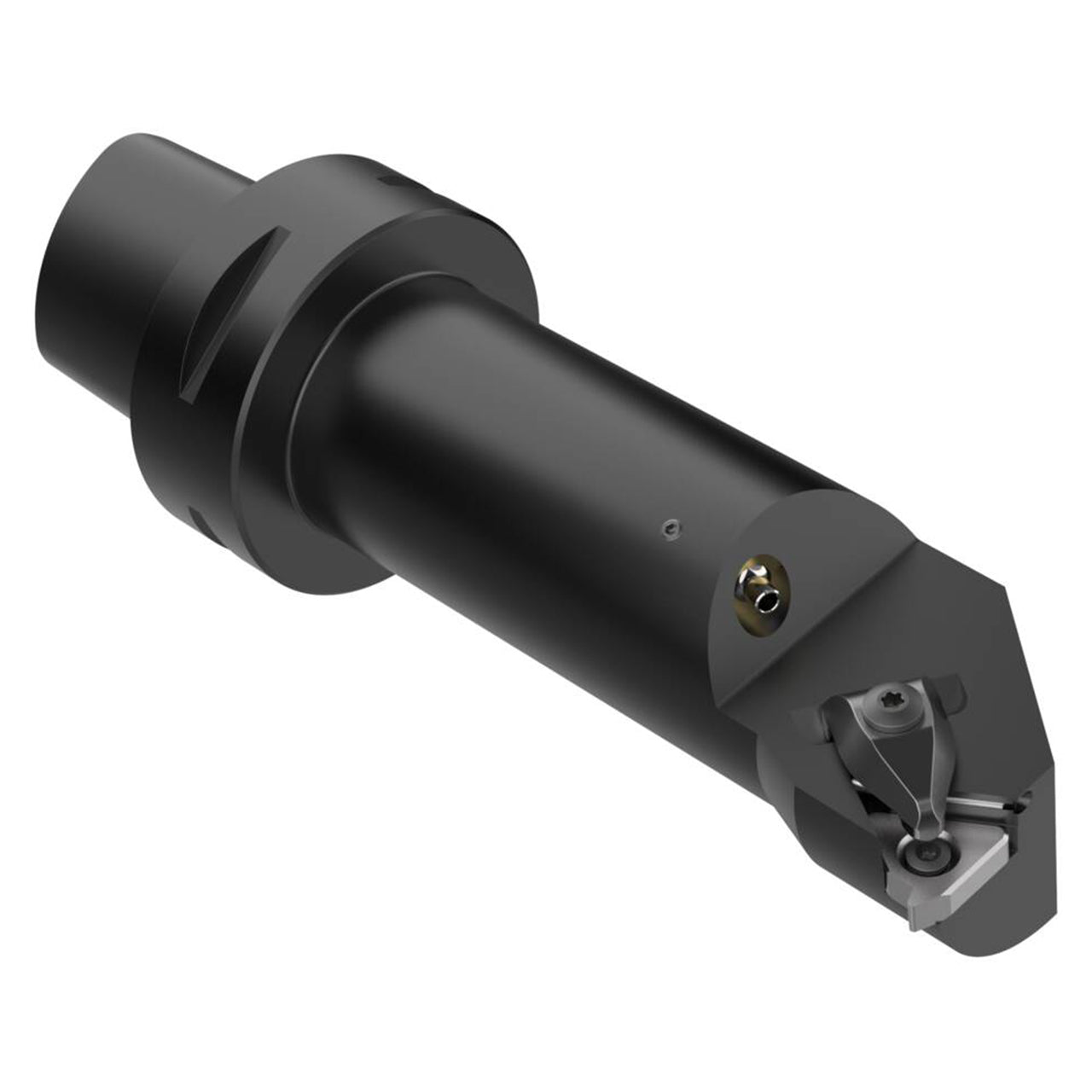

| Product Type | Indexable Threading Toolholder |
