Product Specifications
| Manufacturer Part Number | 02642920 |

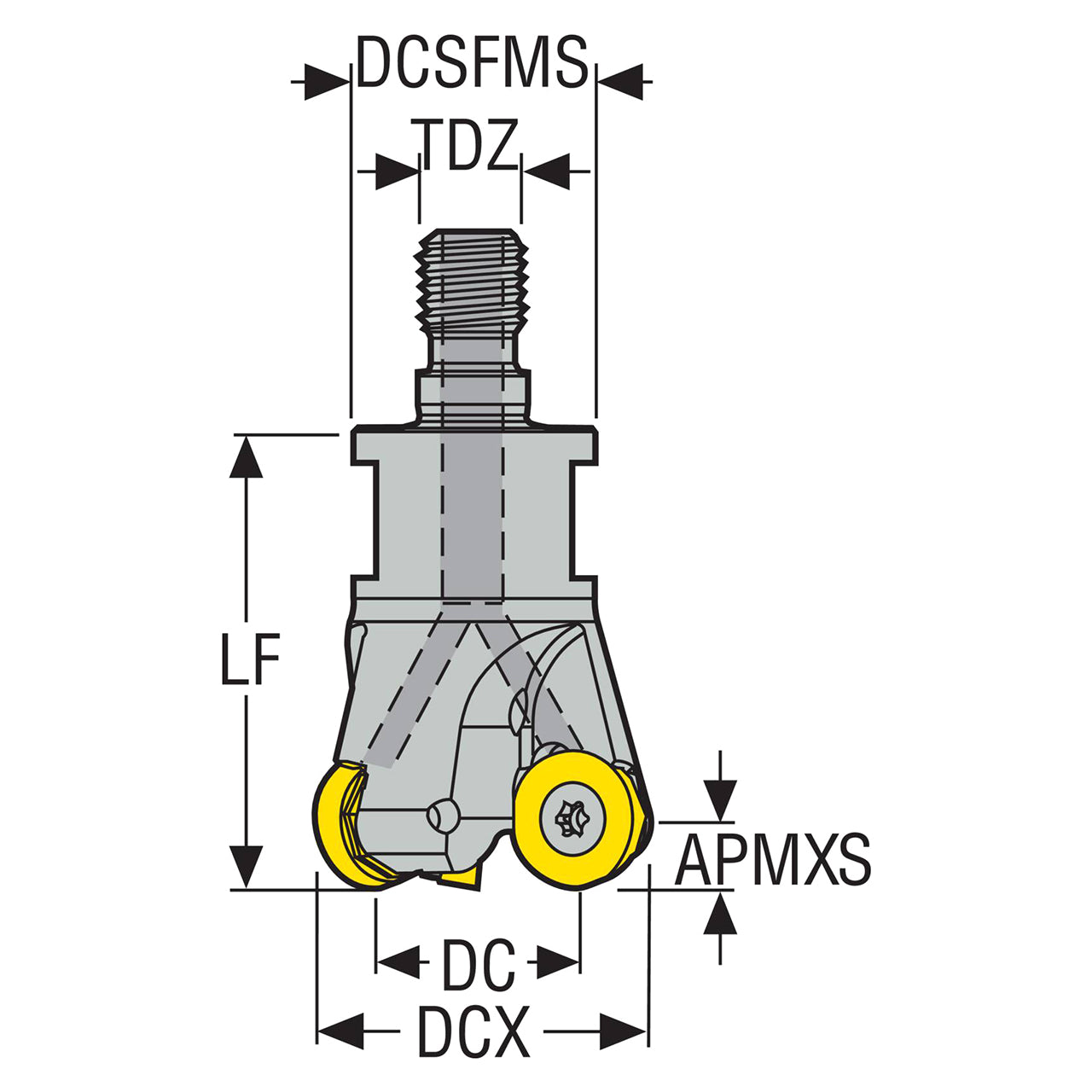

| Cutting Diameter (mm) | 7.00mm |
| Contact Surface Diameter Machine Side (mm) | 11.00mm |
| Maximum Cutting Diameter (mm) | 12.00mm |
| Thread Diameter Size | M6 |
| Maximum Helical Interpolation Hole Diameter (mm) | 22.00mm |
| Minimum Helical Interpolation Hole Diameter (mm) | 19.00mm |
| Functional Length (mm) | 18.00mm |
| Overall Length (mm) | 31.50mm |
| Maximum Depth of Cut (mm) | 2.50mm |
| Connection Mounting Torque (Nm) | 10.0 Nm |
| Coolant Entry Style Code | 1 |
| Cutting Pitch Density | Normal |
| Coolant Supply Property | 1 |
| Coolant Exit Style Code | 3 |
| Axial Rake Angle (Degree) | 5 Degree |
| Maximum Ramping Angle (Degree) | 13.9 Degree |
| Maximum Rotational Speed (rpm) | 65000 rpm |
| Insert Shape Code | R |
| Shank Type | Combimaster |

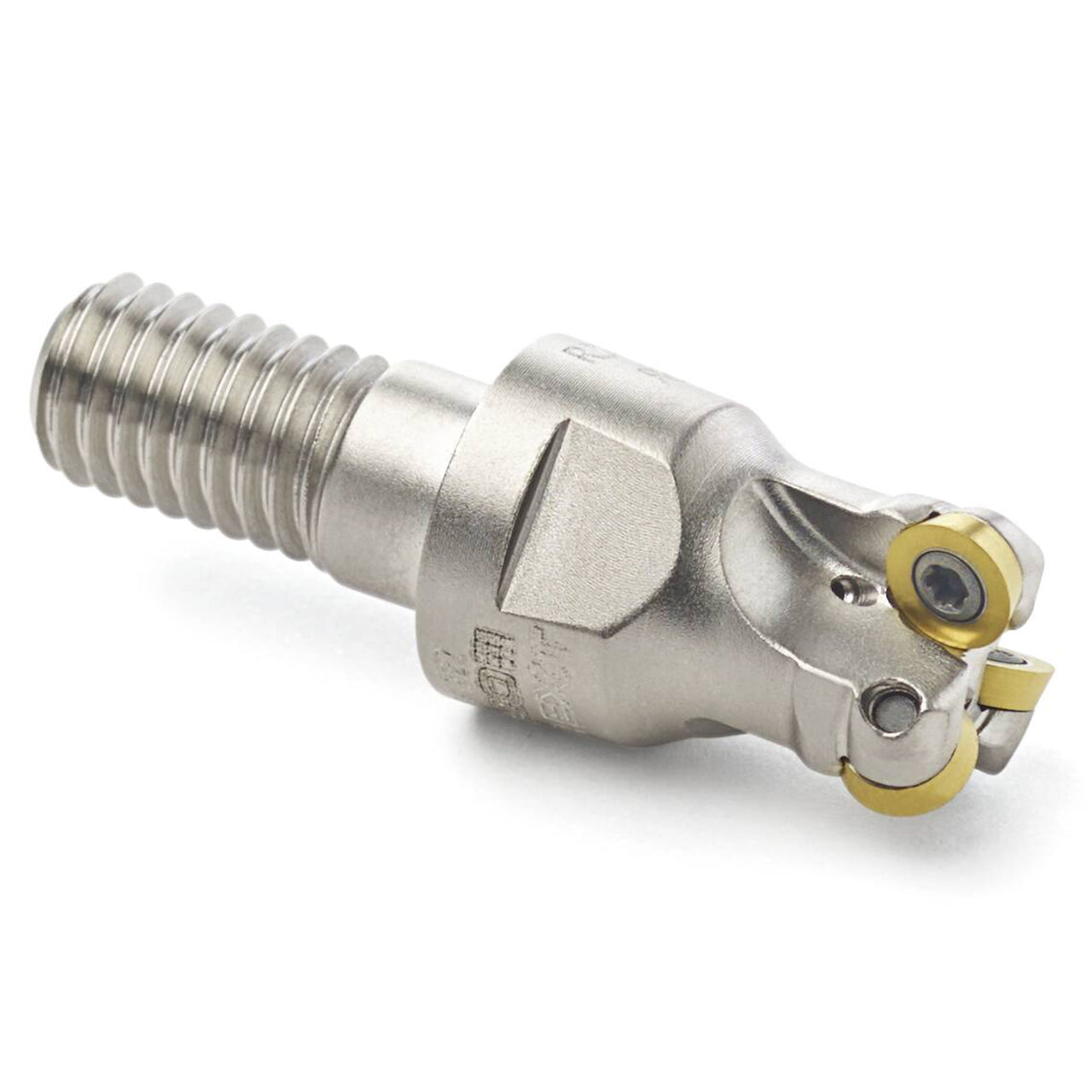

| Product Type | Indexable Copy End Mill |
