Product Specifications
| Manufacturer Part Number | 02641520 |
| Minimum Cutting Diameter Internal 3 (mm) | 195.00mm |
| Functional Length (mm) | 170.00mm |
| Head Length (mm) | 57.00mm |
| Height of Tool Holder Shank (mm) | 32.00mm |
| Shank Width (mm) | 25.00mm |
| Cutting Width (mm) | 8.00mm |
| Maximum Cutting Depth (mm) | 24.00mm |
| Tool Cutting Edge Angle (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction End (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction Side (Degree) | 90 Degree |
| Cutting Direction | Left Hand |
| Coolant Pressure | Bar |
| Coolant Supply Property | 1 |
| Shank Type | Square shank |

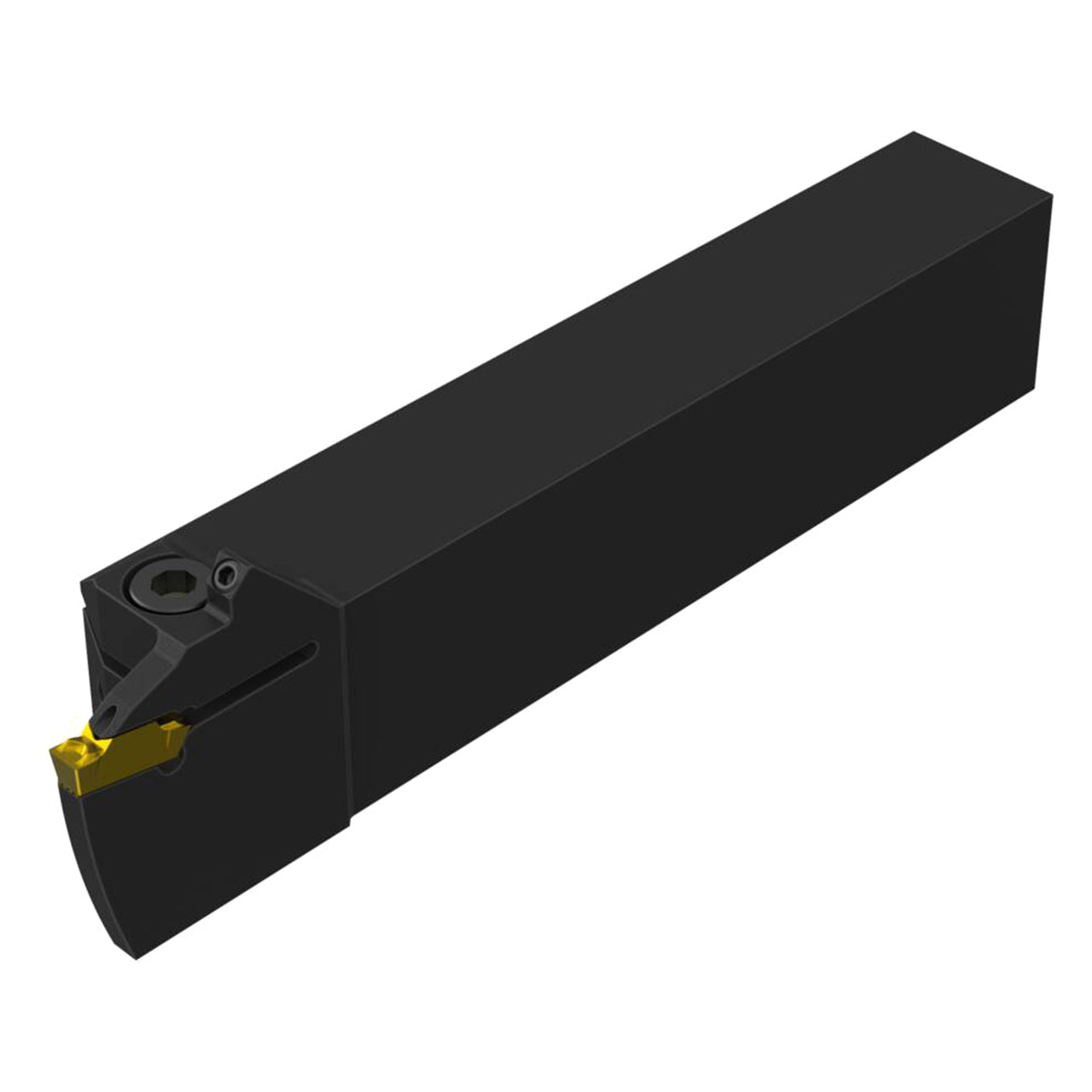

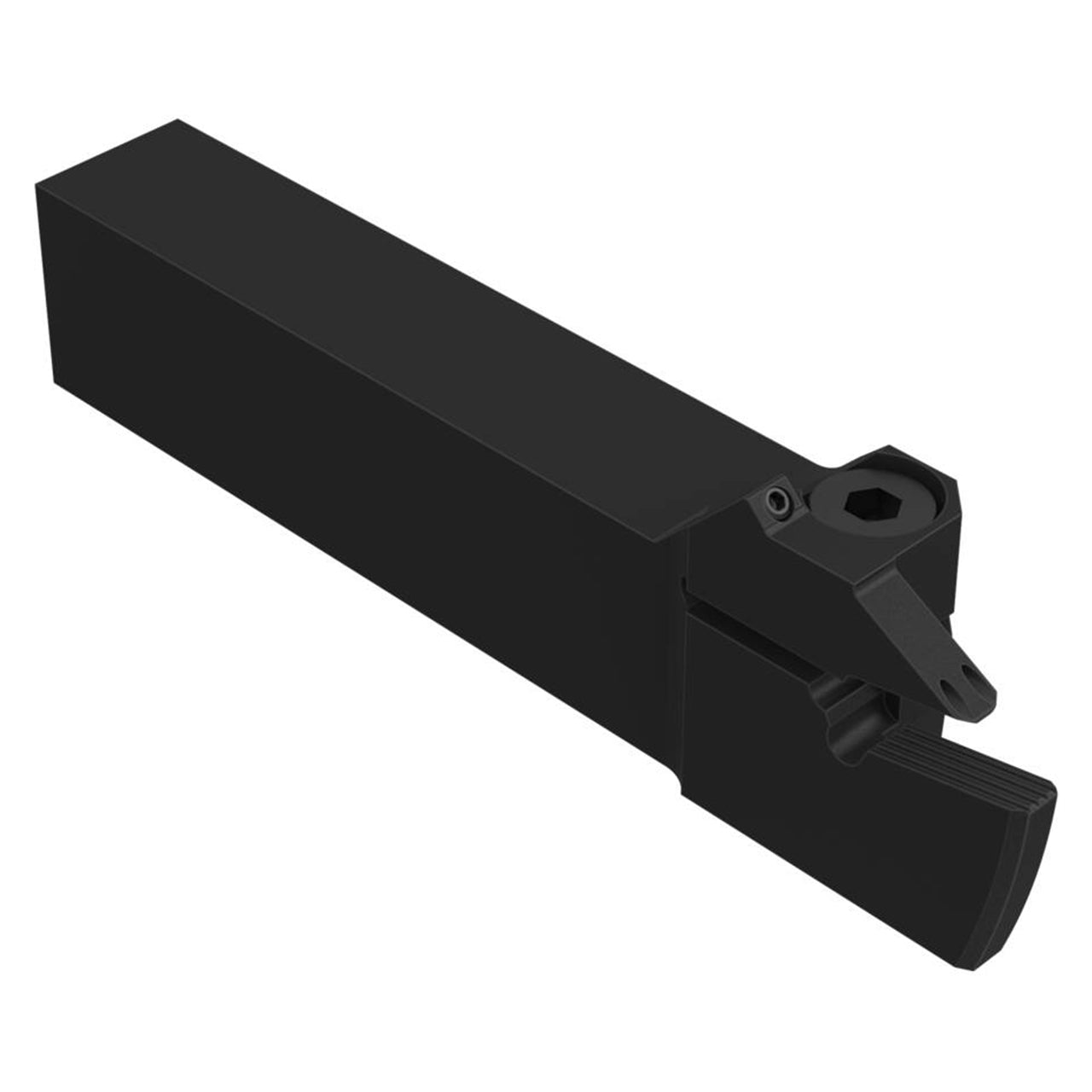

| Product Type | Indexable Grooving Toolholder |
