Product Specifications
| Manufacturer Part Number | 02629651 |
| Cutting Diameter (mm) | 315.00mm |
| Connection Bore Diameter (mm) | 60.00mm |
| Diameter Bolt Circle 1 (mm) | 101.60mm |
| Maximum Cutting Diameter (mm) | 325.00mm |
| Contact Surface Diameter Machine Side (mm) | 225.00mm |
| Functional Length (mm) | 80.00mm |
| Keyway Width (mm) | 25.70mm |
| Maximum Depth of Cut (mm) | 1.60mm |
| Depth of Key Way (mm) | 14.00mm |
| Tool Cutting Edge Angle (Degree) | 45 Degree |
| Tool Cutting Edge Angle In Feed Direction End (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction Side (Degree) | 45 Degree |
| Rake Radial Angle (Degree) | -5 Degree |
| Rake Orthogonal Angle (Degree) | 10 Degree |
| Cutting Direction | Right Hand |
| Maximum Rotational Speed (rpm) | 3700 rpm |
| Cutting Pitch Differential | 1 |
| Cutting Pitch Density | Super close |
| Pocket Seat Code of The Cutter | SE.X09T3 |
| Cutting Item Material Type | Aluminium |
| Shank Type | Arbor |
| Insert Shape Code | S |

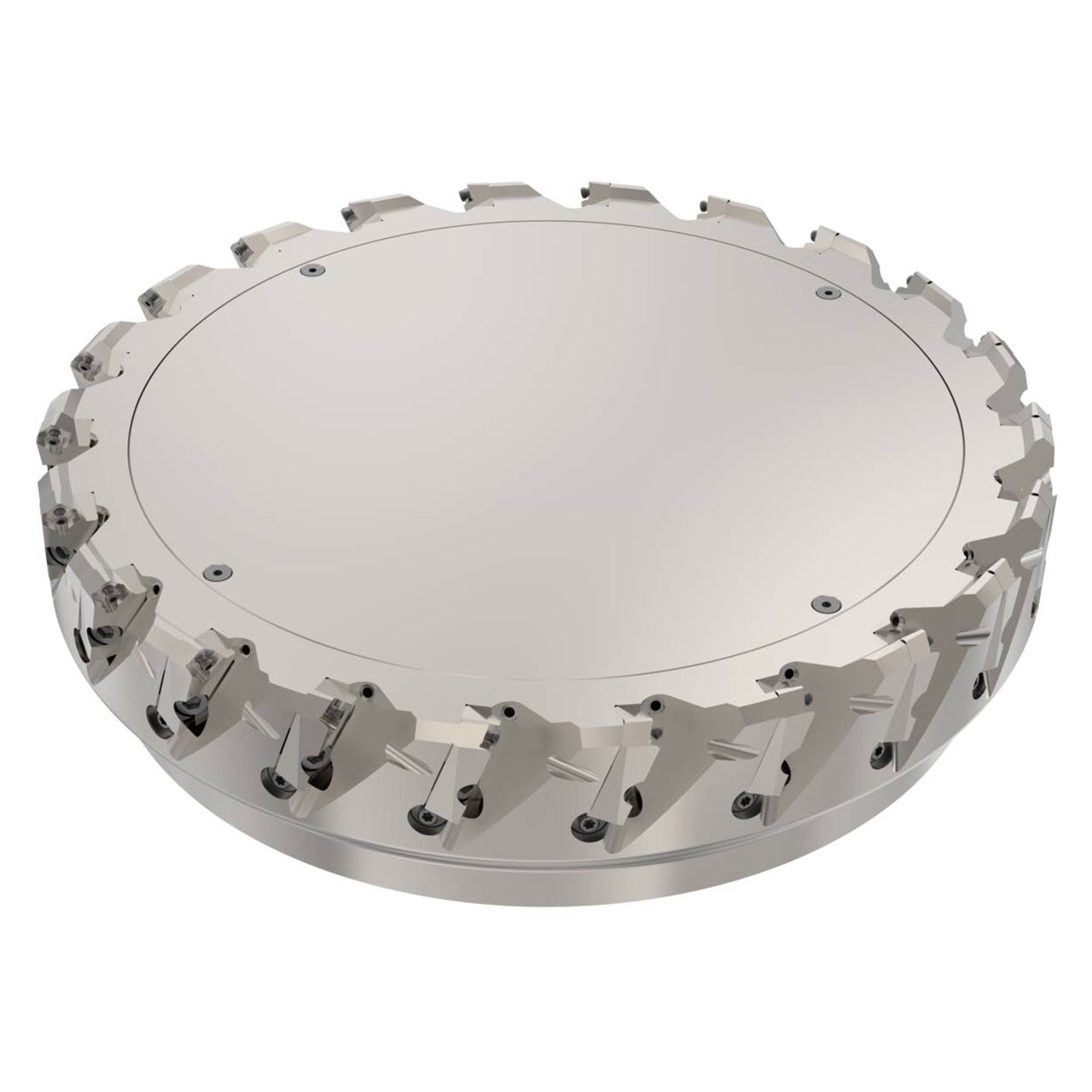

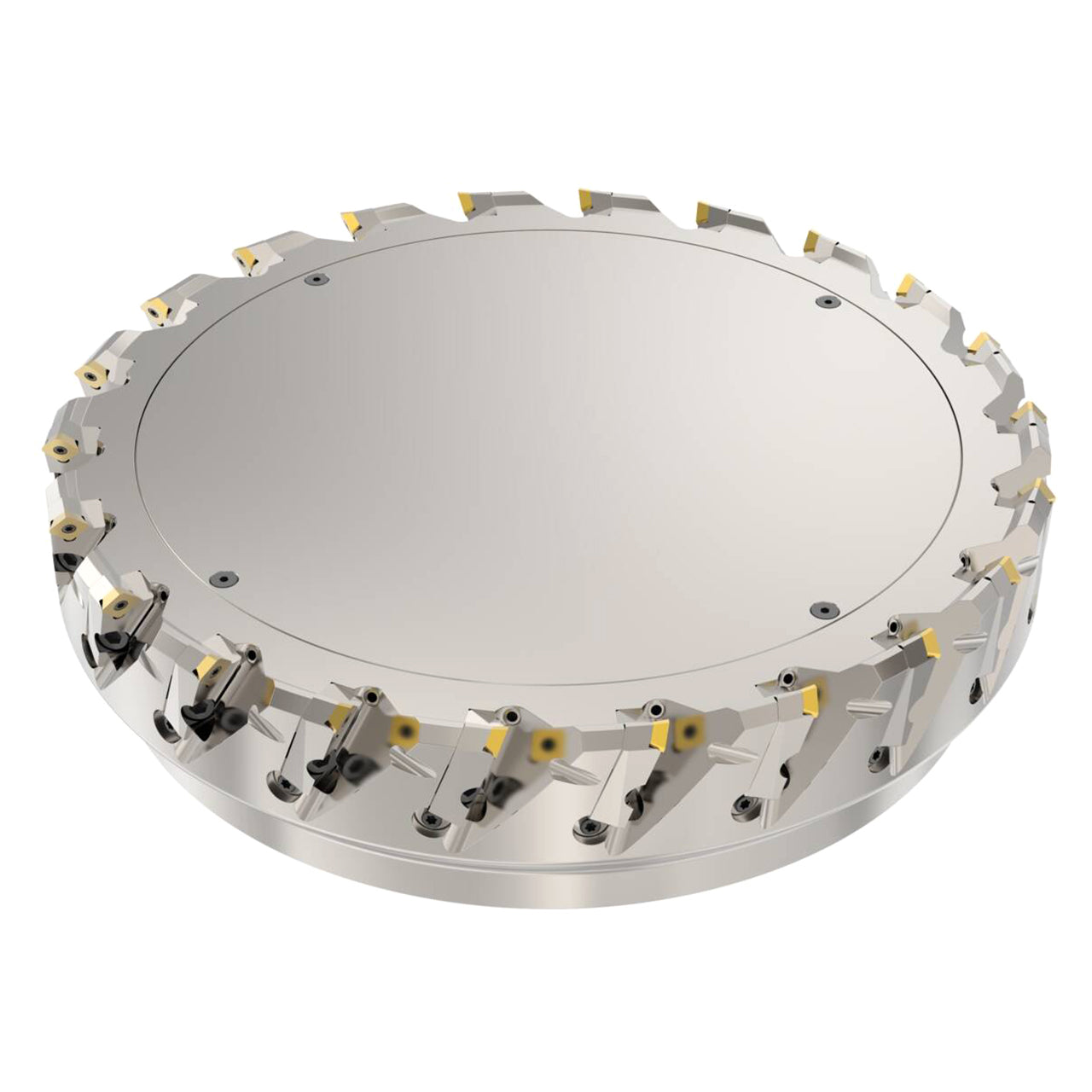

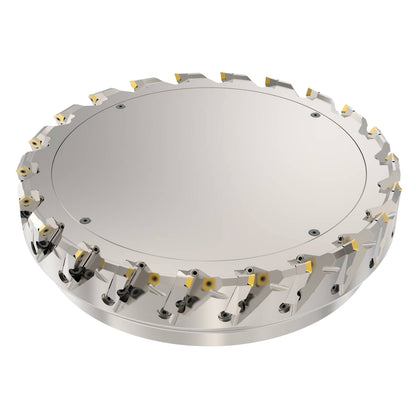

| Product Type | Indexable Chamfer & Angle Face Mill |
