Product Specifications

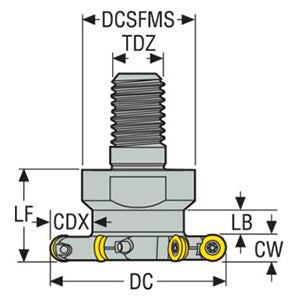

| Manufacturer Part Number | 02627984 |
| Cutting Diameter (mm) | 50.00mm |
| Contact Surface Diameter Machine Side (mm) | 30.00mm |
| Maximum Cutting Diameter (mm) | 50.00mm |
| Thread Diameter Size | M16 |
| Body Length (mm) | 8.00mm |
| Functional Length (mm) | 28.00mm |
| Maximum Depth of Cut (mm) | 7.00mm |
| Maximum Cutting Depth (mm) | 12.50mm |
| Connection Mounting Torque (Nm) | 80.0 Nm |
| Cutting Width (mm) | 7.00mm |
| Coolant Entry Style Code | 1 |
| Cutting Pitch Density | Normal |
| Coolant Supply Property | 1 |
| Coolant Exit Style Code | 2 |
| Cutting Direction | Right Hand |
| Tool Cutting Edge Angle (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction End (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction Side (Degree) | 90 Degree |
| Maximum Rotational Speed (rpm) | 25300 rpm |
| Shank Type | Combimaster |

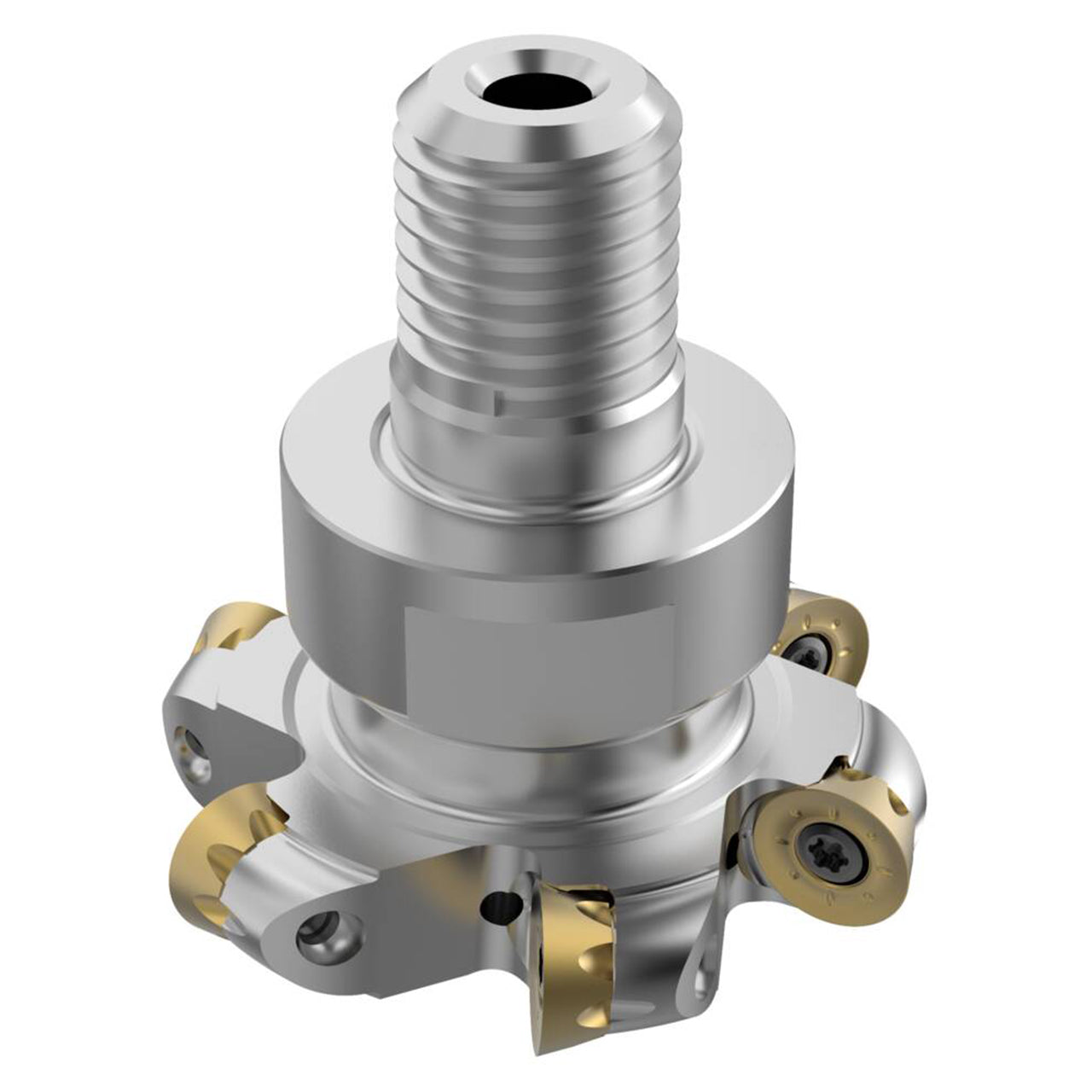

| Product Type | Indexable Slotting Cutter |
