Product Specifications
| Manufacturer Part Number | 02622922 |
| Minimum Cutting Diameter (mm) | 13.00mm |
| Connection Diameter Machine Side (mm) | 16.00mm |
| Maximum Cutting Diameter (mm) | 13.99mm |
| Flange Diameter (mm) | 20.00mm |
| Shank Diameter (mm) | 16.00mm |
| Shank Length (mm) | 48.00mm |
| Usable Length (mm) | 42.00mm |
| Overall Length (mm) | 111.90mm |
| Insert Width (Decimal Inch) | 0.314" |
| Insert Width (mm) | 7.98mm |
| Shank Type | Cylindrical |
| Coolant Entry Style Code | 1 |
| Coolant Supply Property | 1 |
| Coolant Exit Style Code | 4 |

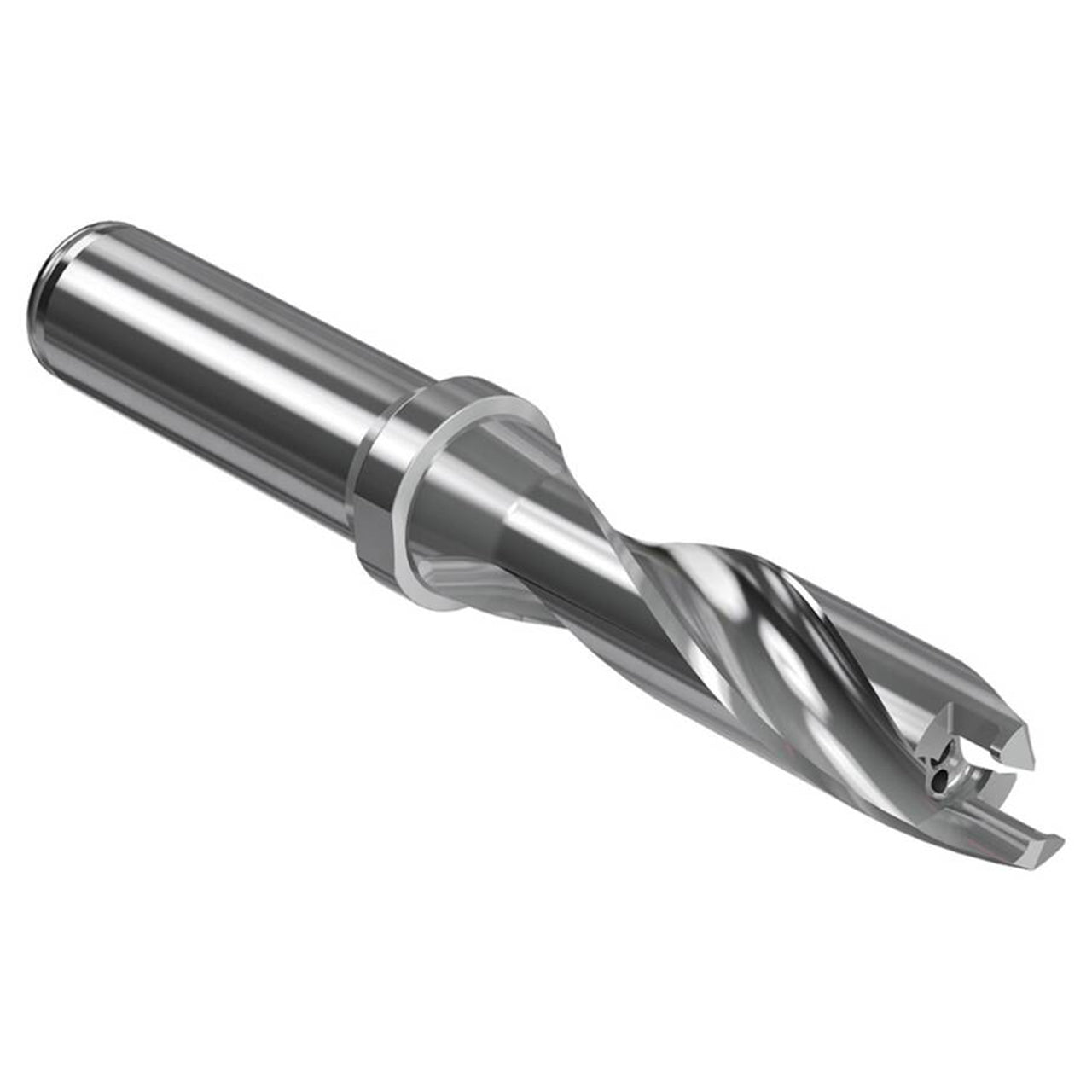

| Product Type | Replaceable-Tip Drill |
