Product Specifications

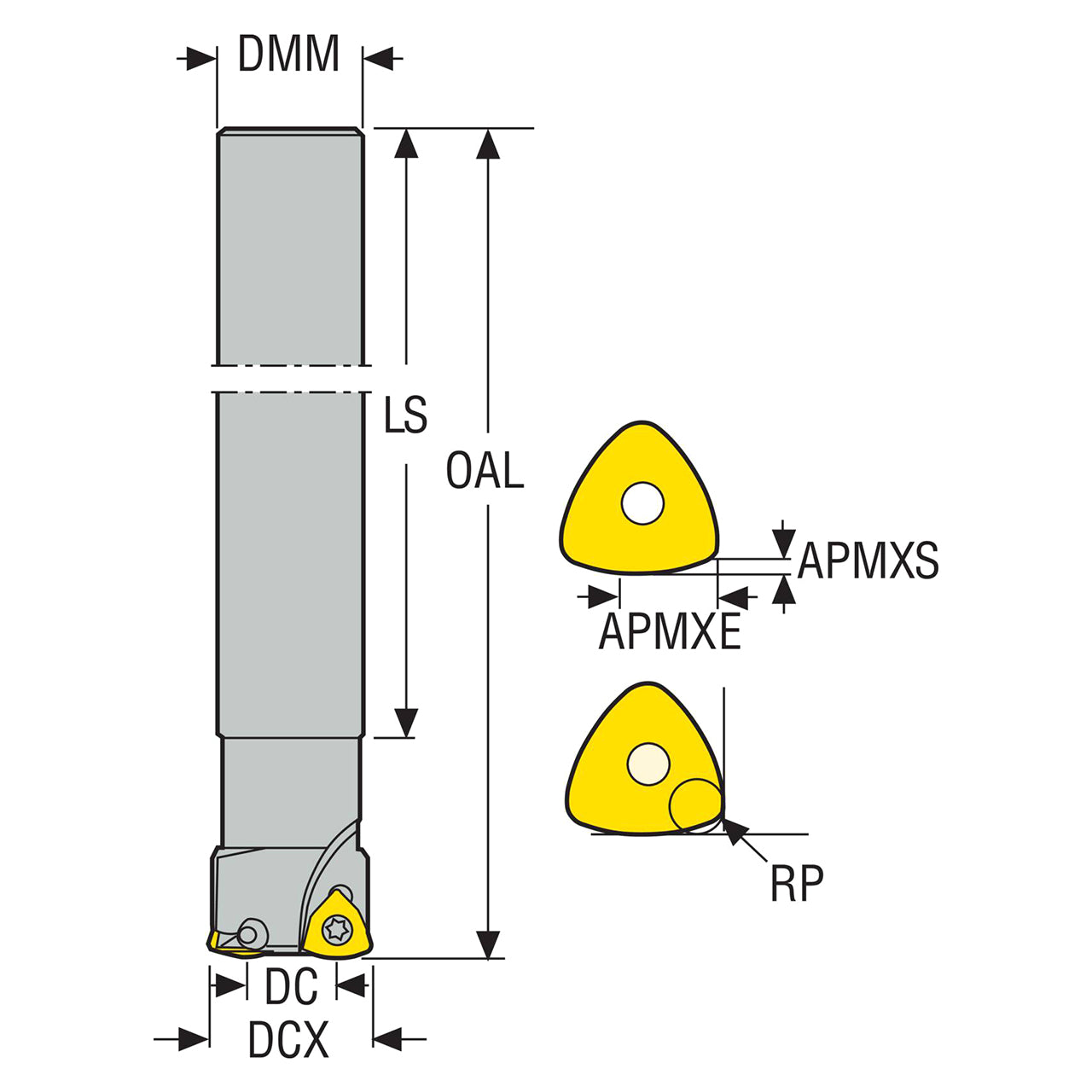

| Manufacturer Part Number | 02616325 |
| Cutting Diameter (mm) | 21.16mm |
| Connection Diameter Machine Side (mm) | 32.00mm |
| Maximum Cutting Diameter (mm) | 32.00mm |
| Shank Diameter (mm) | 32.00mm |
| Maximum Helical Interpolation Hole Diameter (mm) | 62.00mm |
| Minimum Helical Interpolation Hole Diameter (mm) | 53.16mm |
| Protruding Length (mm) | 135.00mm |
| Shank Length (mm) | 155.00mm |
| Overall Length (mm) | 195.00mm |
| Maximum Depth of Cut (mm) | 1.00mm |
| Programming Radius (mm) | 1.74mm |
| Uncut Thickness (mm) | 0.61 |
| Coolant Entry Style Code | 1 |
| Cutting Pitch Density | Close |
| Coolant Supply Property | 1 |
| Coolant Exit Style Code | 3 |
| Rake Radial Angle (Degree) | -3 Degree |
| Rake Radial Angle (Degree) | -3 Degree |
| Rake Orthogonal Angle (Degree) | -3 Degree |
| Axial Rake Angle (Degree) | 6 Degree |
| Maximum Ramping Angle (Degree) | 3.67 Degree |
| Maximum Rotational Speed (rpm) | 19700 rpm |
| Insert Shape Code | 218.19 |
| Shank Type | Cylindrical |

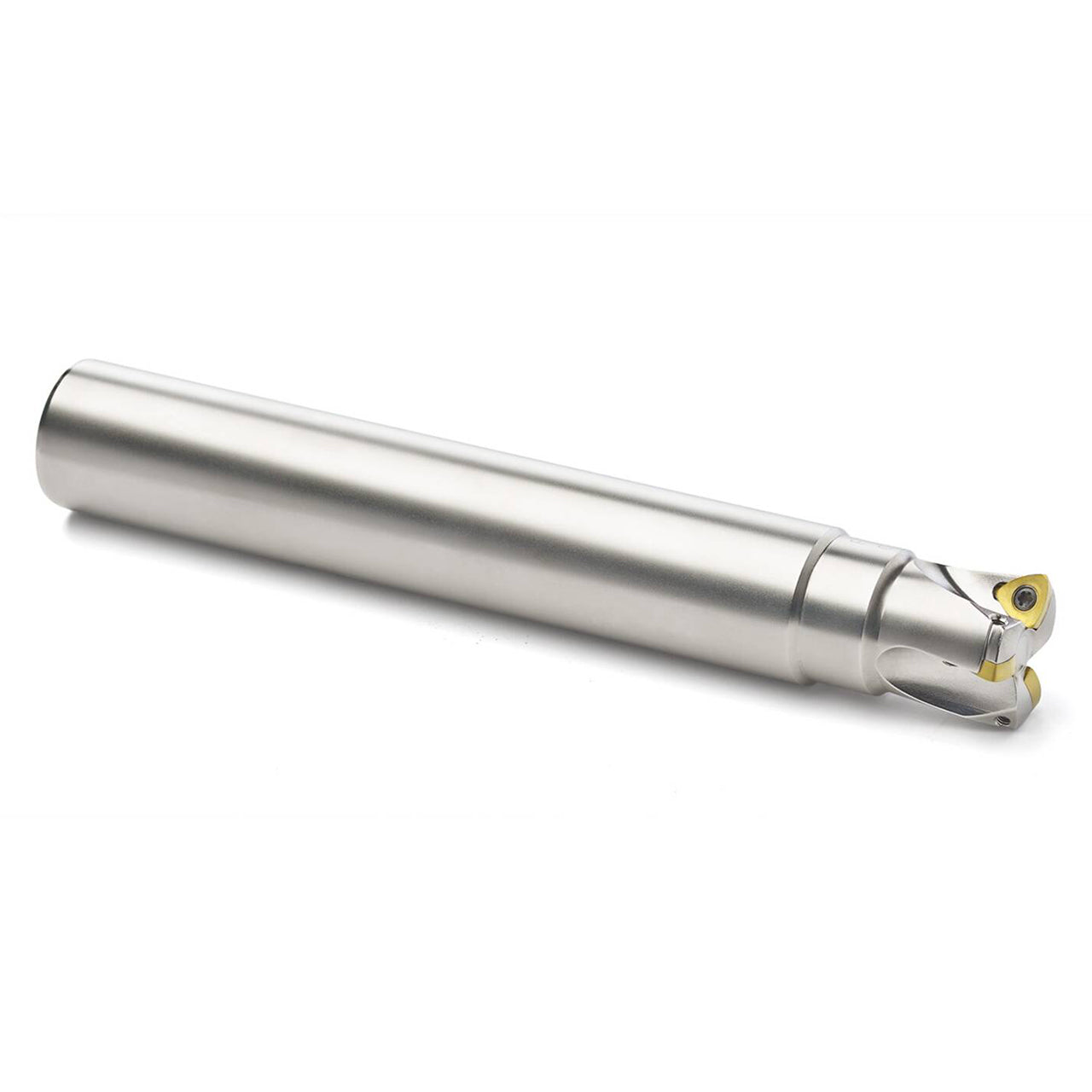

| Product Type | High Feed Trigon Shape Insert |
