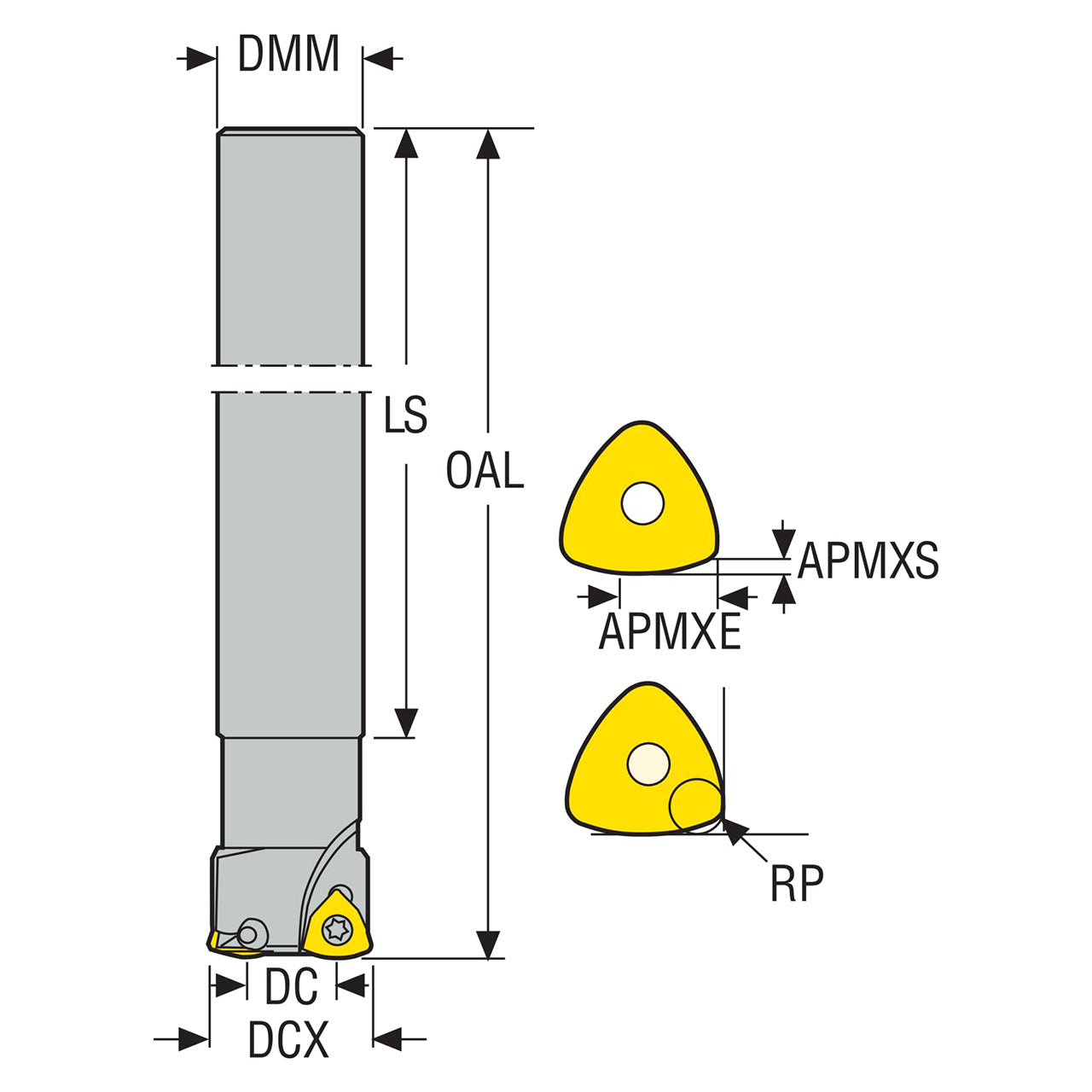

Product Specifications
| Manufacturer Part Number | 02616308 |
| Cutting Diameter (mm) | 16.46mm |
| Connection Diameter Machine Side (mm) | 20.00mm |
| Maximum Cutting Diameter (mm) | 25.00mm |
| Shank Diameter (mm) | 20.00mm |
| Maximum Helical Interpolation Hole Diameter (mm) | 48.00mm |
| Minimum Helical Interpolation Hole Diameter (mm) | 41.46mm |
| Protruding Length (mm) | 120.00mm |
| Shank Length (mm) | 140.00mm |
| Overall Length (mm) | 170.00mm |
| Maximum Depth of Cut (mm) | 0.74mm |
| Programming Radius (mm) | 1.47mm |
| Uncut Thickness (mm) | 0.45 |
| Coolant Entry Style Code | 1 |
| Cutting Pitch Density | Normal |
| Coolant Supply Property | 1 |
| Coolant Exit Style Code | 3 |
| Rake Radial Angle (Degree) | -3 Degree |
| Rake Radial Angle (Degree) | -3 Degree |
| Rake Orthogonal Angle (Degree) | -3 Degree |
| Axial Rake Angle (Degree) | 6 Degree |
| Maximum Ramping Angle (Degree) | 3.48 Degree |
| Maximum Rotational Speed (rpm) | 29100 rpm |
| Insert Shape Code | 218.19 |
| Shank Type | Cylindrical |

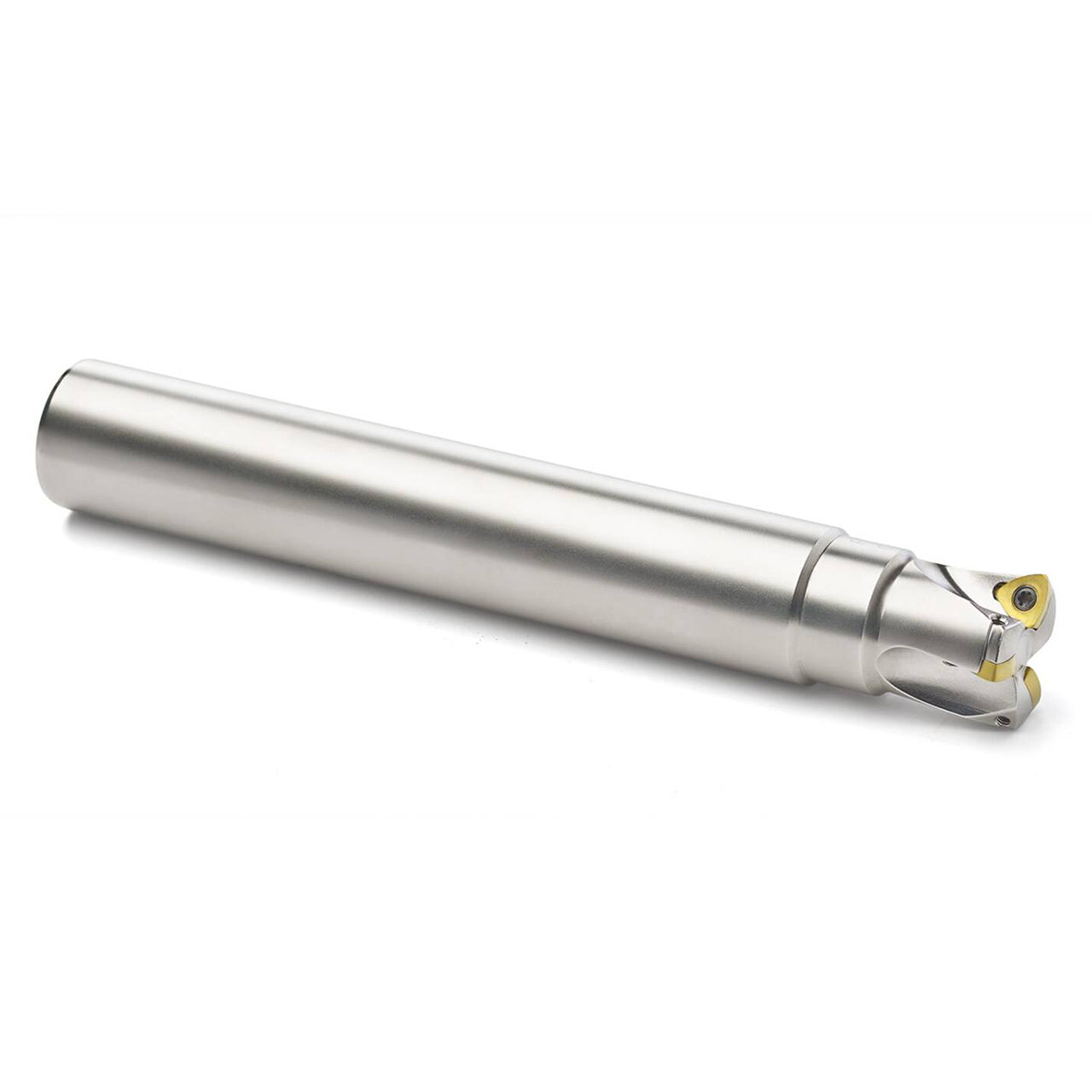

| Product Type | High Feed Trigon Shape Insert |
