Product Specifications
| Manufacturer Part Number | 02611345 |
| Cutting Diameter (Decimal Inch) | 3.000" |
| Cutting Diameter (mm) | 76.20mm |
| Connection Bore Diameter (Decimal Inch) | 1.000" |
| Connection Bore Diameter (mm) | 25.40mm |
| Contact Surface Diameter Machine Side (Decimal Inch) | 2.441" |
| Contact Surface Diameter Machine Side (mm) | 62.00mm |
| Functional Length (Decimal Inch) | 2.480" |
| Functional Length (mm) | 63.00mm |
| Maximum Depth of Cut (mm) | 3.00mm |
| Maximum Depth of Cut (Decimal Inch) | 0.118" |
| Depth of Key Way (Decimal Inch) | 0.224" |
| Depth of Key Way (mm) | 5.68mm |
| Keyway Width (Decimal Inch) | 0.384" |
| Keyway Width (mm) | 9.75mm |
| Rake Radial Angle (Degree) | -6 Degree |
| Rake Radial Angle (Degree) | -6 Degree |
| Rake Orthogonal Angle (Degree) | -6 Degree |
| Axial Rake Angle (Degree) | -6 Degree |
| Tool Cutting Edge Angle (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction End (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction Side (Degree) | 90 Degree |
| Maximum Rotational Speed (rpm) | 9600 rpm |
| Shank Type | Arbor |

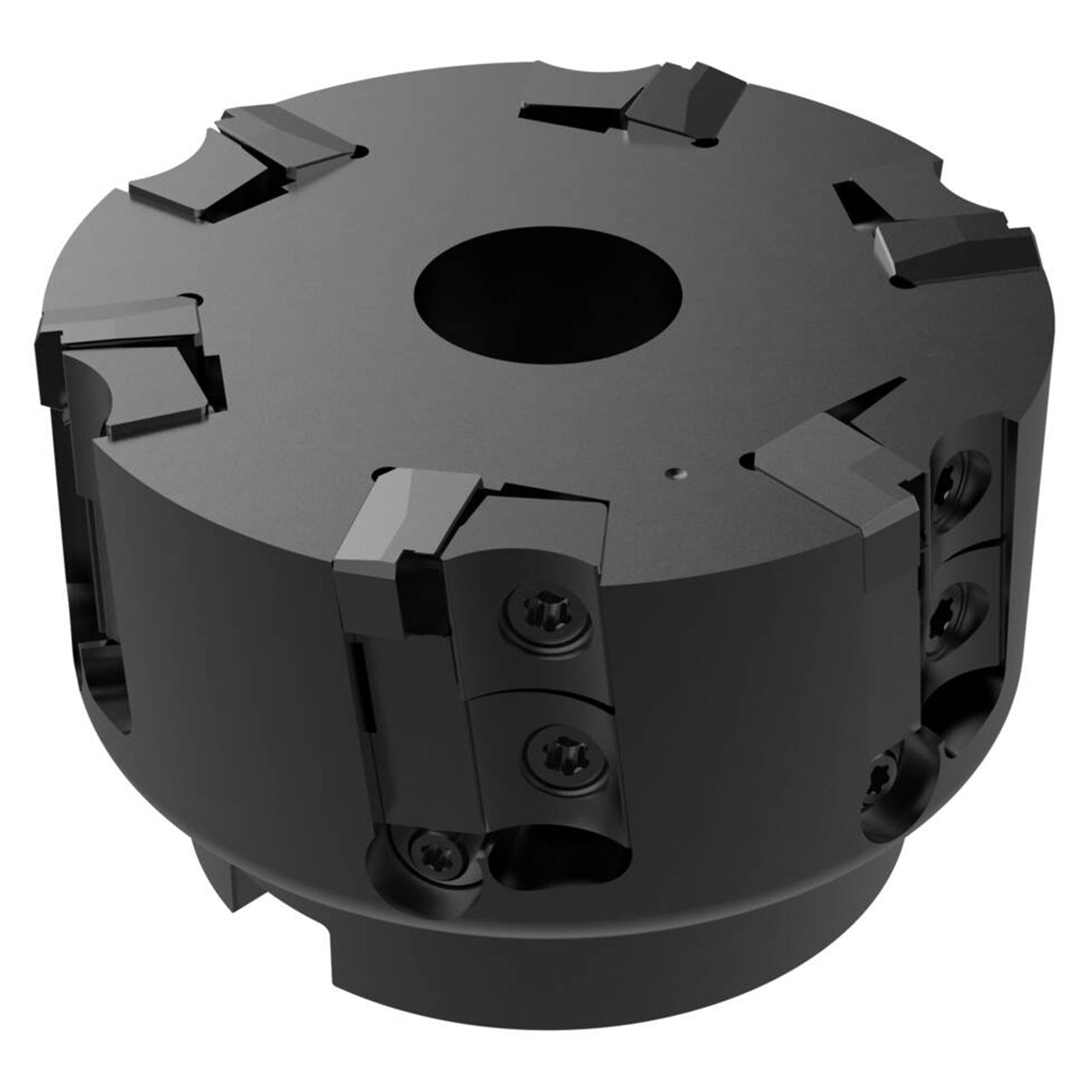

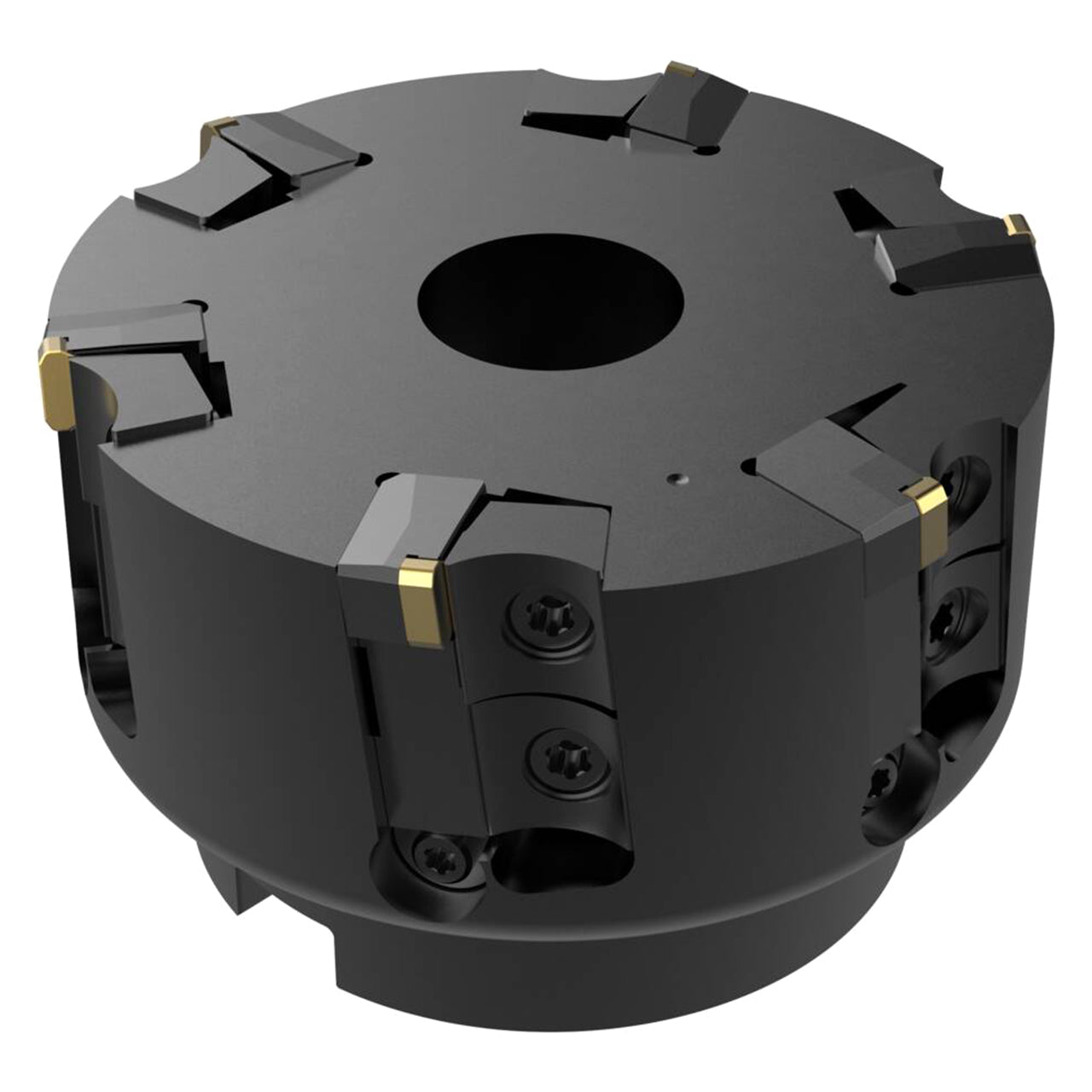

| Product Type | Face Mill for Triangle Insert |
