Product Specifications

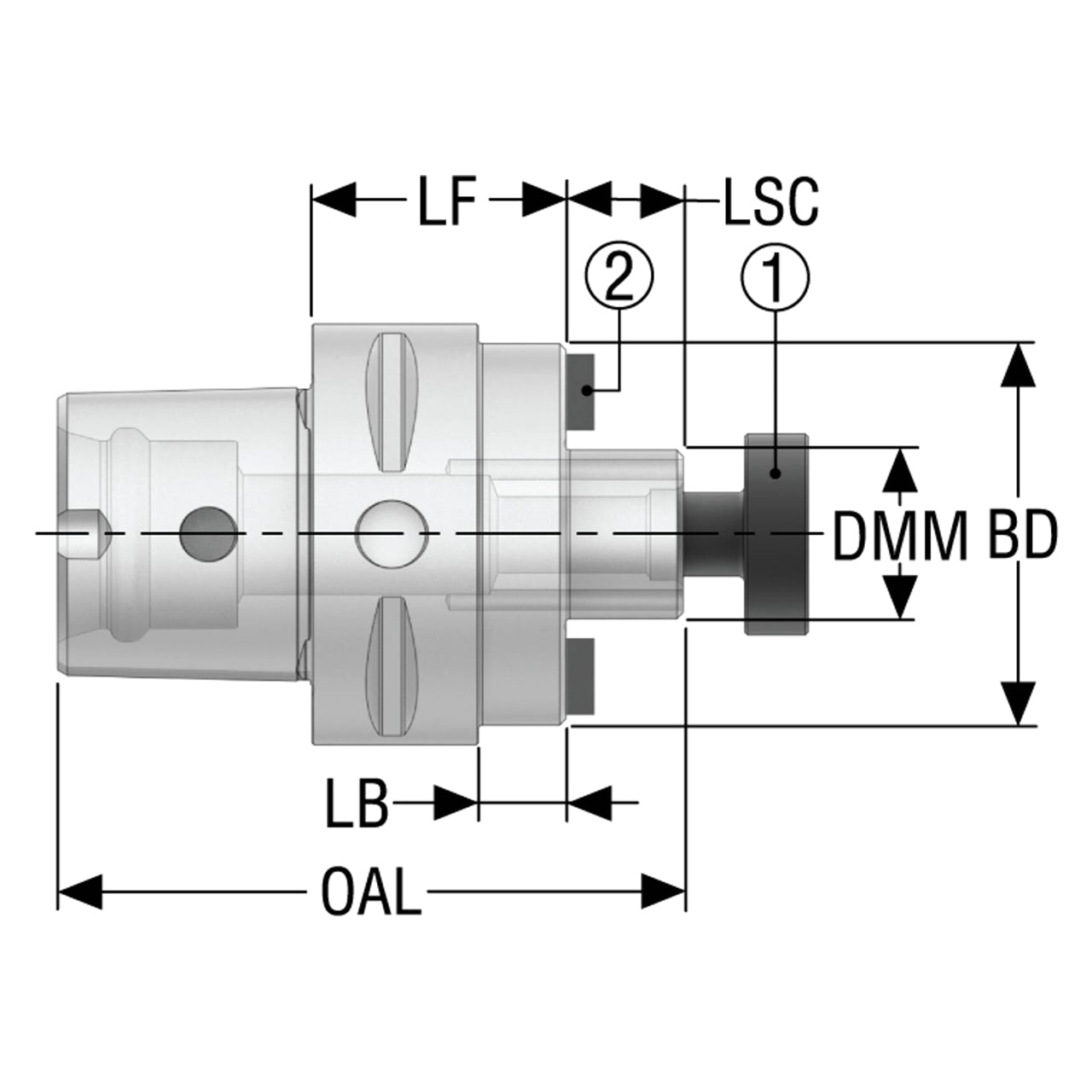

| Manufacturer Part Number | 02610378 |
| Body Diameter (Decimal Inch) | 1.750" |
| Body Diameter (mm) | 44.45mm |
| Connection Diameter Workpiece Side (Decimal Inch) | 0.750" |
| Connection Diameter Workpiece Side (mm) | 19.05mm |
| Shank Diameter (Decimal Inch) | 0.750" |
| Shank Diameter (mm) | 19.05mm |
| Body Length (Decimal Inch) | 0.516" |
| Body Length (mm) | 13.10mm |
| Functional Length (Decimal Inch) | 1.500" |
| Functional Length (mm) | 38.10mm |
| Clamping Length (Decimal Inch) | 0.689" |
| Clamping Length (mm) | 17.50mm |
| Overall Length (Decimal Inch) | 3.685" |
| Overall Length (mm) | 93.60mm |
| Data Chip Provision | 1 |

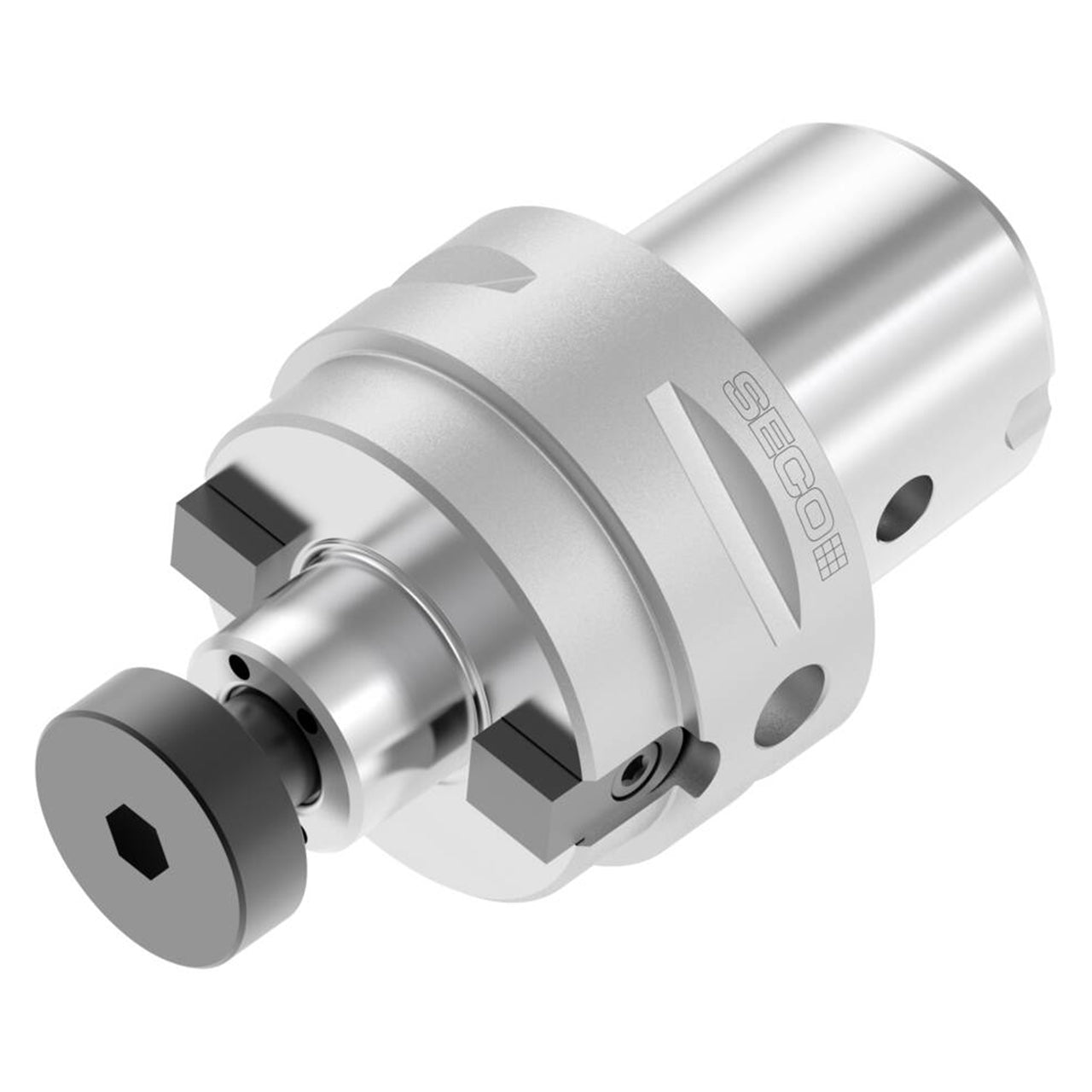

| Product Type | Shell Mill Holder |
