Product Specifications
| Manufacturer Part Number | 02610062 |
| Fixing Hole Diameter (Decimal Inch) | 0.217" |
| Fixing Hole Diameter (mm) | 5.50mm |
| Inscribed Circle Diameter (Decimal Inch) | 0.500" |
| Inscribed Circle Diameter (mm) | 12.70mm |
| Cutting Edge Effective Length (Decimal Inch) | 0.409" |
| Cutting Edge Effective Length (mm) | 10.40mm |
| Corner Radius (Decimal Inch) | 0.032" |
| Corner Radius (mm) | 0.80mm |
| Insert Thickness (Decimal Inch) | 0.187" |
| Insert Thickness (mm) | 4.76mm |
| Clearance Angle Major (Degree) | 7 Degree |
| Cutting Edge Count | 2 |
| Insert Size And Shape | CC1204 |
| Insert Included Angle (Degree) | 80 Degree |
| Insert Hand | Left Hand |
| Material | Carbide |

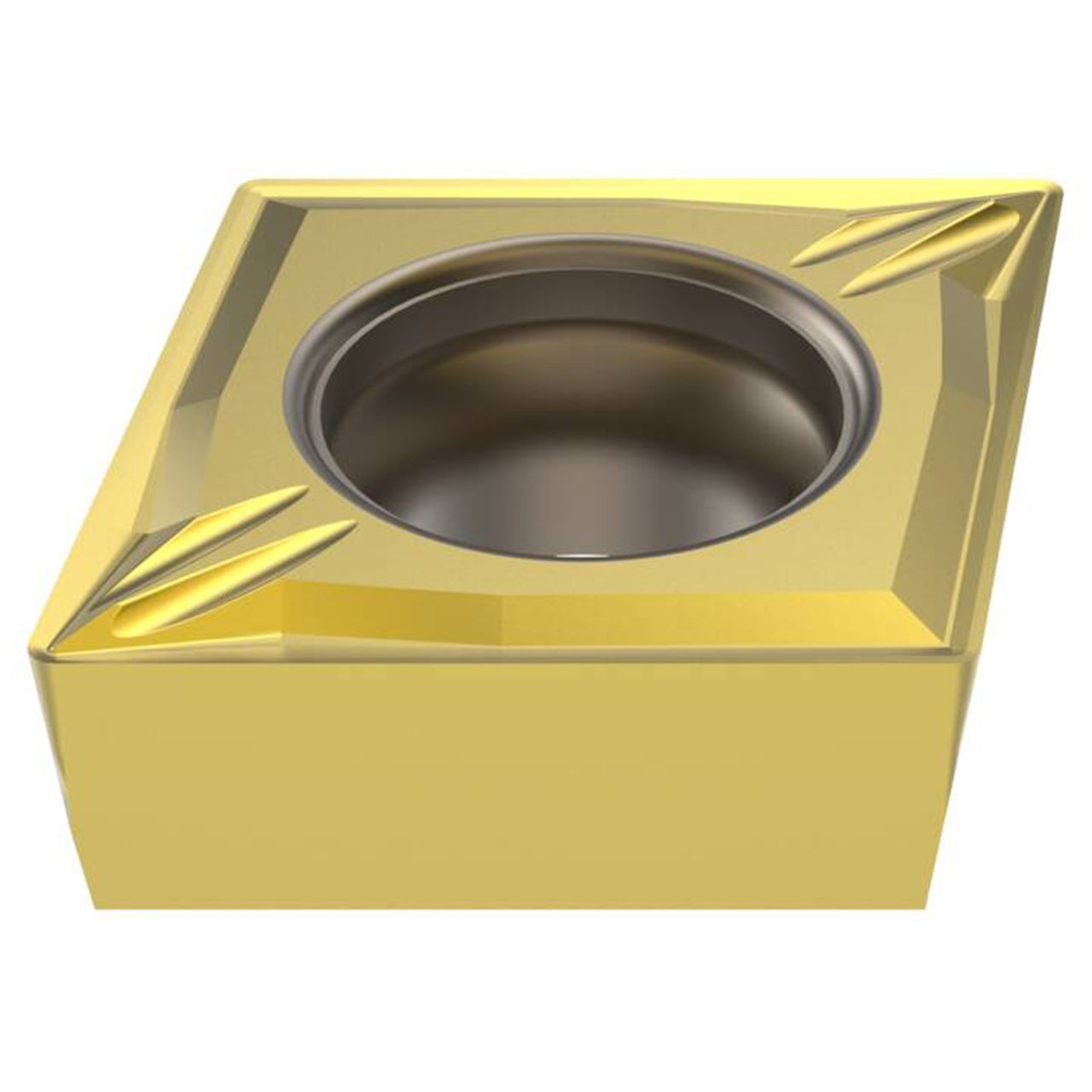

| Product Type | Turning Insert |
