Product Specifications
| Manufacturer Part Number | 02602088 |
| Cutting Diameter (Decimal Inch) | 2.750" |
| Cutting Diameter (mm) | 69.85mm |
| Minimum Cutting Diameter Internal (Decimal Inch) | 2.750" |
| Minimum Cutting Diameter Internal (mm) | 69.85mm |
| Maximum Cutting Diameter Internal (Decimal Inch) | 2.750" |
| Connection Diameter Machine Side (Decimal Inch) | 1.500" |
| Connection Diameter Machine Side (mm) | 38.10mm |
| Flange Diameter (Decimal Inch) | 3.110" |
| Flange Diameter (mm) | 78.99mm |
| Shank Diameter (Decimal Inch) | 1.500" |
| Shank Diameter (mm) | 38.10mm |
| Shank Length (Decimal Inch) | 4.500" |
| Shank Length (mm) | 114.30mm |
| Usable Length (Decimal Inch) | 6.880" |
| Usable Length (mm) | 174.75mm |
| Overall Length (Decimal Inch) | 13.400" |
| Overall Length (mm) | 340.36mm |
| Insert Width (Decimal Inch) | 0.313" |
| Insert Width (mm) | 7.94mm |
| Coolant Entry Style Code | 3 |
| Coolant Supply Property | 1 |
| Coolant Exit Style Code | 4 |
| Tool Cutting Edge Angle (Degree) | 88 Degree |

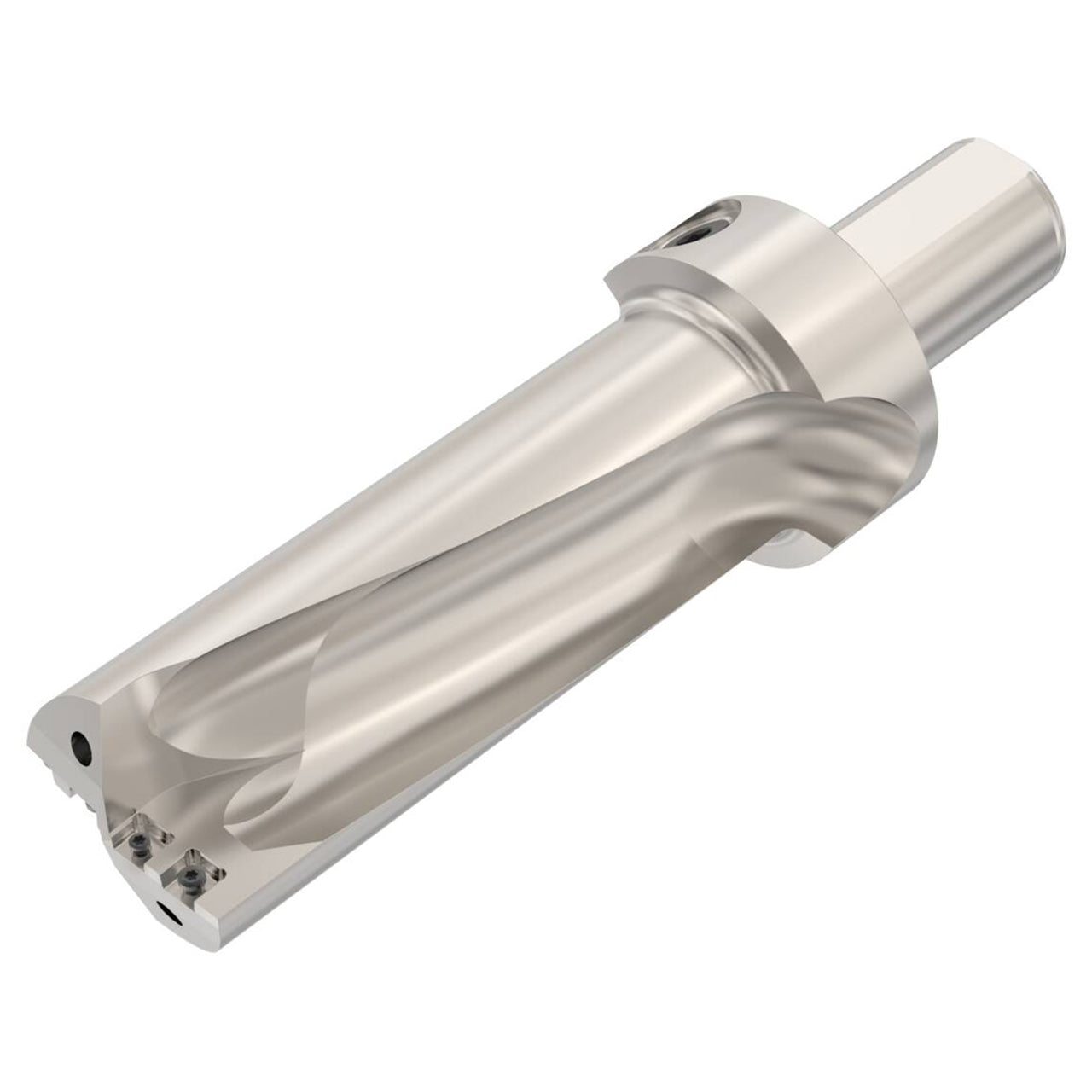

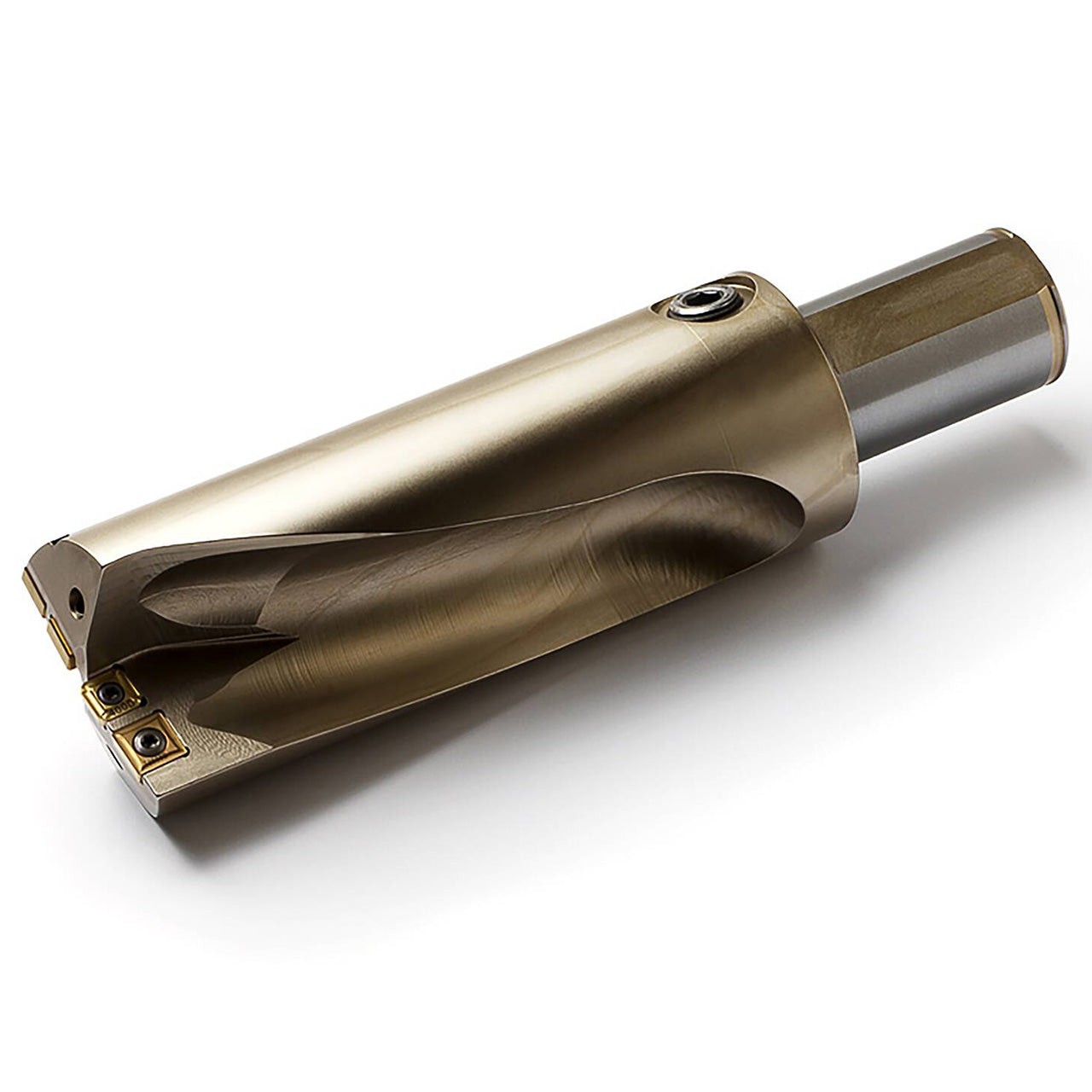

| Product Type | Indexable Insert Drill |
