Product Specifications
| Manufacturer Part Number | 02595783 |
| Cutting Diameter (mm) | 27.00mm |
| Minimum Cutting Diameter Internal (mm) | 26.80mm |
| Connection Diameter Machine Side (mm) | 32.00mm |
| Flange Diameter (mm) | 50.00mm |
| Shank Diameter (mm) | 32.00mm |
| Shank Length (mm) | 60.00mm |
| Usable Length (mm) | 54.00mm |
| Overall Length (mm) | 149.00mm |
| Insert Width (Decimal Inch) | 0.323" |
| Insert Width (mm) | 8.20mm |
| Adjustment Limit Minimum (mm) | 0.10mm |
| Adjustment Limit Maximum (mm) | 3.00mm |
| Coolant Entry Style Code | 3 |
| Coolant Supply Property | 1 |
| Coolant Exit Style Code | 4 |
| Tool Cutting Edge Angle (Degree) | 87.5 Degree |

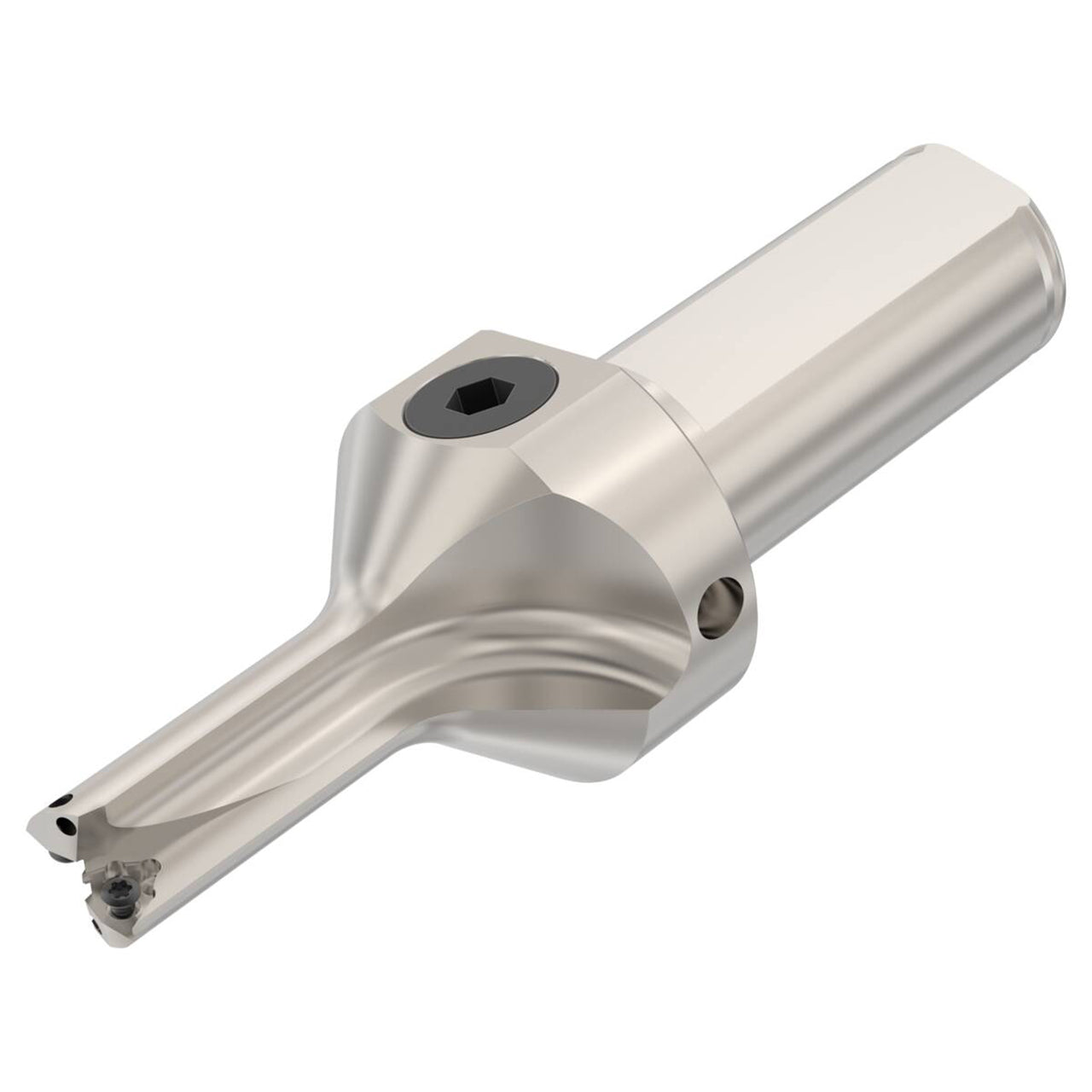

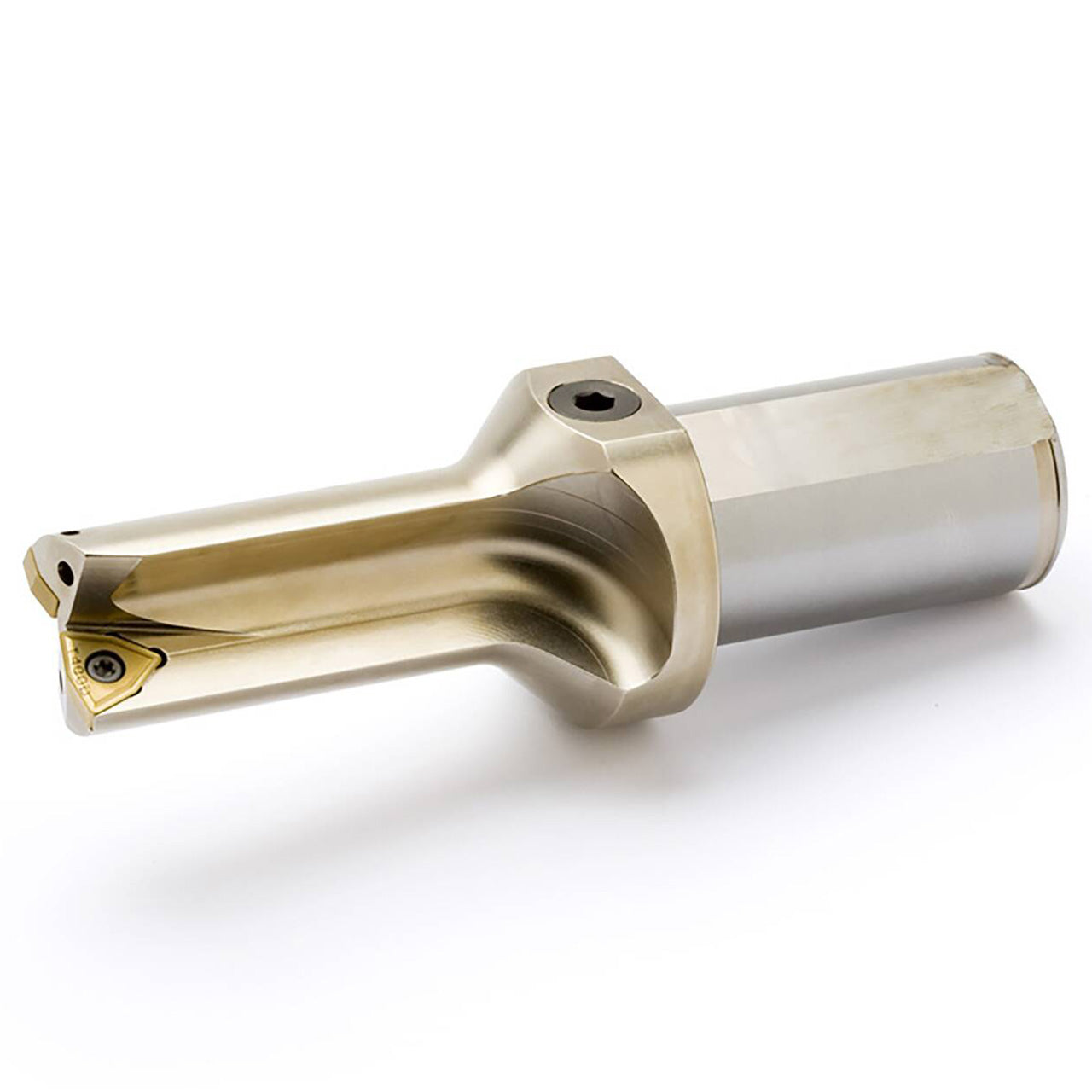

| Product Type | Indexable Insert Drill |
