Product Specifications
| Manufacturer Part Number | 02595019 |
| Body Diameter (Decimal Inch) | 0.984" |
| Body Diameter (mm) | 25.00mm |
| Minimum Cutting Diameter Internal (Decimal Inch) | 0.079" |
| Minimum Cutting Diameter Internal (mm) | 2.00mm |
| Minimum Cutting Diameter (Decimal Inch) | 2.087" |
| Minimum Cutting Diameter (mm) | 53.00mm |
| Maximum Cutting Diameter (Decimal Inch) | 4.252" |
| Maximum Cutting Diameter (mm) | 108.00mm |
| Maximum Body Diameter (mm) | 16.00mm |
| Body Length (Decimal Inch) | 2.303" |
| Body Length (mm) | 58.50mm |
| Body Length 1 (Decimal Inch) | 1.909" |
| Body Length 1 (mm) | 48.50mm |
| Body Length 2 (Decimal Inch) | 2.303" |
| Body Length 2 (mm) | 58.50mm |
| Body Length 3 (Decimal Inch) | 1.969" |
| Body Length 3 (mm) | 50.00mm |
| Functional Width (Decimal Inch) | 0.158" |
| Functional Width (mm) | 4.00mm |

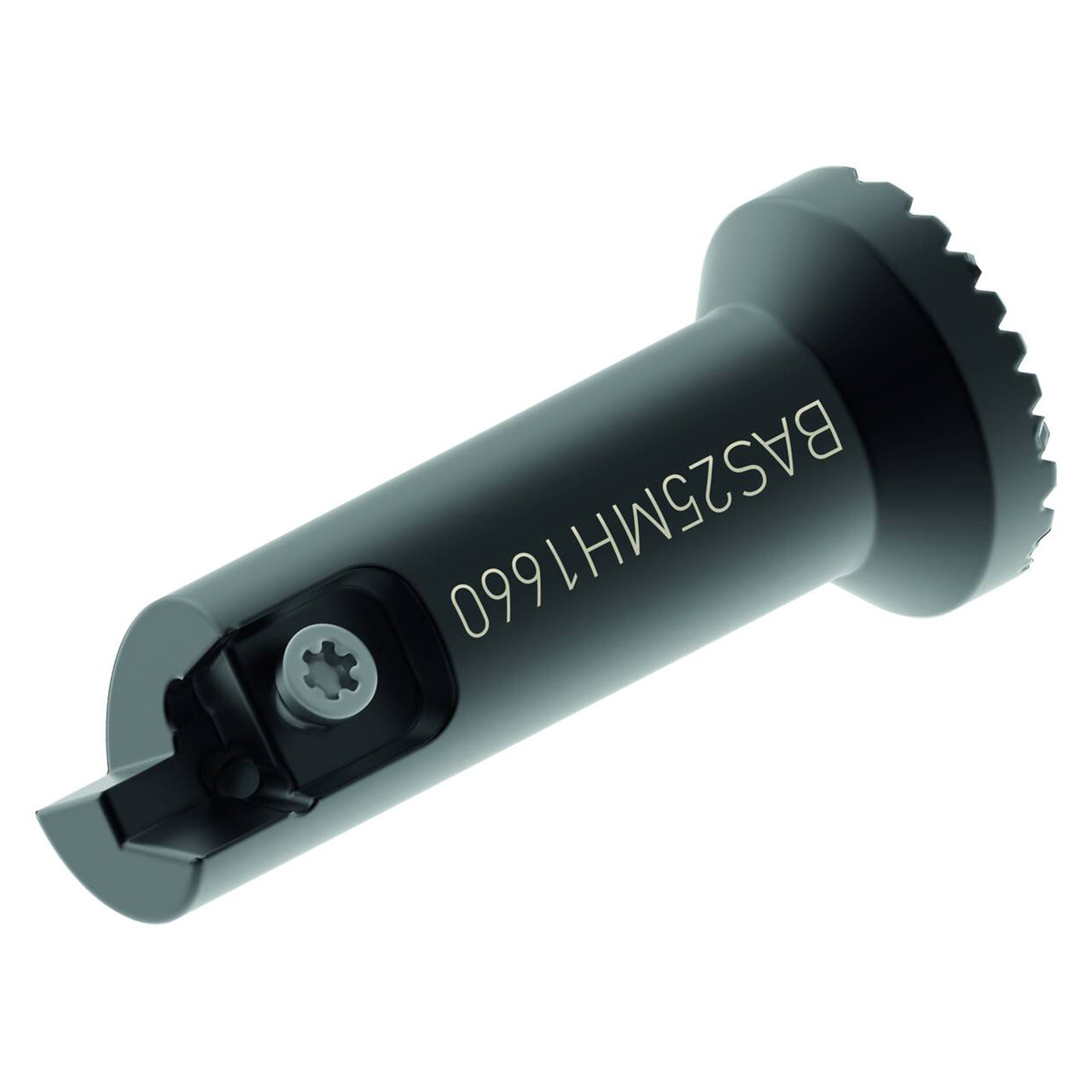

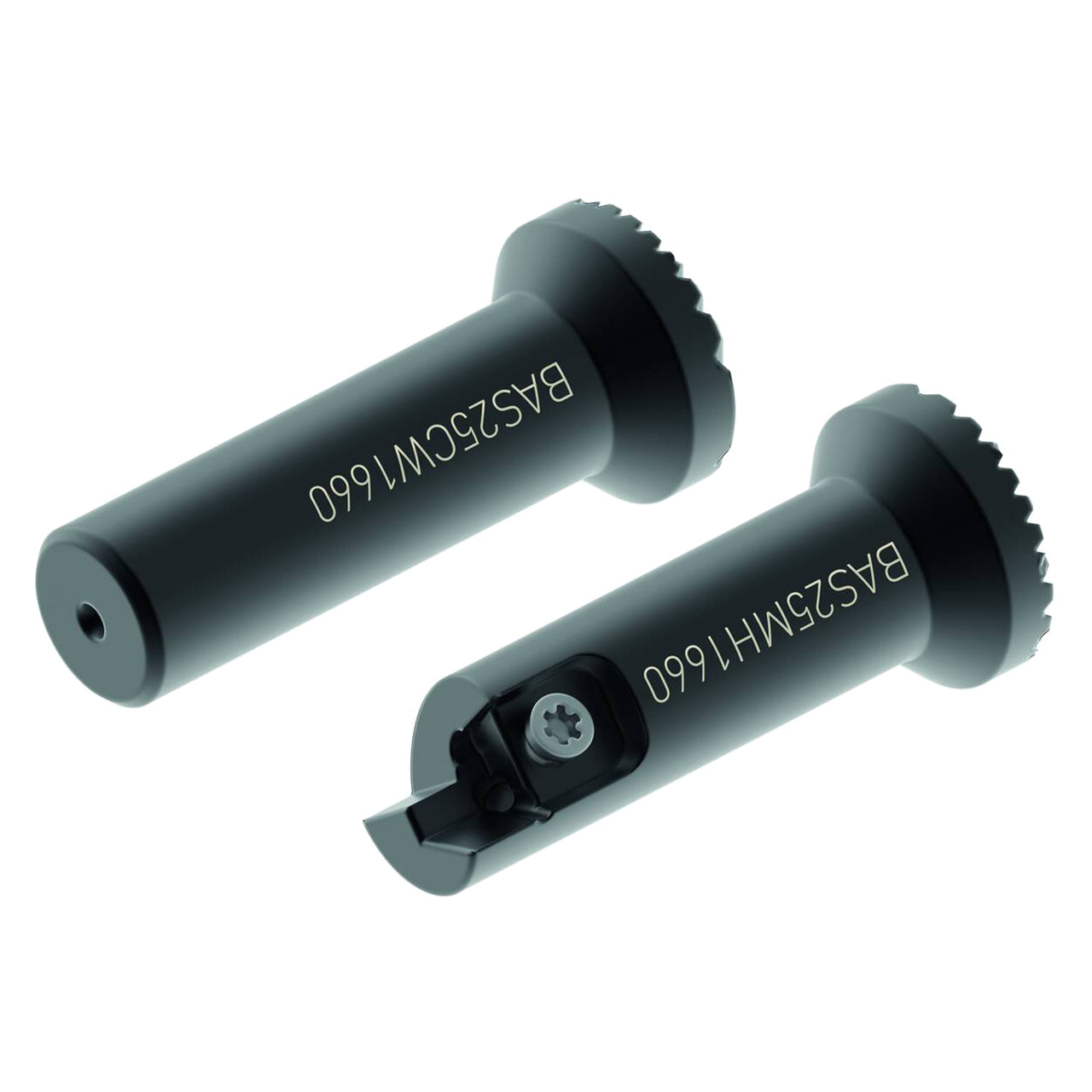

| Product Type | Axial Fine Boring Holder |
