Product Specifications
| Manufacturer Part Number | 02594966 |
| Minimum Cutting Diameter (Decimal Inch) | 0.709" |
| Minimum Cutting Diameter (mm) | 18.00mm |
| Connection Diameter Machine Side (Decimal Inch) | 0.630" |
| Connection Diameter Machine Side (mm) | 16.00mm |
| Maximum Cutting Diameter (Decimal Inch) | 1.299" |
| Maximum Cutting Diameter (mm) | 33.00mm |
| Shank Diameter (Decimal Inch) | 0.630" |
| Shank Diameter (mm) | 16.00mm |
| Body Length (Decimal Inch) | 3.150" |
| Body Length (mm) | 80.00mm |
| Functional Length (Decimal Inch) | 2.953" |
| Functional Length (mm) | 75.00mm |
| Overall Length (Decimal Inch) | 4.449" |
| Overall Length (mm) | 113.00mm |
| Functional Width (Decimal Inch) | 0.154" |
| Functional Width (mm) | 3.90mm |

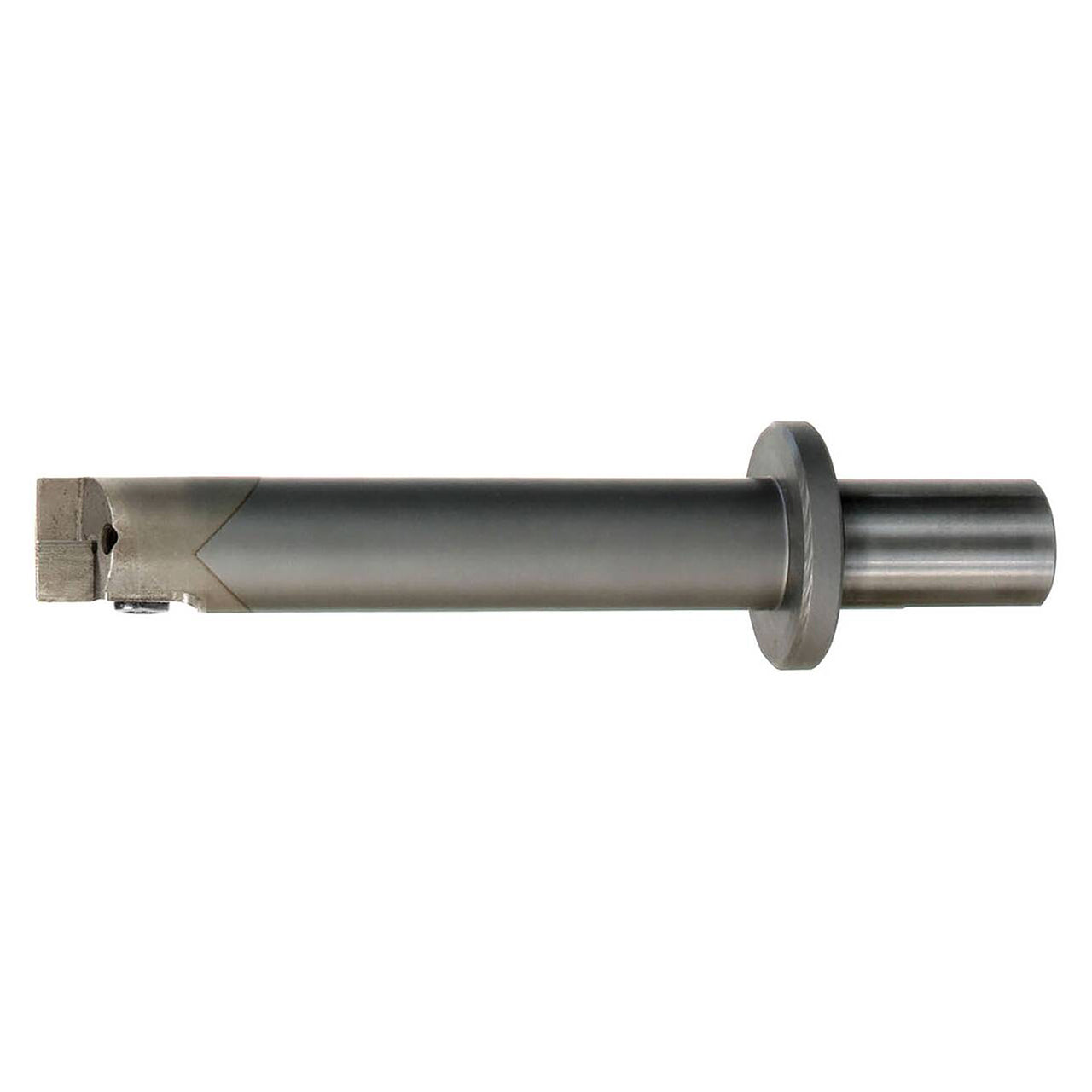

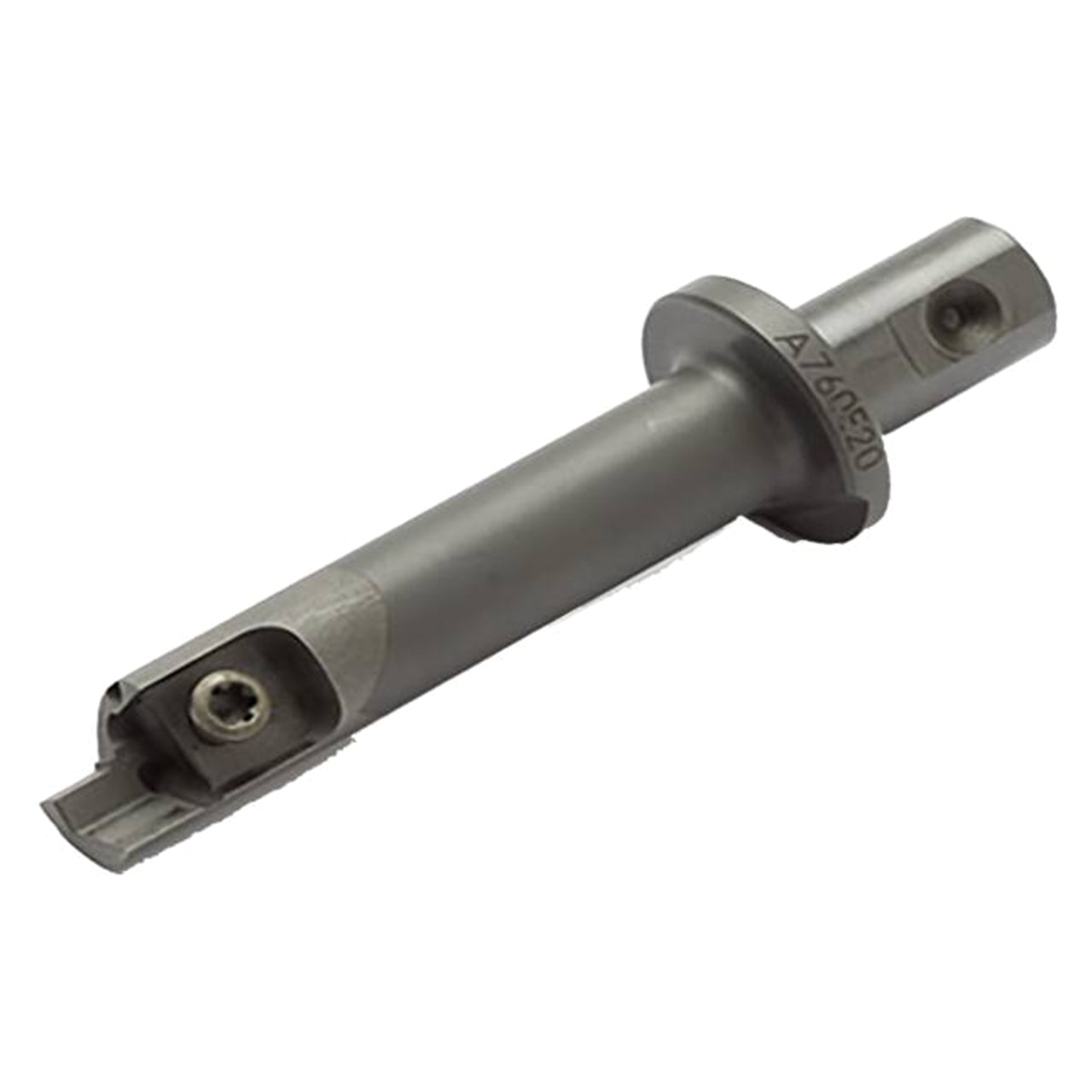

| Product Type | Boring Head Straight Shank |
