Product Specifications
| Manufacturer Part Number | 02593423 |
| Connection Diameter Machine Side (Decimal Inch) | 0.625" |
| Connection Diameter Machine Side (mm) | 15.88mm |
| Shank Diameter (Decimal Inch) | 0.625" |
| Shank Diameter (mm) | 15.88mm |
| Contact Surface Diameter Workpiece Side (Decimal Inch) | 0.449" |
| Contact Surface Diameter Workpiece Side (mm) | 11.40mm |
| Functional Length (Decimal Inch) | 2.362" |
| Functional Length (mm) | 60.00mm |
| Protruding Length (Decimal Inch) | 4.803" |
| Protruding Length (mm) | 122.00mm |
| Overall Length (Decimal Inch) | 6.693" |
| Overall Length (mm) | 170.00mm |
| Body Half Taper Angle Degree) | 1 Degree |
| Maximum Rotational Speed (rpm) | 63600 rpm |
| Coolant Entry Style Code | 1 |
| Coolant Supply Property | 1 |
| Coolant Exit Style Code | 1 |
| Shank Type | Cylindrical Densimet |

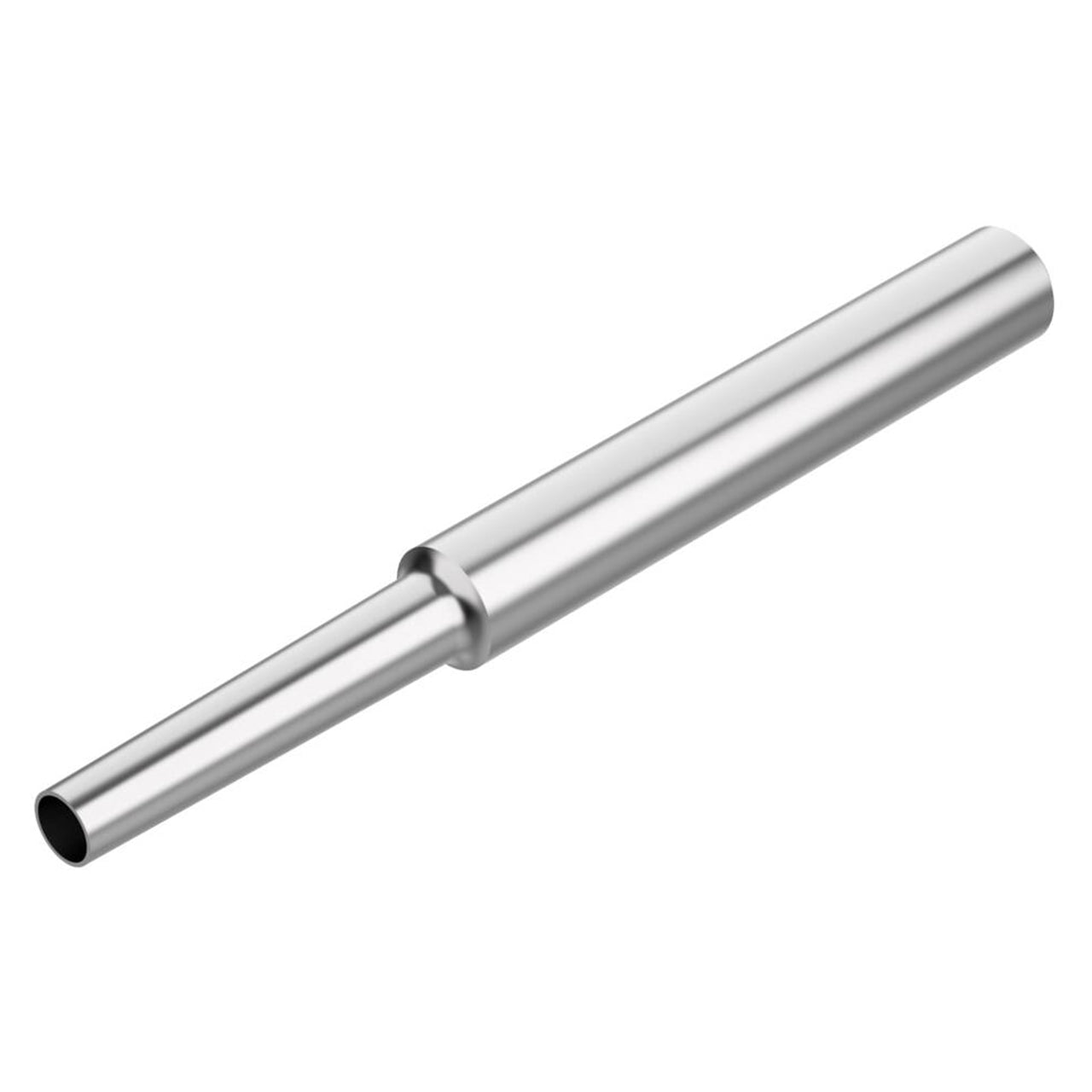

| Product Type | Replaceable Tip Milling Shank |
