Product Specifications
| Manufacturer Part Number | 02590853 |
| Inscribed Circle Diameter (Decimal Inch) | 0.625" |
| Inscribed Circle Diameter (mm) | 15.88mm |
| Shank Width (Decimal Inch) | 1.929" |
| Shank Width (mm) | 49.00mm |
| Functional Width (Decimal Inch) | 1.433" |
| Functional Width (mm) | 36.40mm |
| Corner Radius (Decimal Inch) | 0.047" |
| Corner Radius (mm) | 1.20mm |
| Insert Thickness (Decimal Inch) | 0.219" |
| Insert Thickness (mm) | 5.56mm |
| Clearance Angle Major (Degree) | 7 Degree |
| Cutting Edge Count | 4 |
| Cutting Geometry Type Technical | P1 |
| Insert Included Angle (Degree) | 90 Degree |
| Material | Carbide |

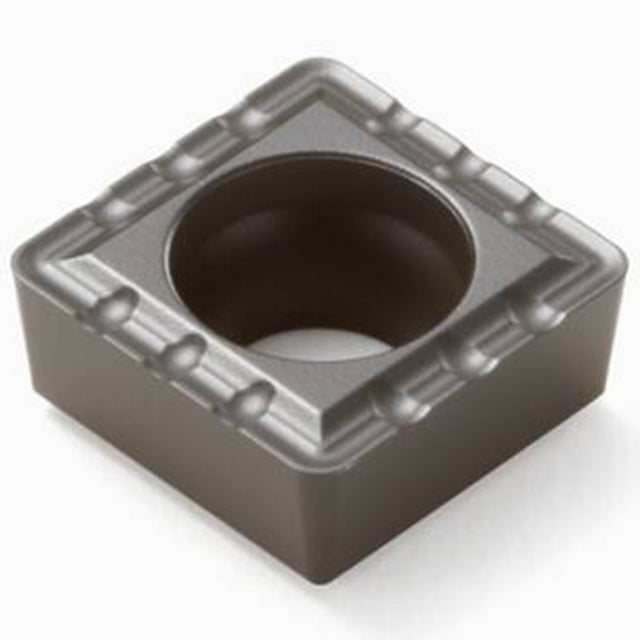

| Product Type | Indexable Drill Insert |
