Product Specifications
| Manufacturer Part Number | 02590770 |
| Cutting Diameter (mm) | 60.00mm |
| Minimum Cutting Diameter Internal (mm) | 60.00mm |
| Connection Diameter Machine Side (mm) | 46.00mm |
| Flange Diameter (mm) | 80.00mm |
| Shank Diameter (mm) | 46.00mm |
| Shank Length (mm) | 43.00mm |
| Usable Length (mm) | 150.00mm |
| Overall Length (mm) | 244.50mm |
| Shank Width (Decimal Inch) | 2.429" |
| Shank Width (mm) | 61.70mm |
| Functional Width (Decimal Inch) | 0.900" |
| Functional Width (mm) | 22.86mm |
| Shank Type | ABS Compatible |
| Coolant Entry Style Code | 3 |
| Coolant Supply Property | 1 |
| Coolant Exit Style Code | 4 |
| Tool Cutting Edge Angle (Degree) | 88 Degree |

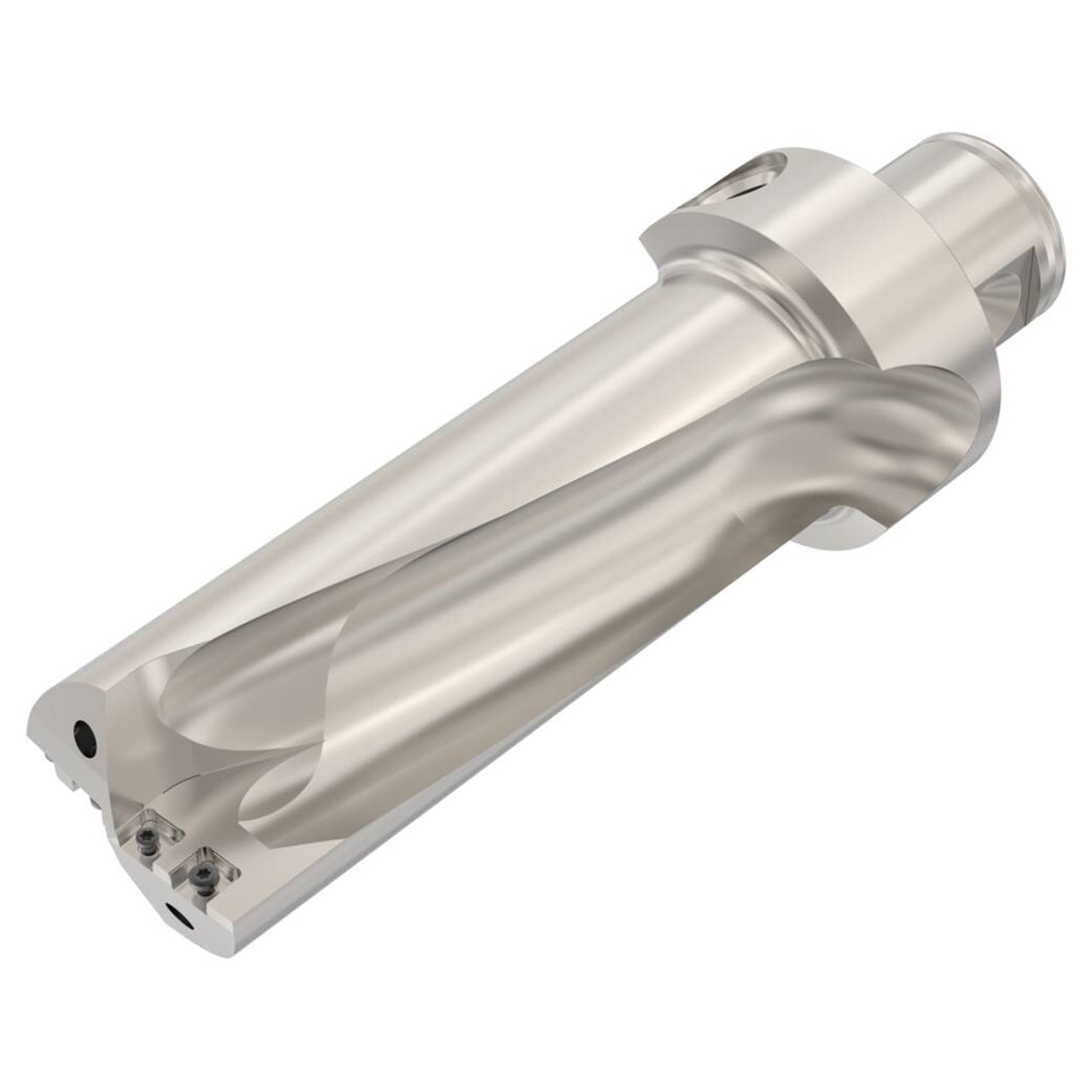

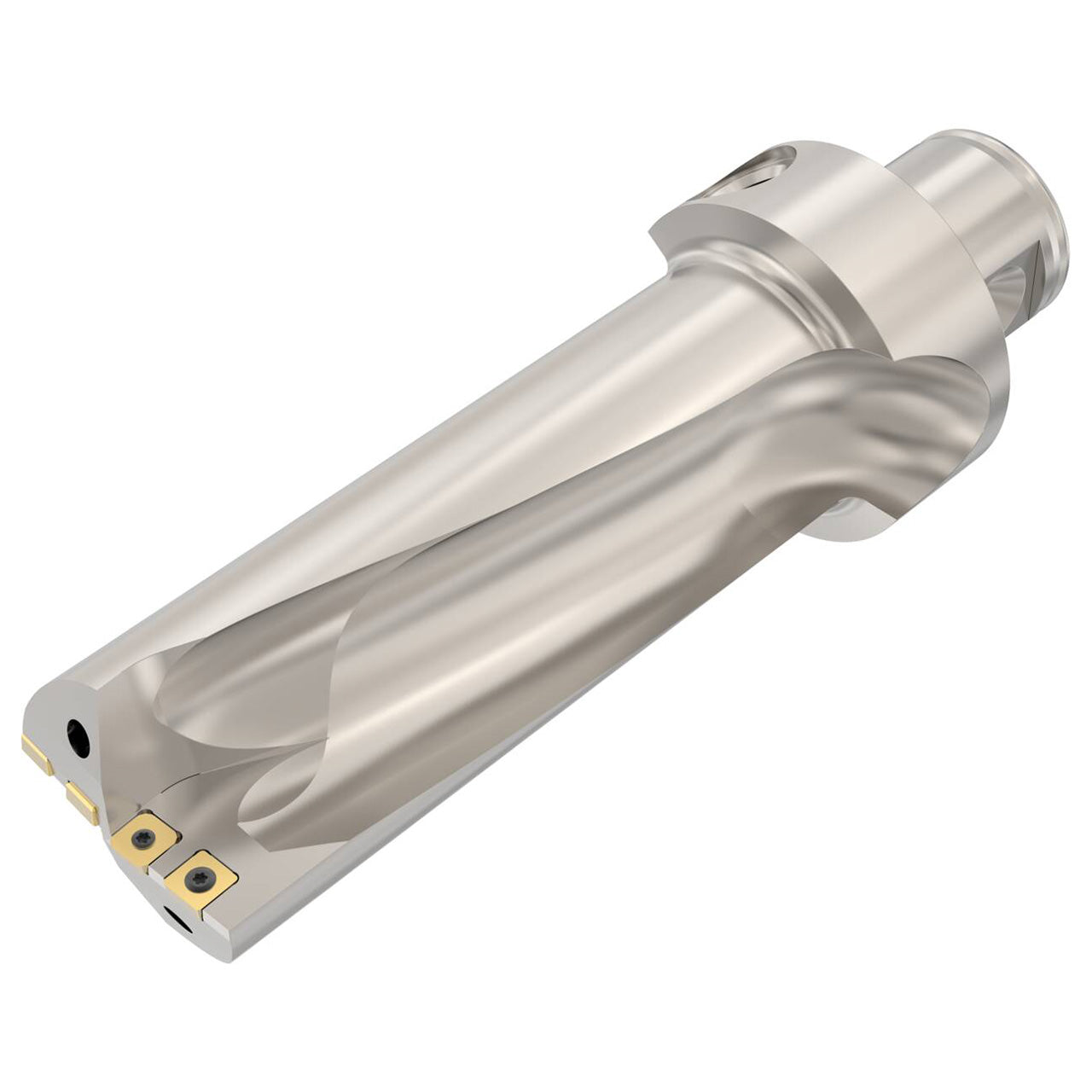

| Product Type | Indexable Insert Drill |
