Product Specifications
| Manufacturer Part Number | 02588167 |
| Functional Length (mm) | 101.00mm |
| Functional Length Secondary (mm) | 107.10mm |
| Head Length (mm) | 32.00mm |
| Shank Width (mm) | 16.00mm |
| Height of Tool Holder Shank (mm) | 16.00mm |
| Functional Width (mm) | 20.00mm |
| Rake Orthogonal Angle (Degree) | -8 Degree |
| Cutting Direction | Right Hand |
| Insert Clamping System | D |
| Tool Cutting Edge Angle (Degree) | 45 Degree |
| Tool Cutting Edge Angle Code | S |
| Tool Cutting Edge Angle In Feed Direction End (Degree) | 135 Degree |
| Tool Cutting Edge Angle In Feed Direction Side (Degree) | 45 Degree |
| Insert Shape Code | S |
| Shank Type | Square shank |

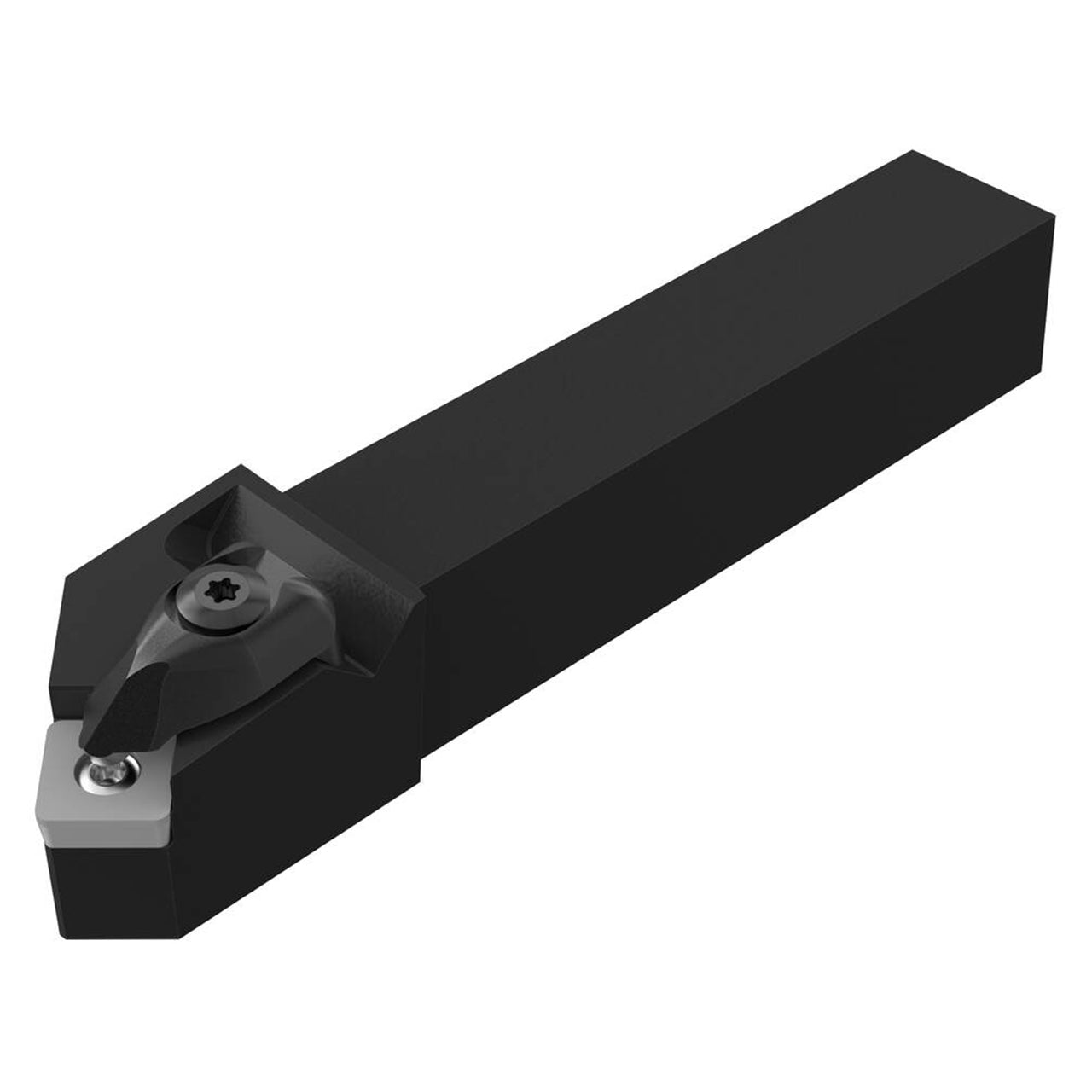

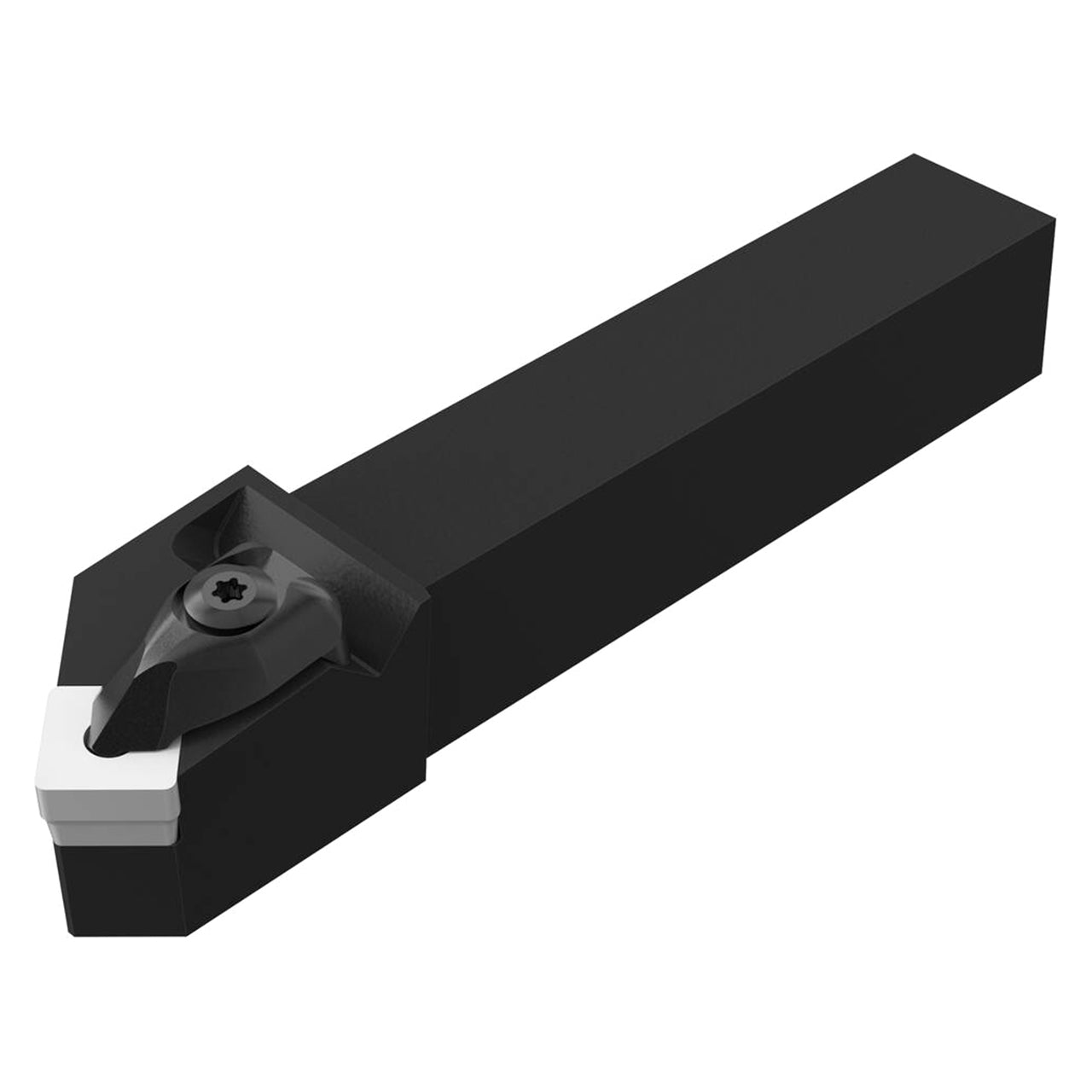

| Product Type | Indexable Turning Toolholder |
