Product Specifications
| Manufacturer Part Number | 02587949 |
| Minimum Cutting Diameter Internal (Decimal Inch) | 7.480" |
| Minimum Cutting Diameter Internal (mm) | 190.00mm |
| Minimum Cutting Diameter Internal 3 (Decimal Inch) | 7.480" |
| Minimum Cutting Diameter Internal 3 (mm) | 190.00mm |

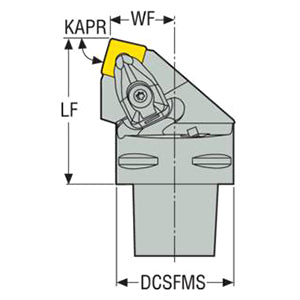

| Contact Surface Diameter Machine Side (Decimal Inch) | 2.480" |
| Contact Surface Diameter Machine Side (mm) | 63.00mm |
| Functional Length (Decimal Inch) | 2.559" |
| Functional Length (mm) | 65.00mm |
| Functional Width (Decimal Inch) | 1.378" |
| Functional Width (mm) | 35.00mm |
| Coolant Entry Style Code | 1 |
| Coolant Supply Property | 1 |
| Rake Orthogonal Angle (Degree) | -6 Degree |
| Cutting Direction | Right Hand |
| Insert Clamping System | D |
| Tool Cutting Edge Angle (Degree) | 75 Degree |
| Tool Cutting Edge Angle Code | R |
| Tool Cutting Edge Angle In Feed Direction End (Degree) | 105 Degree |
| Tool Cutting Edge Angle In Feed Direction Side (Degree) | 75 Degree |
| Inclination Angle (Degree) | -6 Degree |
| Insert Shape Code | S |
| Shank Type | Seco-Capto |
| Product Type | Modular Turning Head |
