Product Specifications
| Manufacturer Part Number | 02587629 |

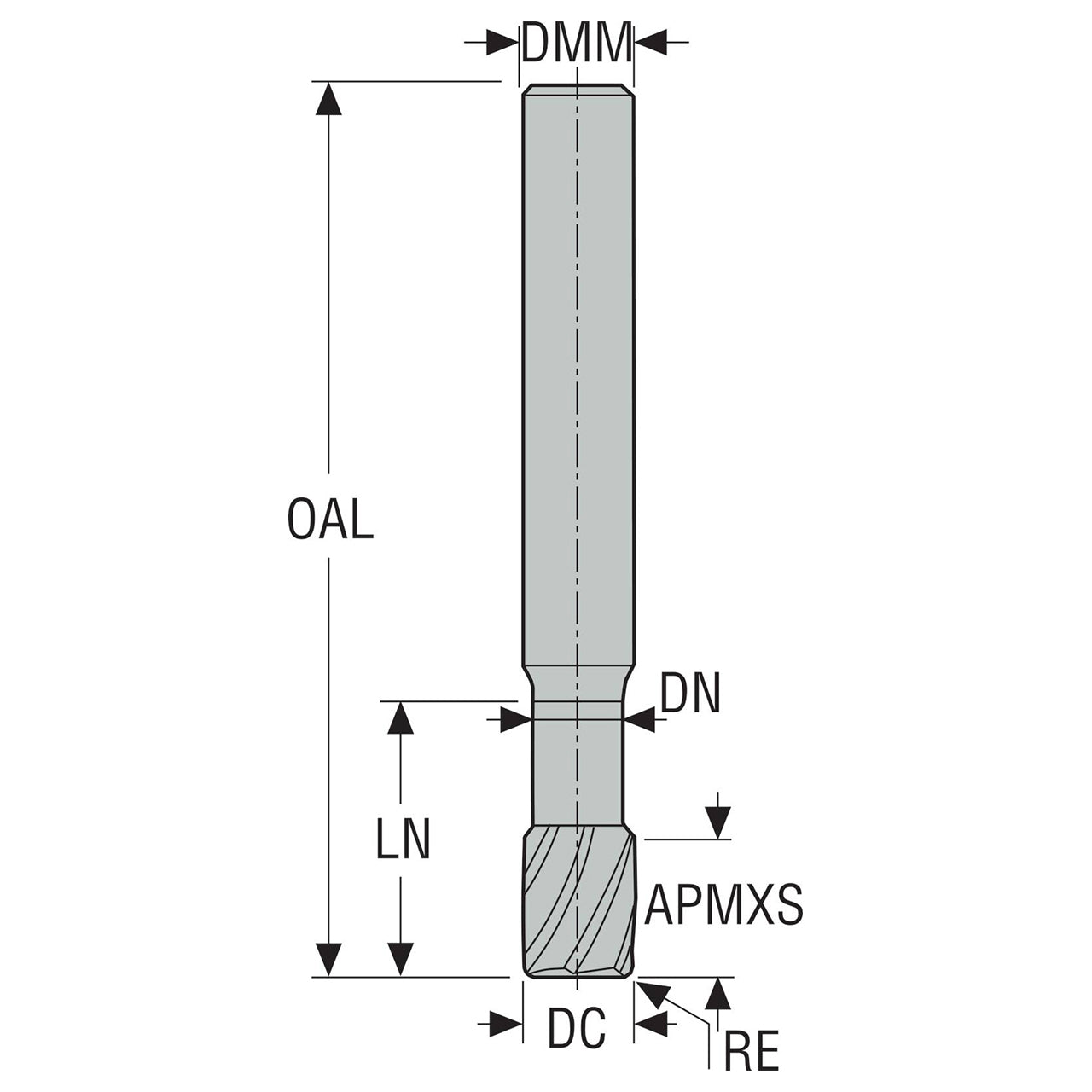

| Cutting Diameter (mm) | 10.00mm |
| Cutting Diameter 1 (mm) | 10.00mm |
| Connection Diameter Machine Side (mm) | 10.00mm |
| Shank Diameter (mm) | 10.00mm |
| Neck Diameter (mm) | 9.40mm |
| Maximum Helical Interpolation Hole Diameter (mm) | 18.95mm |
| Minimum Helical Interpolation Hole Diameter (mm) | 13.00mm |
| Overall Length (mm) | 65.00mm |
| Neck Length (mm) | 22.00mm |
| Neck Length 1 (mm) | 22.00mm |
| Cutting Edge Effective Length (mm) | 10.00mm |
| Shank Width (Decimal Inch) | 1.929" |
| Shank Width (mm) | 49.00mm |
| Functional Width (Decimal Inch) | 1.209" |
| Functional Width (mm) | 30.70mm |
| Maximum Depth of Cut (mm) | 10.00mm |
| Corner Radius (mm) | 0.50mm |
| Shank Type | Cylindrical |
| Center Cutting Capability | Yes |
| Cutting Edge Count | 4 |
| Cutting Geometry Type | JHP170 |
| Cutting Geometry Type Technical | JHP170 |
| Face Cutting Edge Count | 4 |
| Flute Helix Angle (Degree) | 50 Degree |
| Flute Helix Direction | Right |
| Rake Radial Angle (Degree) | -12 Degree |
| Axial Rake Angle (Degree) | 50 Degree |
| Cutting Direction | Right Hand |
| Internal Coolant Channel | No |
| Tool Cutting Edge Angle (Degree) | 90 Degree |
| Number of Flute | 4 |
| Material | Carbide |
| Coating | MEGA-64 |

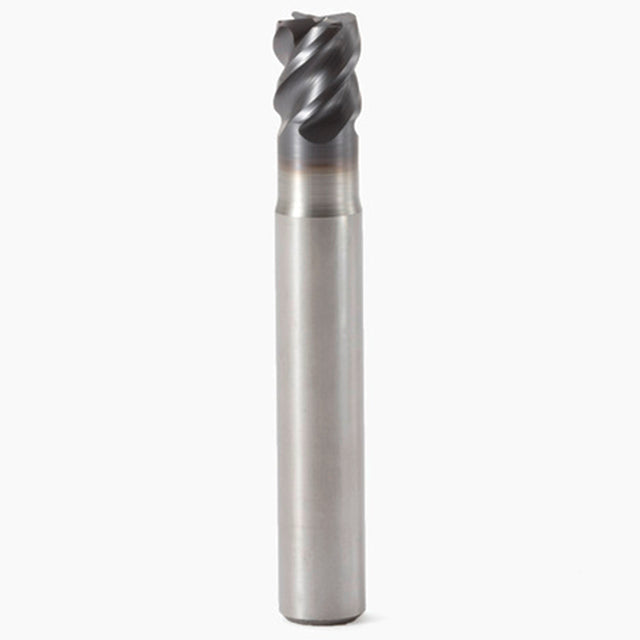

| Product Type | Corner Radius End Mill |
