Product Specifications
| Manufacturer Part Number | 02573597 |
| Minimum Cutting Diameter Internal (mm) | 300.00mm |
| Minimum Cutting Diameter Internal 3 (mm) | 250.00mm |
| Functional Length (mm) | 170.00mm |
| Head Length (mm) | 37.00mm |
| Shank Length (mm) | 134.00mm |
| Shank Width (mm) | 32.00mm |
| Maximum Radial Cutting Depth (mm) | 1.70mm |
| Maximum Cutting Depth (mm) | 2.45mm |
| Height of Tool Holder Shank (mm) | 32.00mm |
| Functional Height (mm) | 32.00mm |
| Functional Width (mm) | 27.00mm |
| Rake Radial Angle (Degree) | -6 Degree |
| Rake Radial Angle (Degree) | -6 Degree |
| Rake Orthogonal Angle (Degree) | -6 Degree |
| Axial Rake Angle (Degree) | -6 Degree |
| Cutting Direction | Right Hand |
| Insert Clamping System | P |
| Tool Cutting Edge Angle (Degree) | 75 Degree |
| Tool Cutting Edge Angle In Feed Direction End (Degree) | 104.37 Degree |
| Tool Cutting Edge Angle In Feed Direction Side (Degree) | 75 Degree |
| Inclination Angle (Degree) | -6 Degree |
| Maximum Ramping Angle (Degree) | 4.4 Degree |
| Shank Type | Square shank |

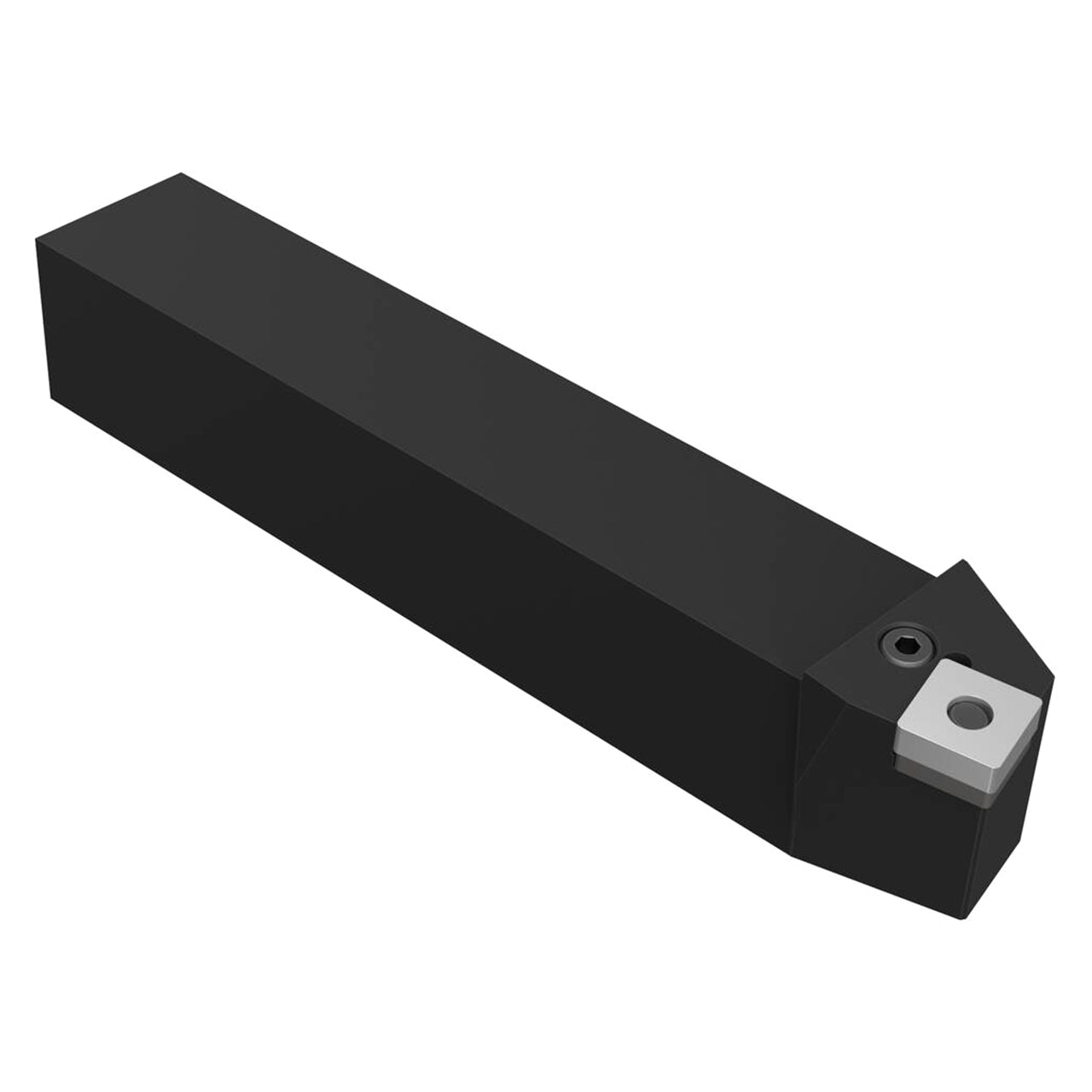

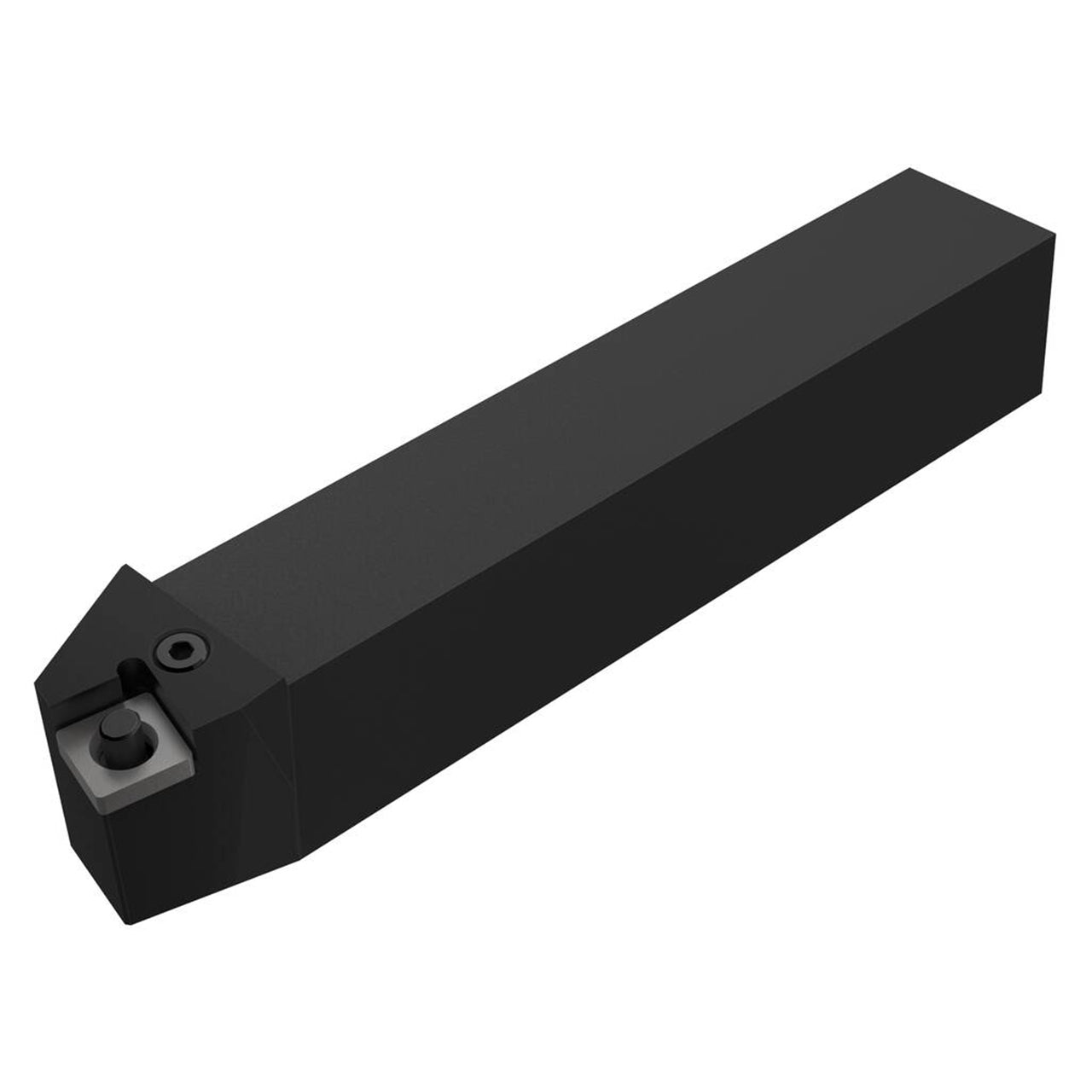

| Product Type | Indexable Turning Toolholder |
