Product Specifications
| Manufacturer Part Number | 02573296 |

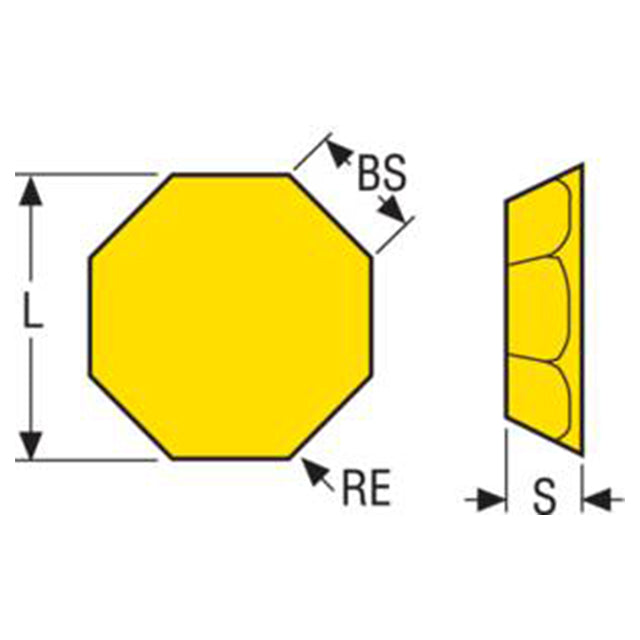

| Inscribed Circle Diameter (Decimal Inch) | 0.707" |
| Inscribed Circle Diameter (mm) | 17.96mm |
| Wiper Edge Length (Decimal Inch) | 0.063" |
| Wiper Edge Length (mm) | 1.60mm |
| Cutting Edge Effective Length (Decimal Inch) | 0.212" |
| Cutting Edge Effective Length (mm) | 5.39mm |
| Shank Width (mm) | 38.50mm |
| Functional Width (mm) | 23.80mm |
| Corner Radius (Decimal Inch) | 0.020" |
| Corner Radius (mm) | 0.50mm |
| Insert Thickness (Decimal Inch) | 0.187" |
| Insert Thickness (mm) | 4.76mm |
| Clearance Angle Major (Degree) | 24 Degree |
| Cutting Edge Condition Code | T |
| Cutting Edge Count | 8 |
| Pocket Seat Code of The Cutter | OF..0704 |
| Insert Size And Shape | OFEN0704 |
| Material | PCBN |
| Product Type | Milling Insert |
