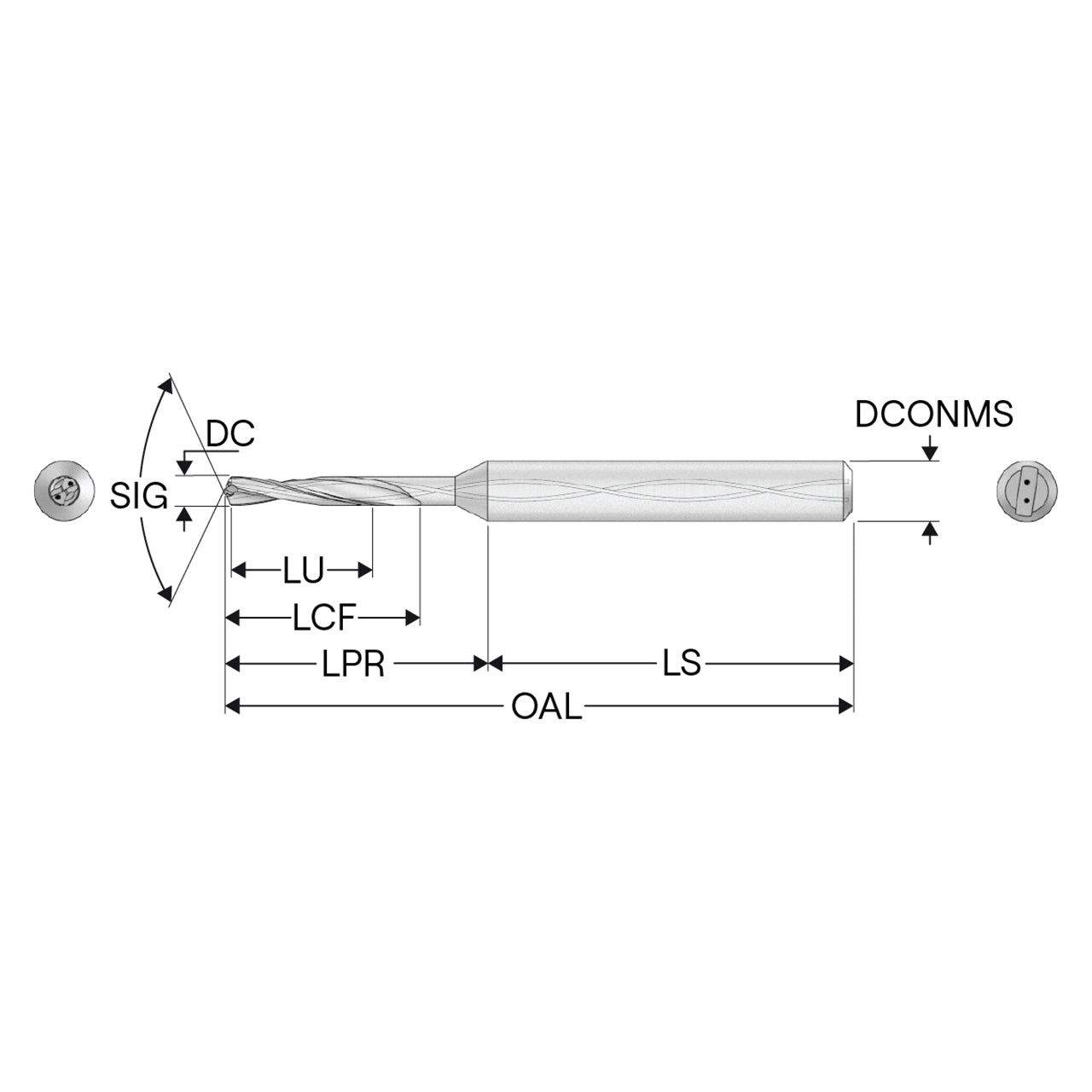

Product Specifications
| Manufacturer Part Number | 02569152 |
| Corner chamfer width (Decimal Inch) | 0.003" |
| Cutting Diameter (Decimal Inch) | 0.313" |
| Connection Diameter Machine Side (Decimal Inch) | 0.315" |
| Grade Type | Carbide Uncoated |
| Corner Chamfer Angle (Degree) | 35.00 Degree |
| Functional Length Secondary (Decimal Inch) | 1.693" |
| Shank Length (Decimal Inch) | 1.417" |
| Usable Length (Decimal Inch) | 1.063" |
| Overall Length (Decimal Inch) | 3.110" |
| Shank Type | Cylindrical |
| Peripheral Effective Cutting Edge Count | 2 |
| Product Series | SD203A |

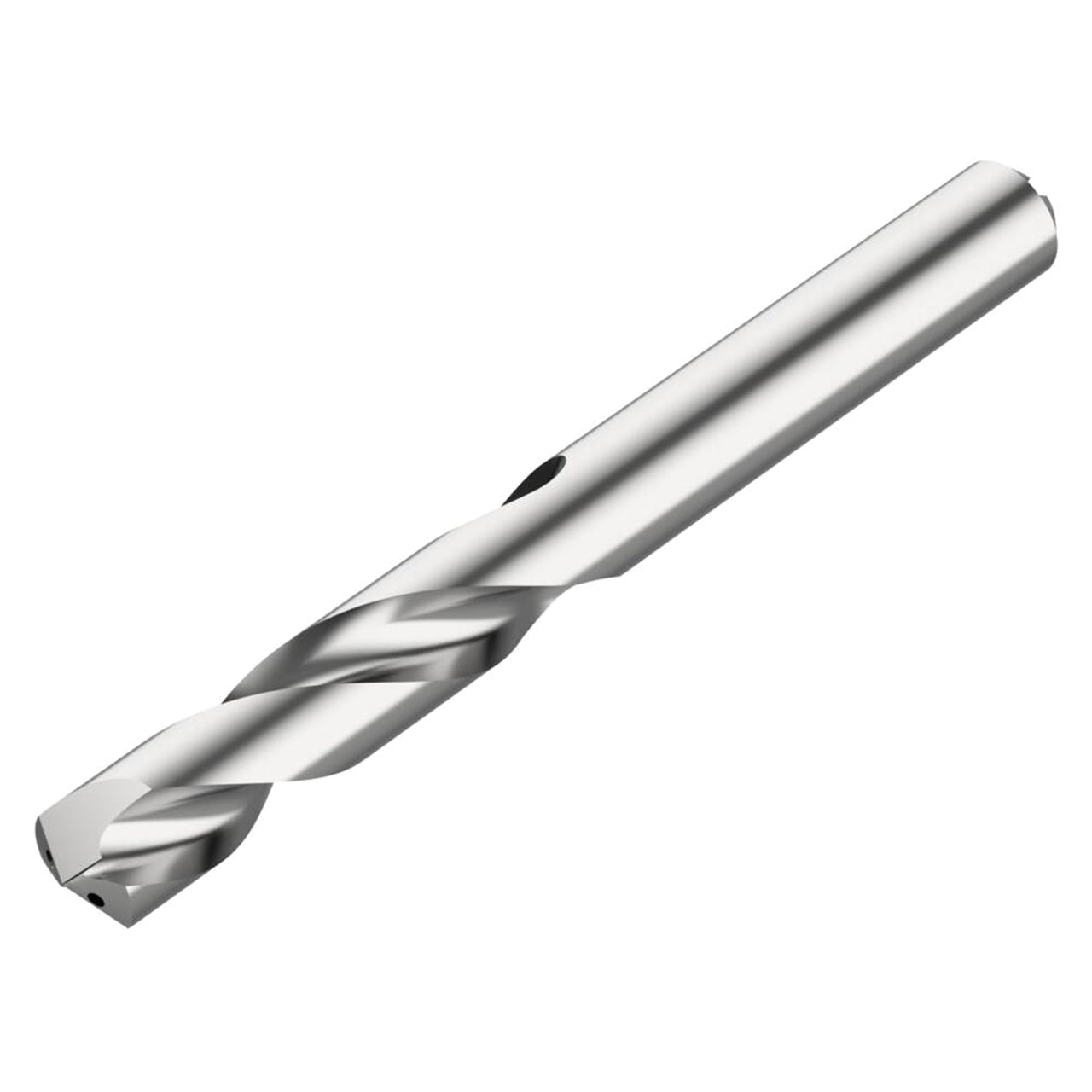

| Product Type | Screw Machine Length Drill Bit |
