Product Specifications
| Manufacturer Part Number | 02566509 |

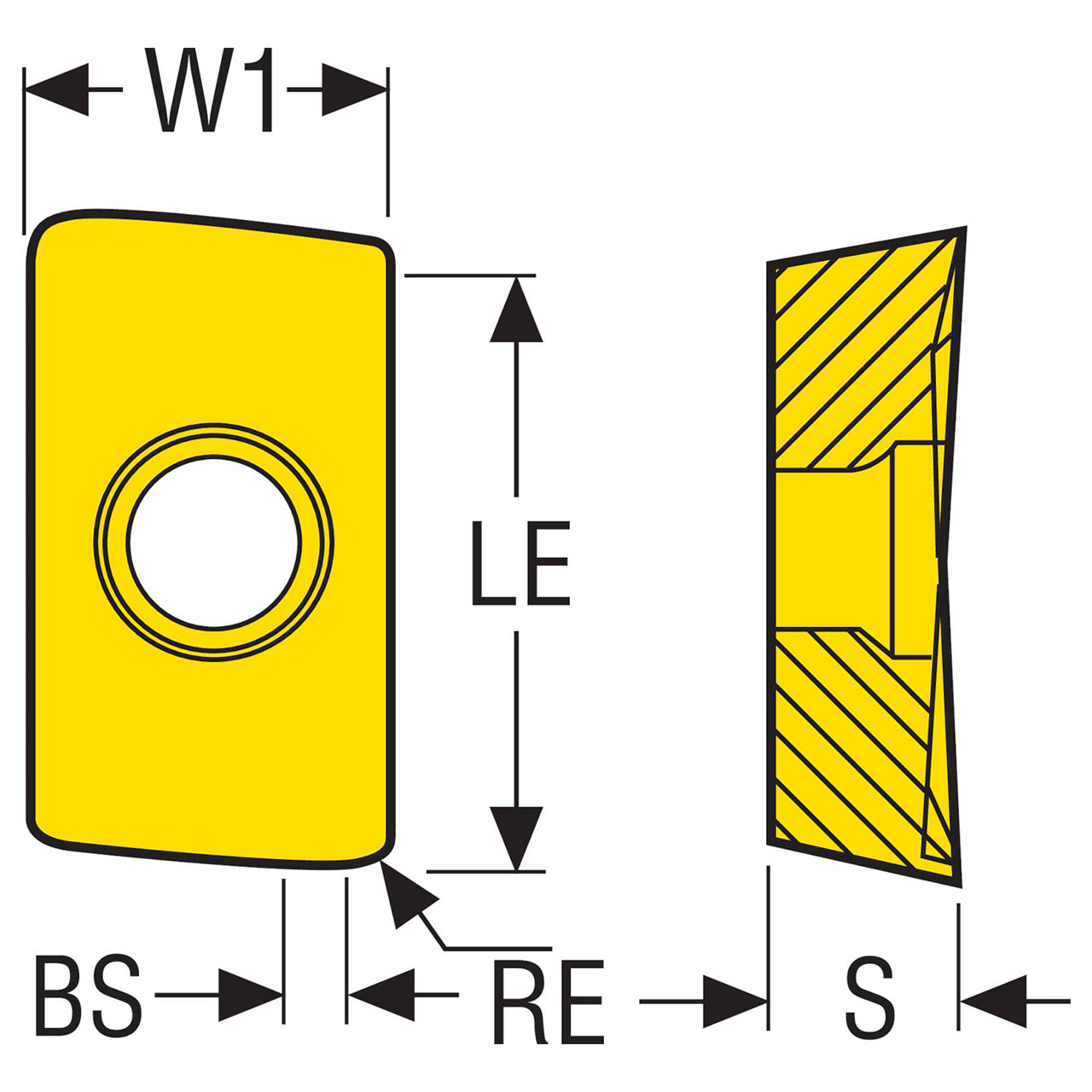

| Fixing Hole Diameter (Decimal Inch) | 0.181" |
| Fixing Hole Diameter (mm) | 4.60mm |
| Wiper Edge Length (Decimal Inch) | 0.059" |
| Wiper Edge Length (mm) | 1.50mm |
| Cutting Edge Effective Length (Decimal Inch) | 0.622" |
| Cutting Edge Effective Length (mm) | 15.80mm |
| Functional Width (Decimal Inch) | 0.543" |
| Functional Width (mm) | 13.80mm |
| Corner Radius (Decimal Inch) | 0.032" |
| Corner Radius (mm) | 0.80mm |
| Insert Thickness (Decimal Inch) | 0.224" |
| Insert Thickness (mm) | 5.69mm |
| Clearance Angle Major (Degree) | 11 Degree |
| Cutting Edge Count | 2 |
| Cutting Geometry Type Technical | M14 |
| Pocket Seat Code of The Cutter | AP.X1604 |
| Insert Size And Shape | APMX1604 |
| Insert Included Angle (Degree) | 90.83 Degree |
| Insert Rake Angle (Degree) | 24 Degree |
| Insert Hand | Left Hand |
| Material | Carbide |
| Product Type | Plunge Milling Insert |
