Product Specifications
| Manufacturer Part Number | 02566037 |

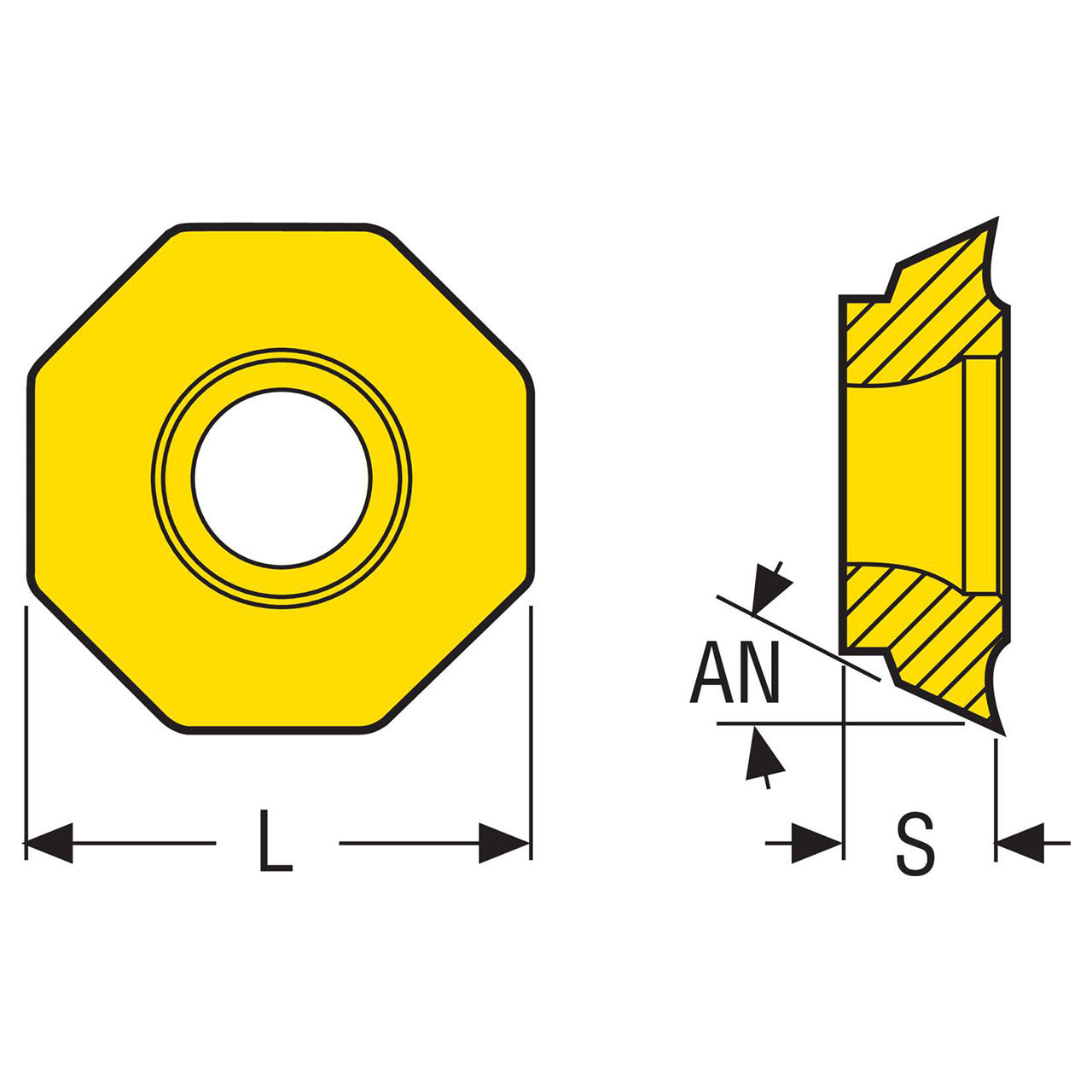

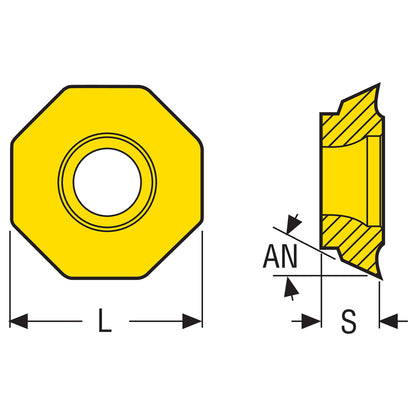

| Inscribed Circle Diameter (Decimal Inch) | 0.500" |
| Inscribed Circle Diameter (mm) | 12.70mm |
| Wiper Edge Length (Decimal Inch) | 0.059" |
| Wiper Edge Length (mm) | 1.50mm |
| Cutting Edge Effective Length (Decimal Inch) | 0.193" |
| Cutting Edge Effective Length (mm) | 4.90mm |
| Corner Radius (Decimal Inch) | 0.020" |
| Corner Radius (mm) | 0.50mm |
| Insert Thickness (Decimal Inch) | 0.148" |
| Insert Thickness (mm) | 3.77mm |
| Clearance Angle Major (Degree) | 26 Degree |
| Cutting Edge Count | 8 |
| Cutting Geometry Type Technical | M08 |
| Pocket Seat Code of The Cutter | OF..05 |
| Insert Size And Shape | OFEX05T3 |
| Insert Hand | Neutral |
| Material | Carbide |

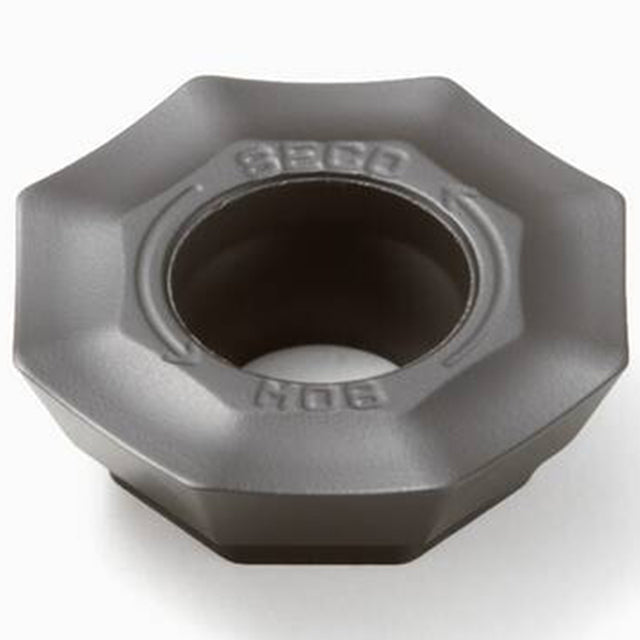

| Product Type | Octomill Insert |
