Product Specifications
| Manufacturer Part Number | 02565882 |
| Functional Length (Decimal Inch) | 6.000" |
| Functional Length (mm) | 152.40mm |
| Head Length (Decimal Inch) | 1.378" |
| Head Length (mm) | 35.00mm |
| Shank Width (Decimal Inch) | 1.250" |
| Shank Width (mm) | 31.75mm |
| Height of Tool Holder Shank (Decimal Inch) | 1.250" |
| Height of Tool Holder Shank (mm) | 31.75mm |
| Functional Height (Decimal Inch) | 1.250" |
| Functional Height (mm) | 31.75mm |
| Functional Width (Decimal Inch) | 1.500" |
| Functional Width (mm) | 38.10mm |
| Rake Orthogonal Angle (Degree) | -6 Degree |
| Cutting Direction | Left Hand |
| Insert Clamping System | D |
| Tool Cutting Edge Angle (Degree) | 90 Degree |
| Tool Cutting Edge Angle Code | F |
| Tool Cutting Edge Angle In Feed Direction End (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction Side (Degree) | 120 Degree |
| Inclination Angle (Degree) | -6 Degree |
| Insert Shape Code | T |
| Shank Type | Square shank |

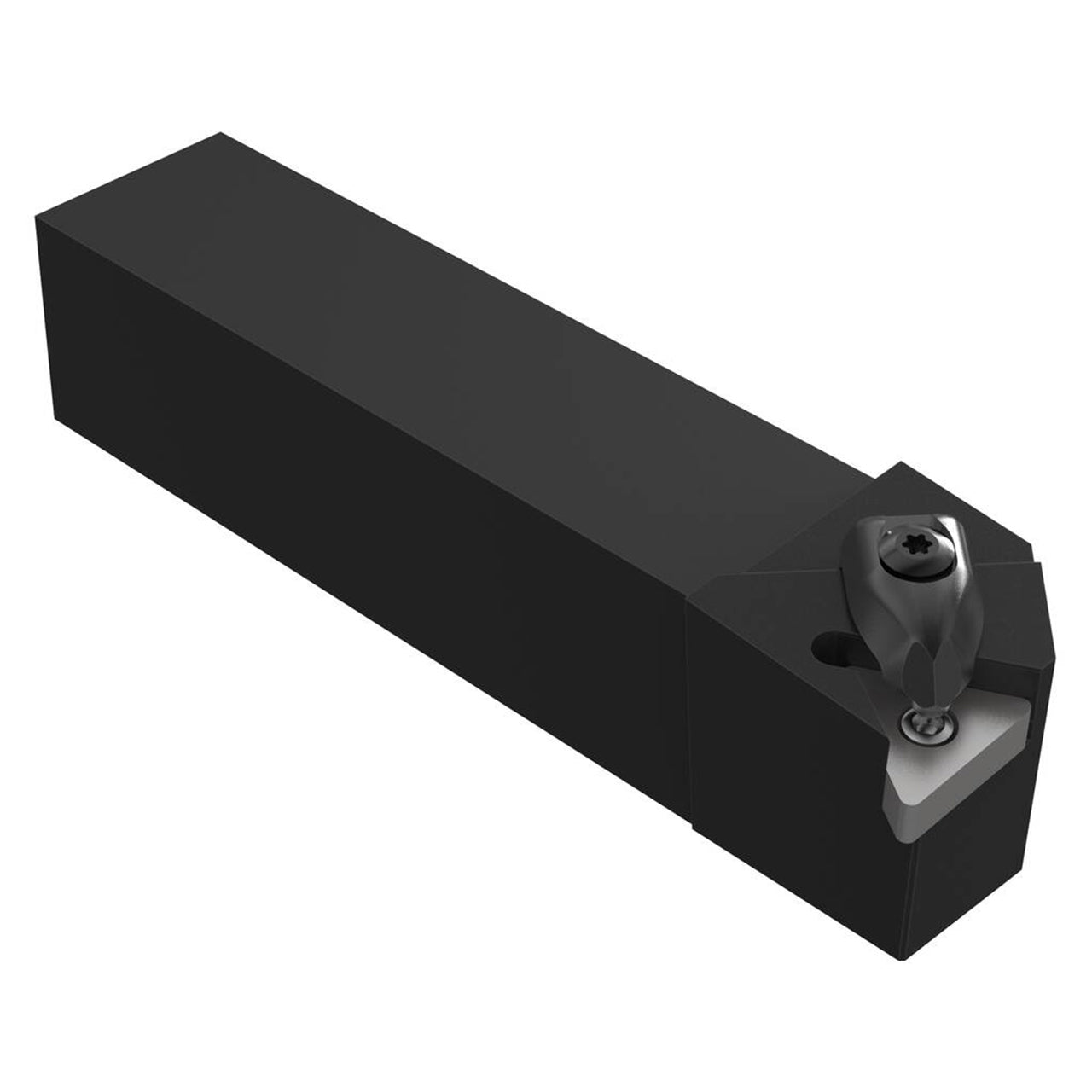

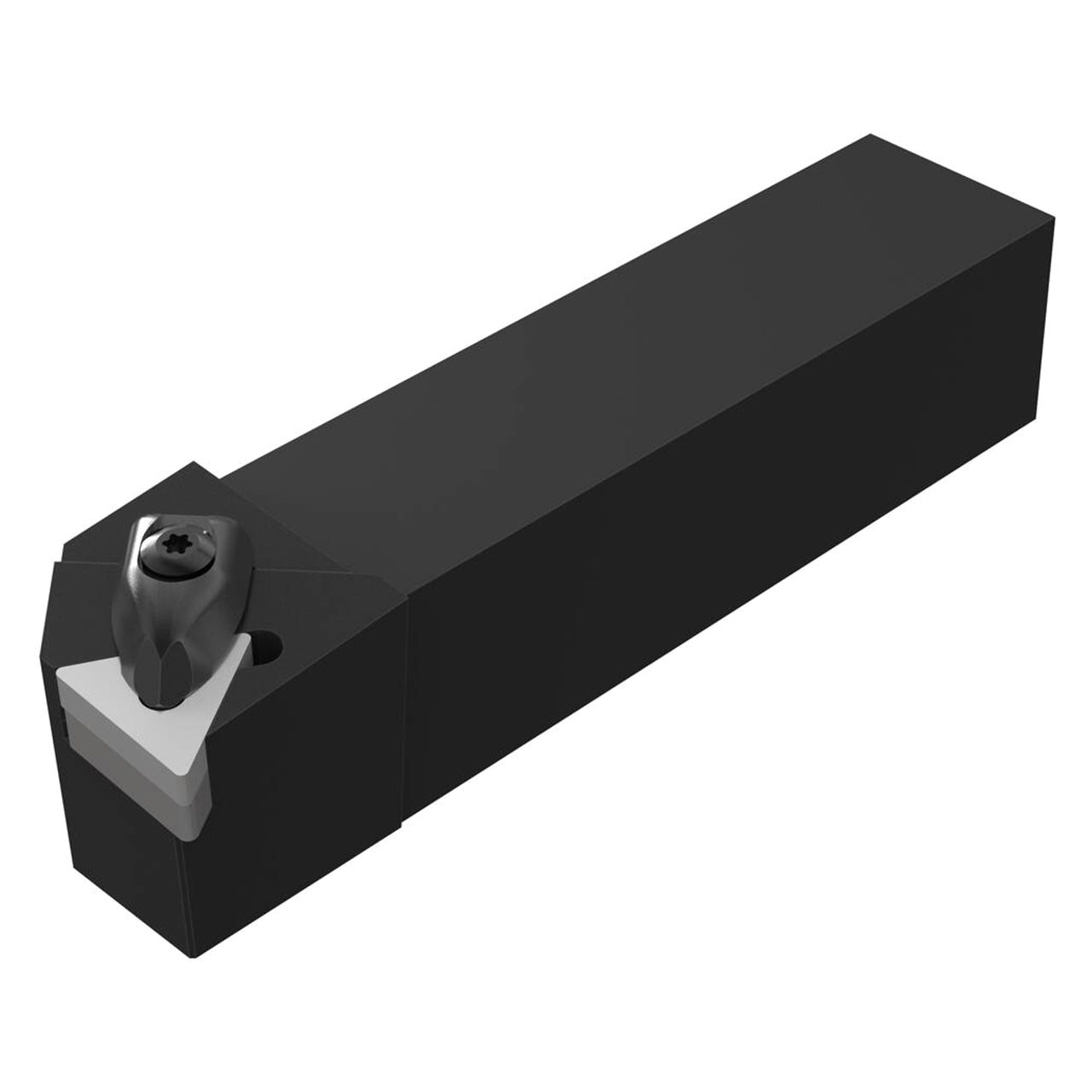

| Product Type | Indexable Turning Toolholder |
