Product Specifications
| Manufacturer Part Number | 02565549 |
| Minimum Cutting Diameter Internal (Decimal Inch) | 10.827" |
| Minimum Cutting Diameter Internal (mm) | 275.00mm |
| Minimum Cutting Diameter Internal 3 (Decimal Inch) | 10.118" |
| Minimum Cutting Diameter Internal 3 (mm) | 257.00mm |
| Functional Length (Decimal Inch) | 5.996" |
| Functional Length (mm) | 152.30mm |
| Functional Length Secondary (Decimal Inch) | 5.669" |
| Functional Length Secondary (mm) | 144.00mm |
| Head Length (Decimal Inch) | 1.575" |
| Head Length (mm) | 40.00mm |
| Shank Length (Decimal Inch) | 4.425" |
| Shank Length (mm) | 112.40mm |
| Shank Width (Decimal Inch) | 1.000" |
| Shank Width (mm) | 25.40mm |
| Maximum Cutting Depth (Decimal Inch) | 0.039" |
| Maximum Cutting Depth (mm) | 1.00mm |
| Height of Tool Holder Shank (Decimal Inch) | 1.000" |
| Height of Tool Holder Shank (mm) | 25.40mm |
| Functional Height (Decimal Inch) | 1.000" |
| Functional Height (mm) | 25.40mm |
| Functional Width (Decimal Inch) | 0.750" |
| Functional Width (mm) | 19.05mm |
| Rake Radial Angle (Degree) | -6 Degree |
| Rake Radial Angle (Degree) | -6 Degree |
| Rake Orthogonal Angle (Degree) | -6 Degree |
| Axial Rake Angle (Degree) | -6 Degree |
| Cutting Direction | Right Hand |
| Insert Clamping System | D |
| Tool Cutting Edge Angle (Degree) | 45 Degree |
| Tool Cutting Edge Angle Code | S |
| Tool Cutting Edge Angle In Feed Direction End (Degree) | 135 Degree |
| Tool Cutting Edge Angle In Feed Direction Side (Degree) | 45 Degree |
| Inclination Angle (Degree) | -6 Degree |
| Insert Shape Code | S |
| Shank Type | Square shank |

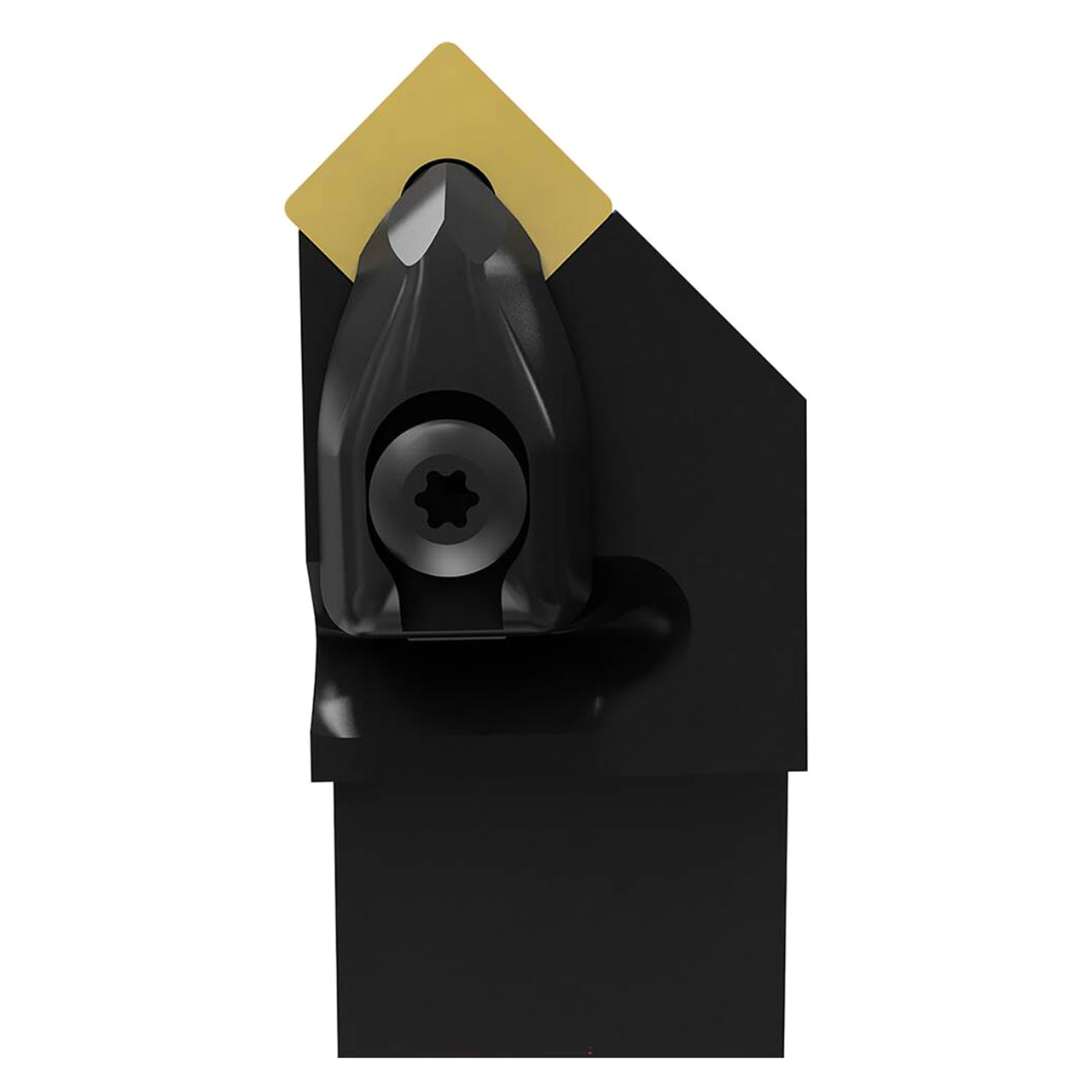

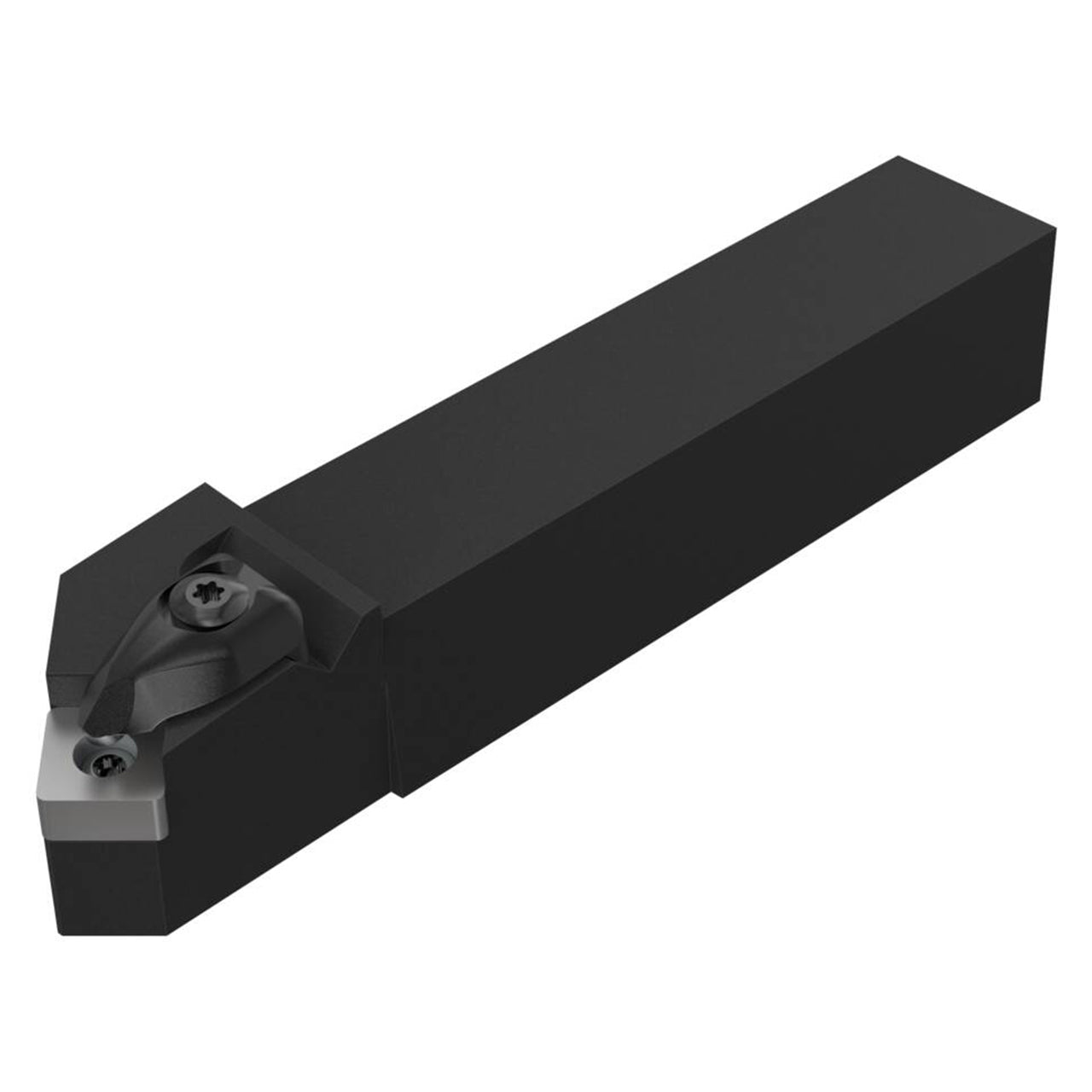

| Product Type | Indexable Turning Toolholder |
