Product Specifications
| Manufacturer Part Number | 02562811 |
| Minimum Cutting Diameter Internal (Decimal Inch) | 2.900" |
| Minimum Cutting Diameter Internal (mm) | 73.66mm |
| Minimum Cutting Diameter Internal 2 (Decimal Inch) | 2.500" |
| Minimum Cutting Diameter Internal 2 (mm) | 63.50mm |
| Connection Diameter Machine Side (Decimal Inch) | 2.500" |
| Connection Diameter Machine Side (mm) | 63.50mm |
| Shank Diameter (Decimal Inch) | 2.500" |
| Shank Diameter (mm) | 63.50mm |
| Functional Length (Decimal Inch) | 15.748" |
| Functional Length (mm) | 400.00mm |
| Head Length (Decimal Inch) | 2.756" |
| Head Length (mm) | 70.00mm |
| Height of Tool Holder Shank (Decimal Inch) | 2.343" |
| Height of Tool Holder Shank (mm) | 59.50mm |
| Shank Type | Cylindrical |
| Coolant Supply Property | 1 |
| Cutting Direction | Right Hand |
| Insert Clamping System | C |

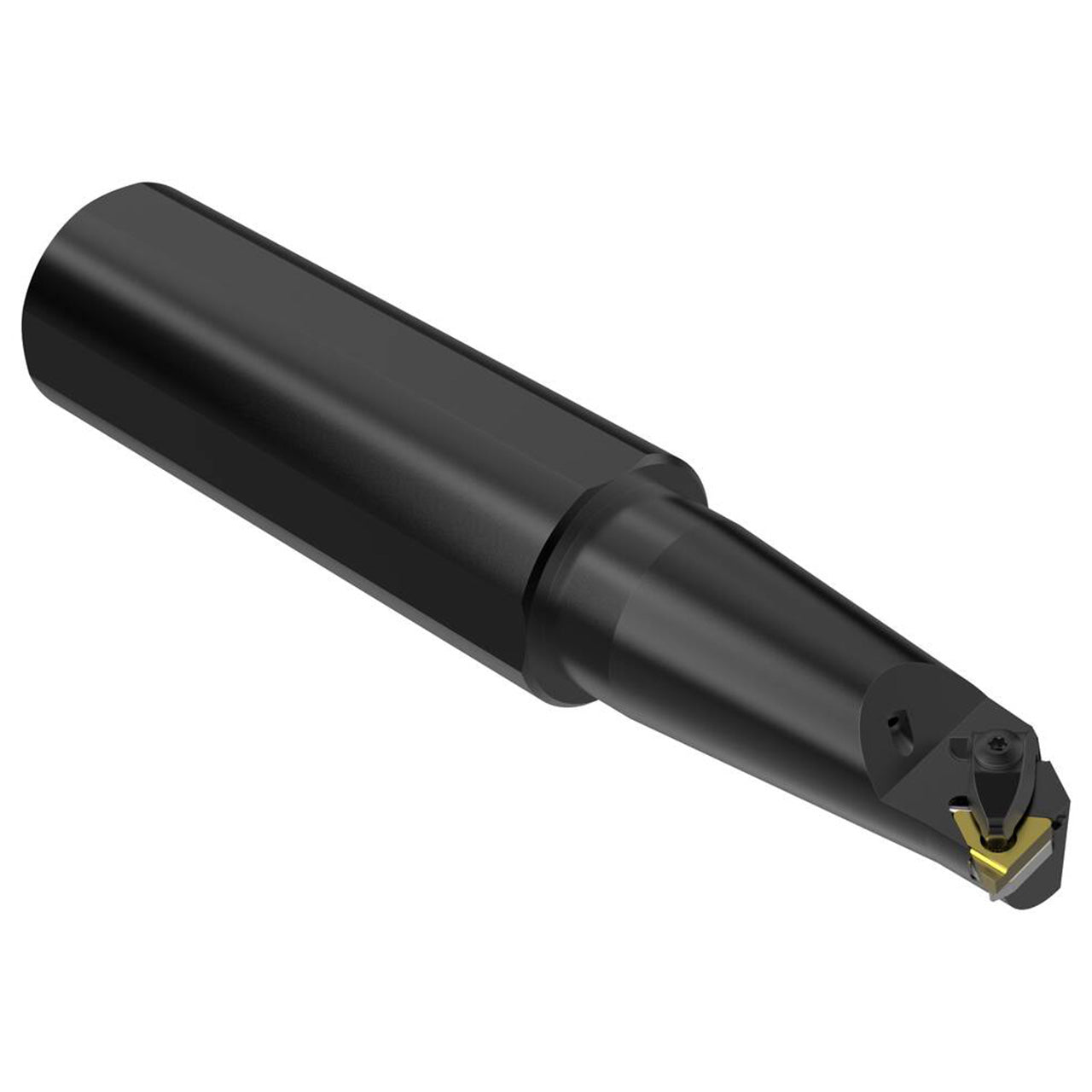

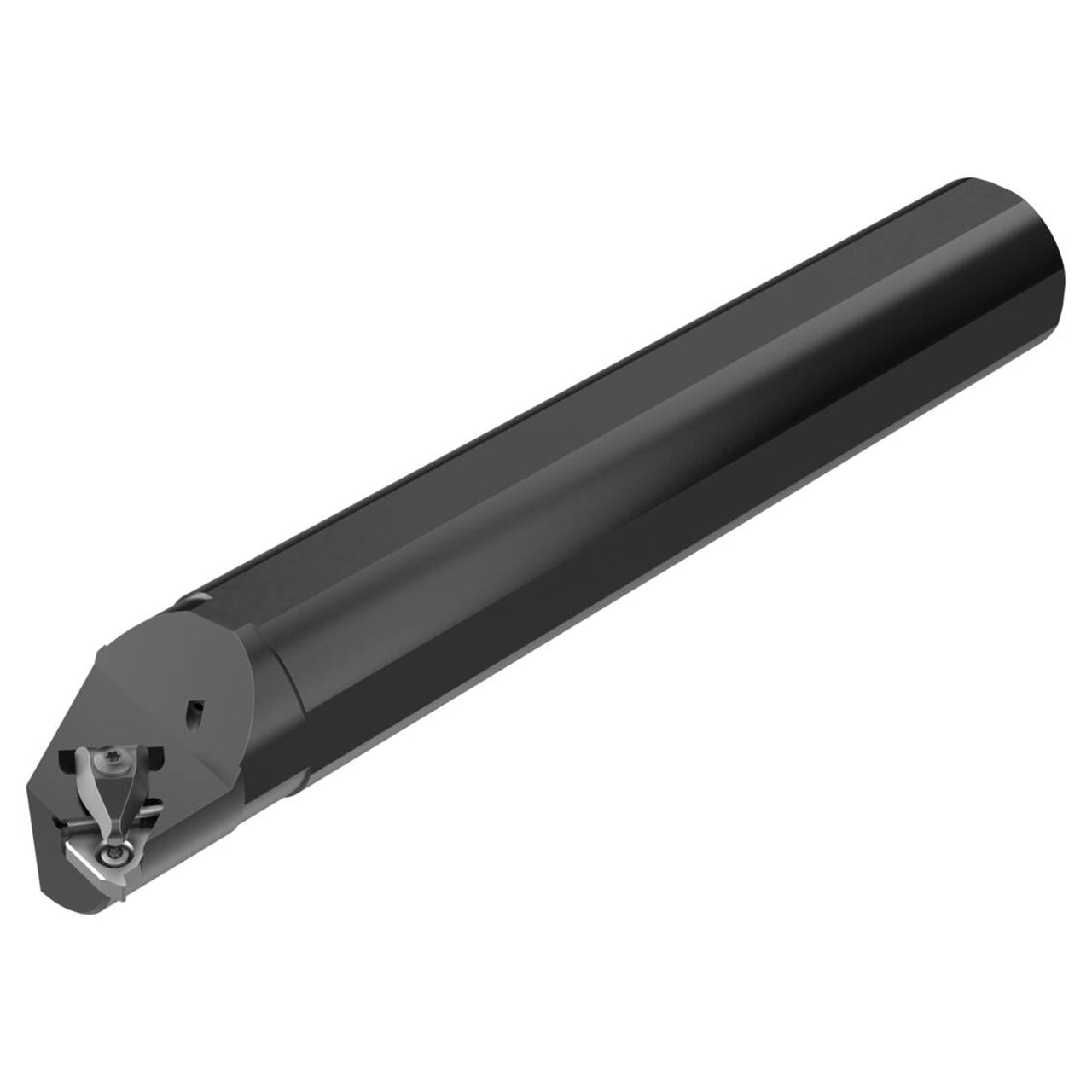

| Product Type | Indexable Threading Toolholder |
