Product Specifications
| Manufacturer Part Number | 02562797 |
| Minimum Cutting Diameter Internal (Decimal Inch) | 1.200" |
| Minimum Cutting Diameter Internal (mm) | 30.48mm |
| Minimum Cutting Diameter Internal 2 (Decimal Inch) | 1.000" |
| Minimum Cutting Diameter Internal 2 (mm) | 25.40mm |
| Connection Diameter Machine Side (Decimal Inch) | 1.000" |
| Connection Diameter Machine Side (mm) | 25.40mm |
| Shank Diameter (Decimal Inch) | 1.000" |
| Shank Diameter (mm) | 25.40mm |
| Functional Length (Decimal Inch) | 7.917" |
| Functional Length (mm) | 201.10mm |
| Head Length (Decimal Inch) | 1.736" |
| Head Length (mm) | 44.10mm |
| Height of Tool Holder Shank (Decimal Inch) | 0.902" |
| Height of Tool Holder Shank (mm) | 22.90mm |
| Shank Type | Cylindrical |
| Coolant Supply Property | 1 |
| Cutting Direction | Right Hand |
| Insert Clamping System | C |

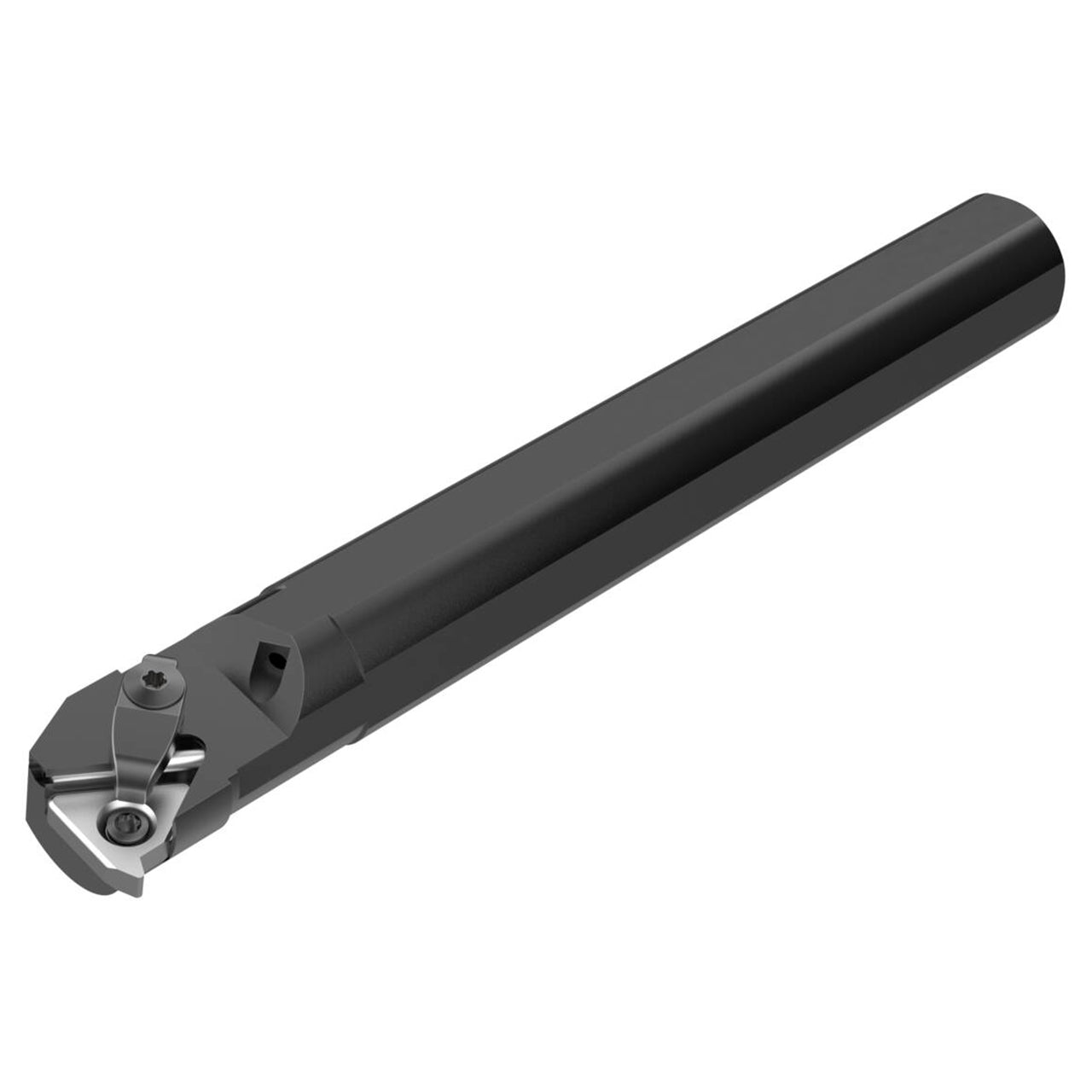

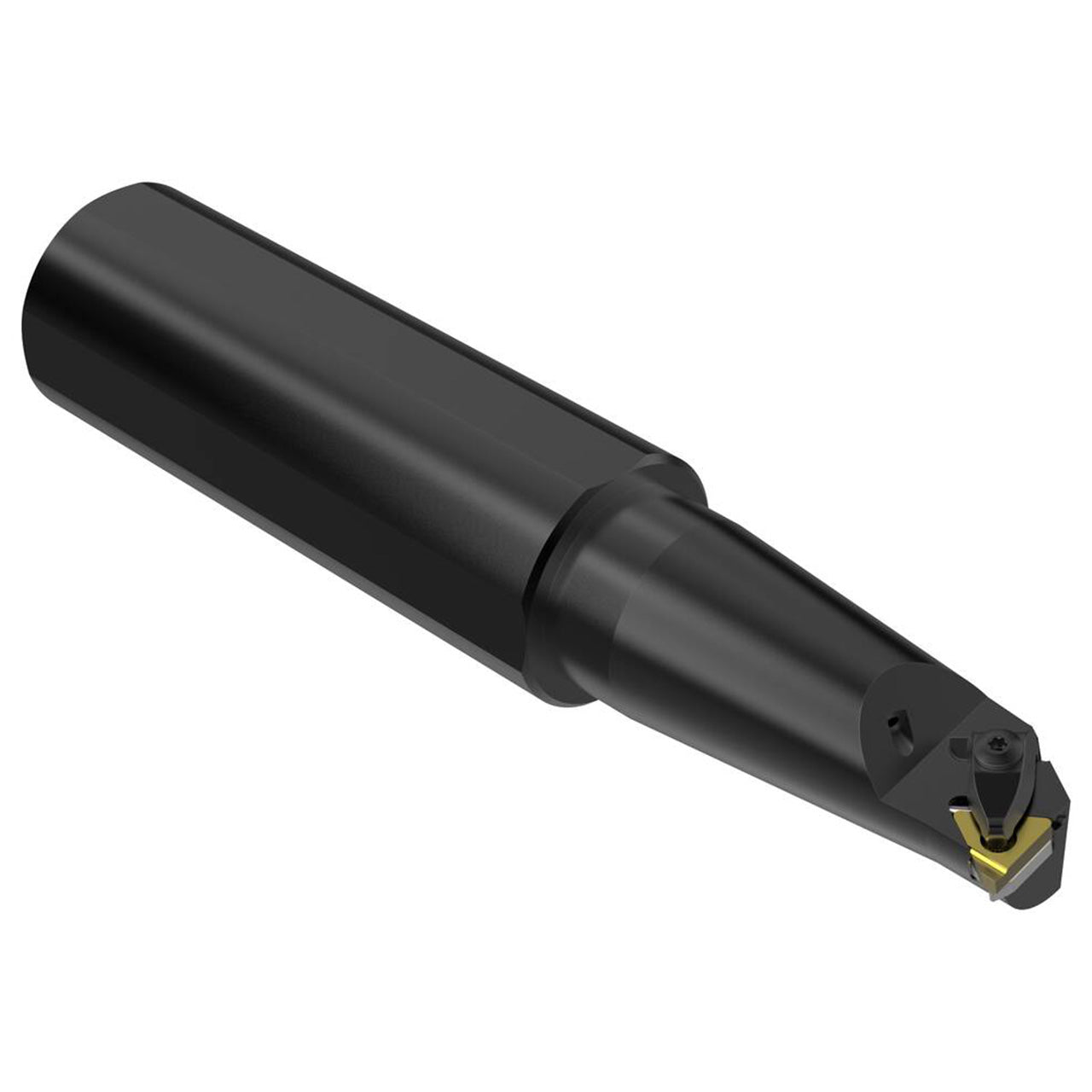

| Product Type | Indexable Threading Toolholder |
