Product Specifications
| Manufacturer Part Number | 02556109 |
| Minimum Cutting Diameter Internal (mm) | 48.00mm |
| Minimum Cutting Diameter Internal 2 (mm) | 44.00mm |
| Connection Diameter Machine Side (mm) | 40.00mm |
| Shank Diameter (mm) | 40.00mm |
| Functional Length (mm) | 300.00mm |
| Head Length (mm) | 62.00mm |
| Height of Tool Holder Shank (mm) | 37.00mm |
| Shank Type | Cylindrical |
| Coolant Supply Property | 1 |
| Cutting Direction | Right Hand |
| Insert Clamping System | C |

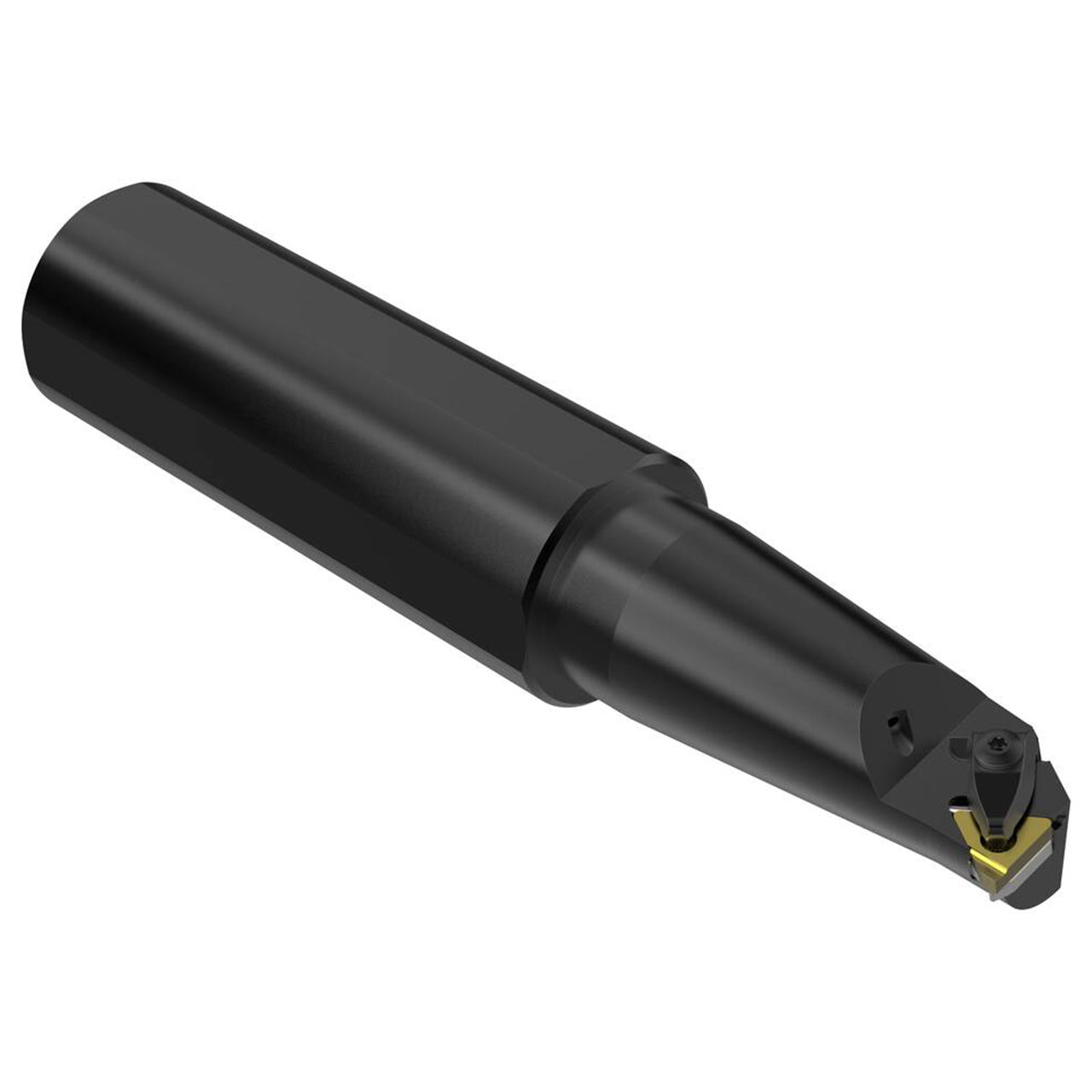

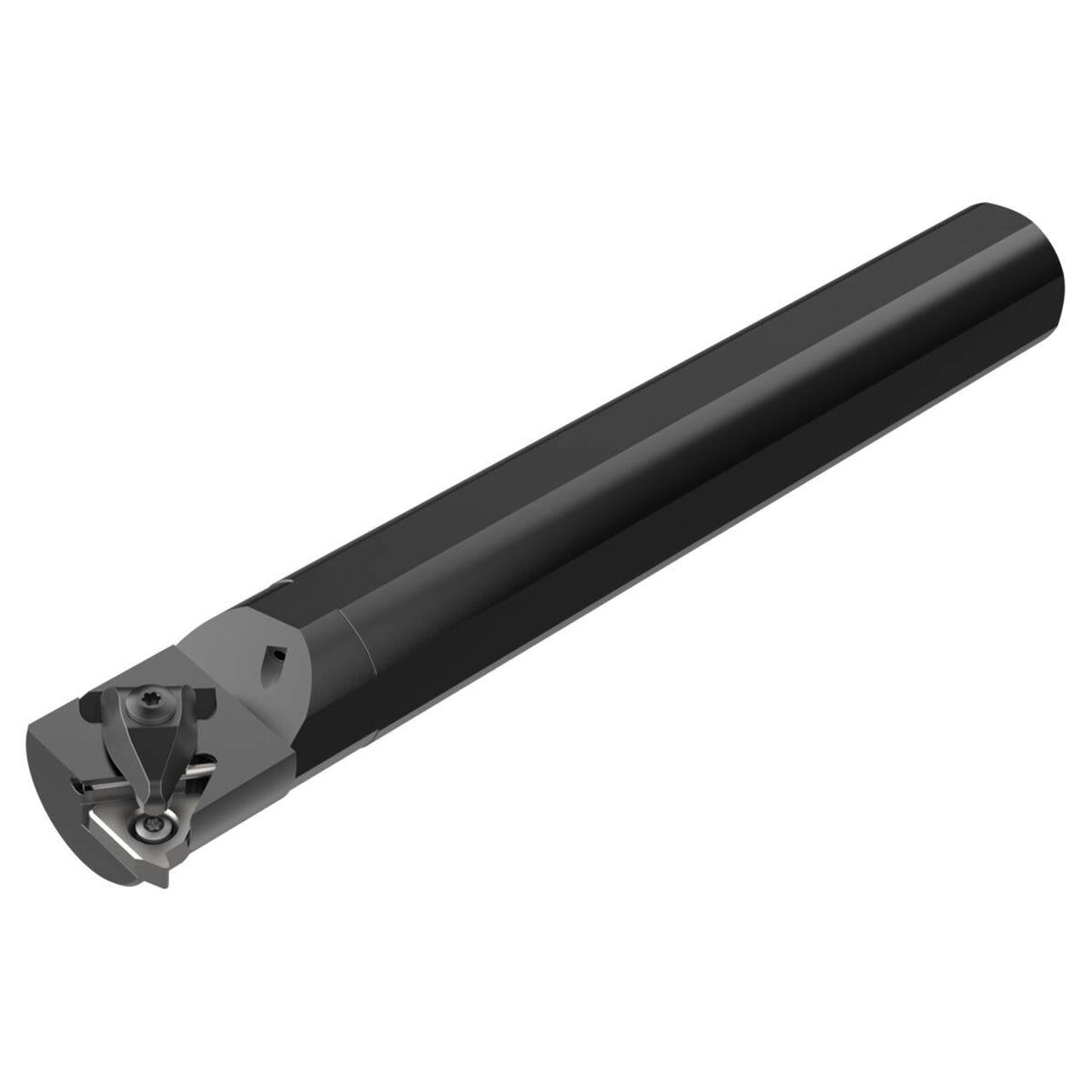

| Product Type | Indexable Threading Toolholder |
