Product Specifications
| Manufacturer Part Number | 02555383 |
| Body Diameter (Decimal Inch) | 0.787" |
| Body Diameter (mm) | 20.00mm |
| Minimum Cutting Diameter Internal (Decimal Inch) | 0.945" |
| Minimum Cutting Diameter Internal (mm) | 24.00mm |
| Contact Surface Diameter Machine Side (Decimal Inch) | 1.969" |
| Contact Surface Diameter Machine Side (mm) | 50.00mm |
| Functional Length (Decimal Inch) | 2.362" |
| Functional Length (mm) | 60.00mm |
| Usable Length (Decimal Inch) | 1.417" |
| Usable Length (mm) | 36.00mm |
| Functional Width (Decimal Inch) | 0.543" |
| Functional Width (mm) | 13.80mm |
| Coolant Supply Property | 1 |
| Cutting Direction | Right Hand |
| Insert Clamping System | C |
| Tool Cutting Edge Angle (Degree) | 90 Degree |
| Shank Type | Seco-Capto |

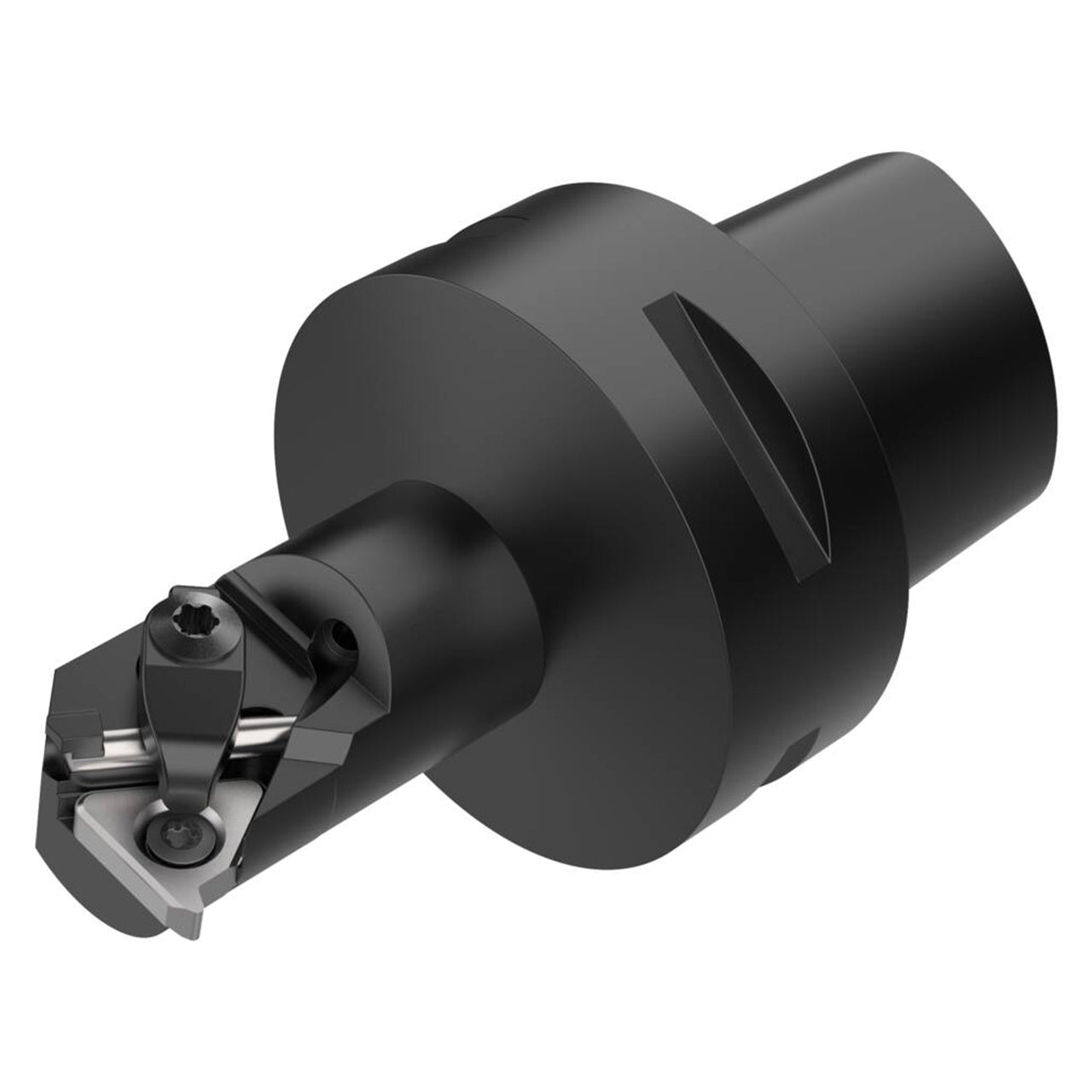

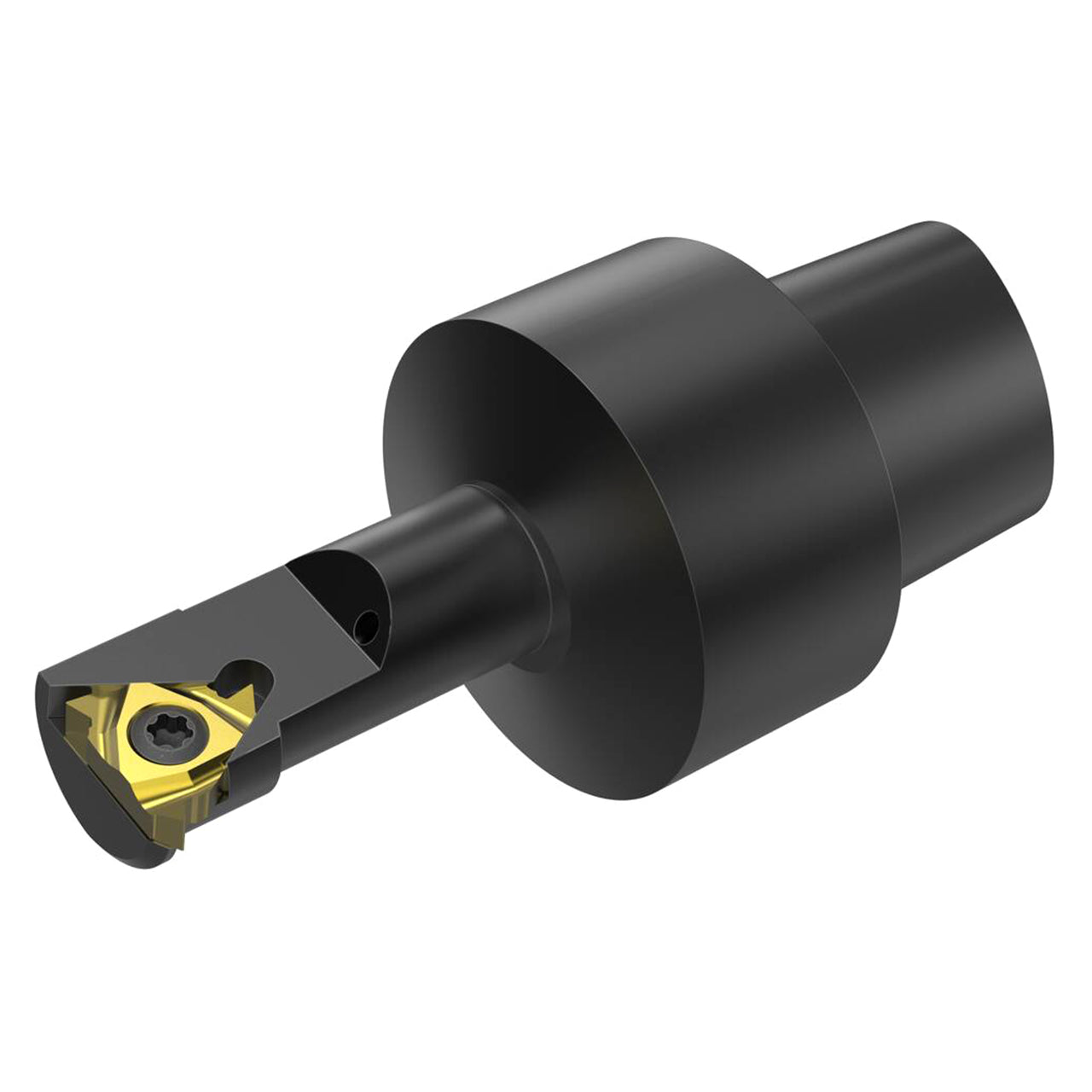

| Product Type | Indexable Threading Toolholder |
