Product Specifications
| Manufacturer Part Number | 02532914 |
| Body Diameter (Decimal Inch) | 0.532" |
| Body Diameter (mm) | 13.50mm |
| Body Diameter 1 (Decimal Inch) | 0.618" |
| Body Diameter 1 (mm) | 15.70mm |
| Body Length (Decimal Inch) | 0.276" |
| Body Length (mm) | 7.00mm |
| Body Length 1 (Decimal Inch) | 0.197" |
| Body Length 1 (mm) | 5.00mm |
| Body Length 2 (Decimal Inch) | 0.197" |
| Body Length 2 (mm) | 5.00mm |
| Body Length 3 (Decimal Inch) | 0.276" |
| Body Length 3 (mm) | 7.00mm |
| Functional Length (Decimal Inch) | 1.181" |
| Functional Length (mm) | 30.00mm |
| Protruding Length (Decimal Inch) | 1.181" |
| Protruding Length (mm) | 30.00mm |
| Overall Length (Decimal Inch) | 2.126" |
| Overall Length (mm) | 54.00mm |

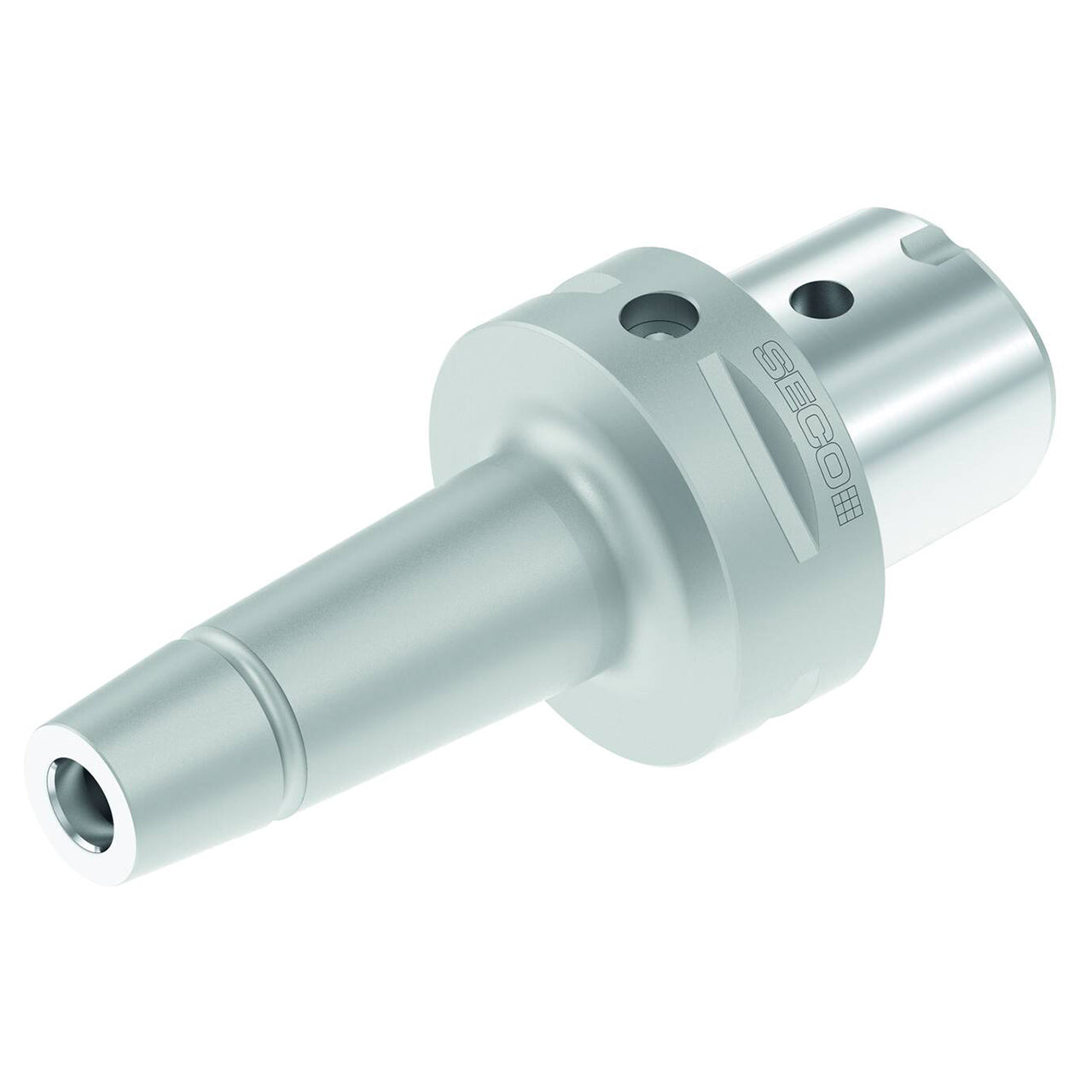

| Product Type | End Mill Adapter |
