Product Specifications
| Manufacturer Part Number | 02532821 |
| Body Diameter (Decimal Inch) | 2.047" |
| Body Diameter (mm) | 52.00mm |
| Minimum Connection Bore Diameter (Decimal Inch) | 0.787" |
| Minimum Connection Bore Diameter (mm) | 20.00mm |
| Maximum Connection Bore Diameter (Decimal Inch) | 0.787" |
| Maximum Connection Bore Diameter (mm) | 20.00mm |
| Body Length (Decimal Inch) | 1.457" |
| Body Length (mm) | 37.00mm |
| Functional Length Secondary (Decimal Inch) | 1.772" |
| Functional Length Secondary (mm) | 45.00mm |
| Protruding Length (Decimal Inch) | 2.756" |
| Protruding Length (mm) | 70.00mm |
| Clamping Length (Decimal Inch) | 1.890" |
| Clamping Length (mm) | 48.00mm |
| Overall Length (Decimal Inch) | 4.646" |
| Overall Length (mm) | 118.00mm |
| Body Half Taper Angle Degree) | 90 Degree |
| Data Chip Provision | 1 |

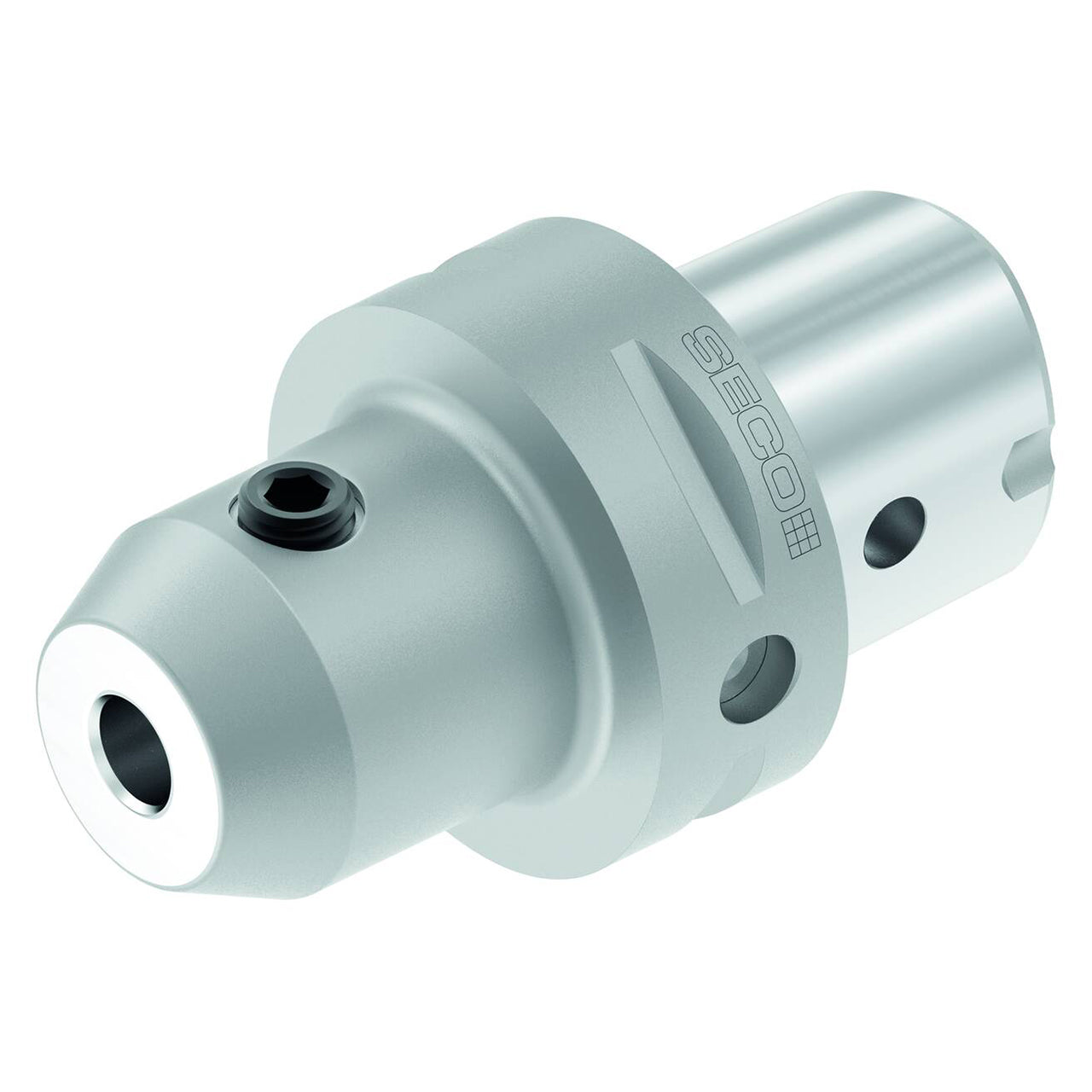

| Product Type | End Mill Holder |
