Product Specifications
| Manufacturer Part Number | 02532819 |
| Body Diameter (Decimal Inch) | 3.150" |
| Body Diameter (mm) | 80.00mm |
| Minimum Connection Bore Diameter (Decimal Inch) | 1.575" |
| Minimum Connection Bore Diameter (mm) | 40.00mm |
| Maximum Connection Bore Diameter (Decimal Inch) | 1.575" |
| Maximum Connection Bore Diameter (mm) | 40.00mm |
| Body Length (Decimal Inch) | 3.071" |
| Body Length (mm) | 78.00mm |
| Functional Length Secondary (Decimal Inch) | 2.756" |
| Functional Length Secondary (mm) | 70.00mm |
| Protruding Length (Decimal Inch) | 3.937" |
| Protruding Length (mm) | 100.00mm |
| Clamping Length (Decimal Inch) | 2.677" |
| Clamping Length (mm) | 68.00mm |
| Overall Length (Decimal Inch) | 5.433" |
| Overall Length (mm) | 138.00mm |
| Data Chip Provision | 1 |

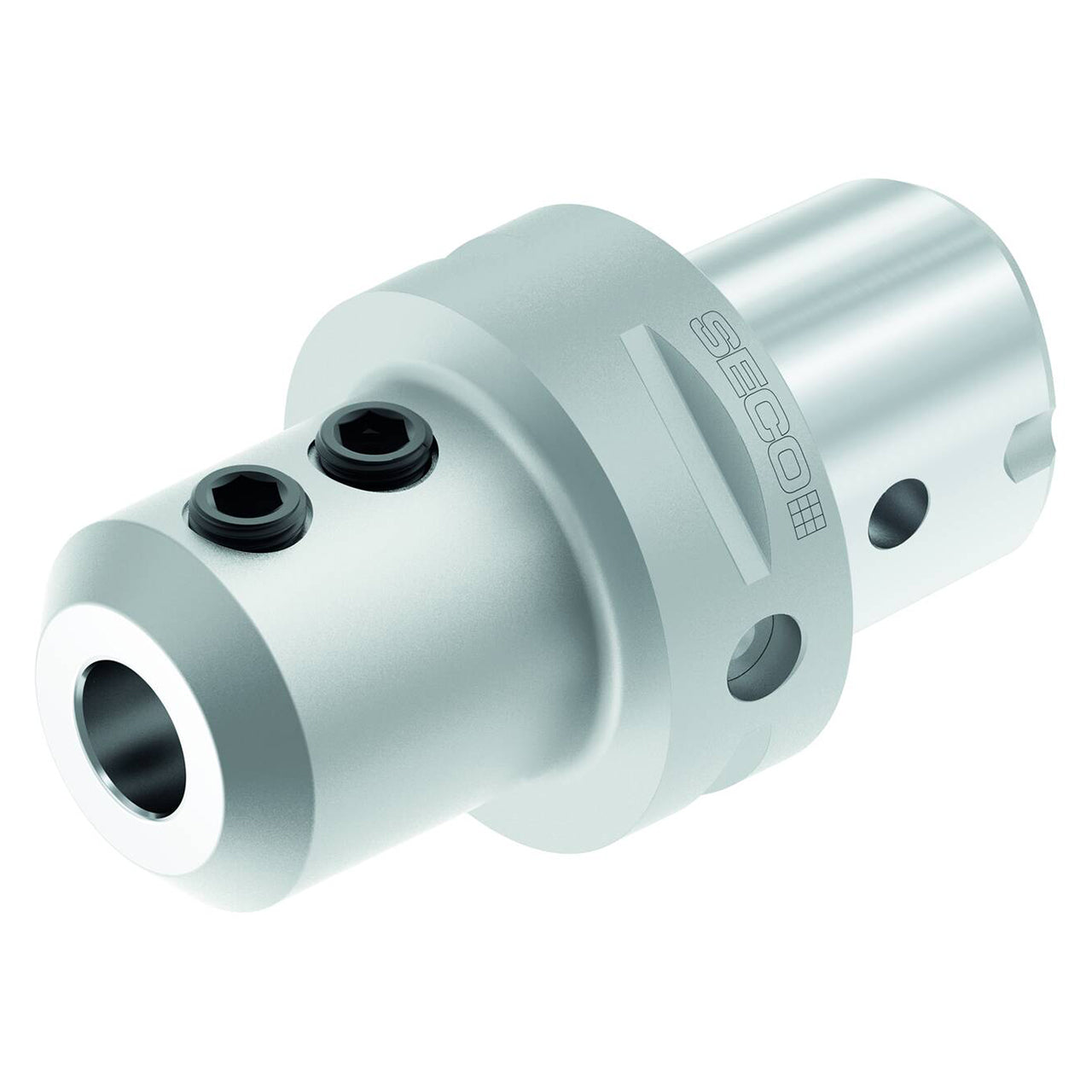

| Product Type | End Mill Holder |
