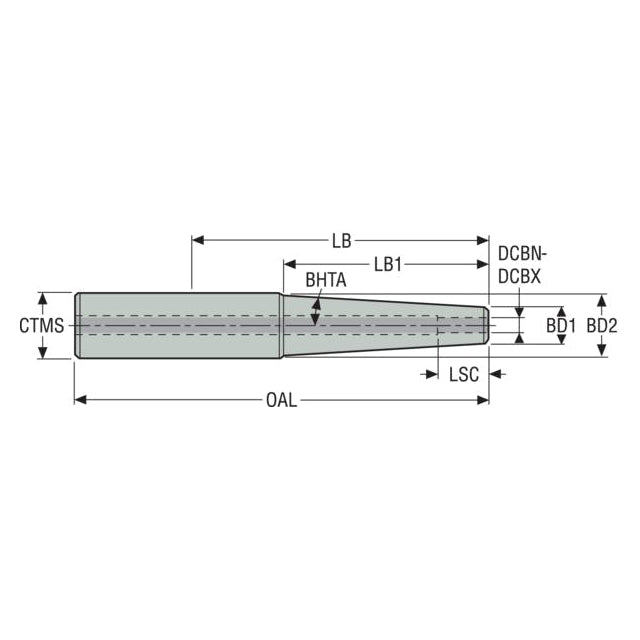

Product Specifications
| Manufacturer Part Number | 02522857 |
| Body Diameter 1 (Decimal Inch) | 0.551" |
| Body Diameter 1 (mm) | 14.00mm |
| Body Diameter 2 (Decimal Inch) | 0.750" |
| Body Diameter 2 (mm) | 19.05mm |
| Connection Bore Diameter (Decimal Inch) | 0.313" |
| Connection Bore Diameter (mm) | 7.94mm |
| Minimum Connection Bore Diameter (Decimal Inch) | 0.313" |
| Minimum Connection Bore Diameter (mm) | 7.94mm |
| Maximum Connection Bore Diameter (Decimal Inch) | 0.313" |
| Maximum Connection Bore Diameter (mm) | 7.94mm |
| Body Length (Decimal Inch) | 4.000" |
| Body Length (mm) | 101.60mm |
| Body Length 1 (Decimal Inch) | 1.897" |
| Body Length 1 (mm) | 48.18mm |
| Body Length 2 (Decimal Inch) | 1.897" |
| Body Length 2 (mm) | 48.18mm |
| Functional Length (Decimal Inch) | 2.819" |
| Functional Length (mm) | 71.60mm |
| Minimum Functional Length (Decimal Inch) | 2.484" |
| Protruding Length (Decimal Inch) | 4.000" |
| Protruding Length (mm) | 101.60mm |
| Clamping Length (Decimal Inch) | 1.181" |
| Clamping Length (mm) | 30.00mm |
| Overall Length (Decimal Inch) | 6.000" |
| Overall Length (mm) | 152.40mm |
| Connection Bore Depth (mm) | 40.00mm |
| Body Half Taper Angle Degree) | 3 Degree |

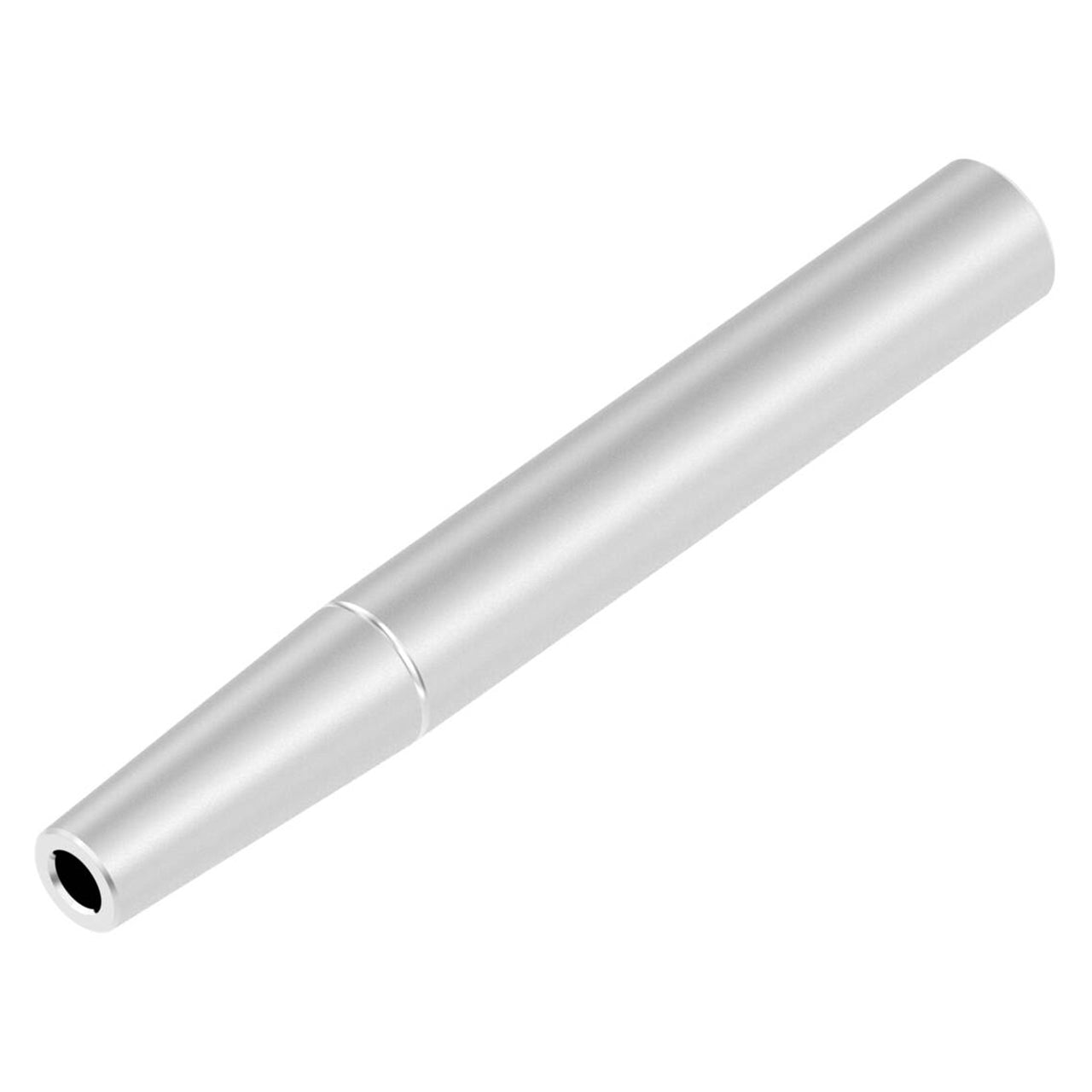

| Product Type | Shrink-Fit Tool Holder |
