Product Specifications
| Manufacturer Part Number | 02517581 |

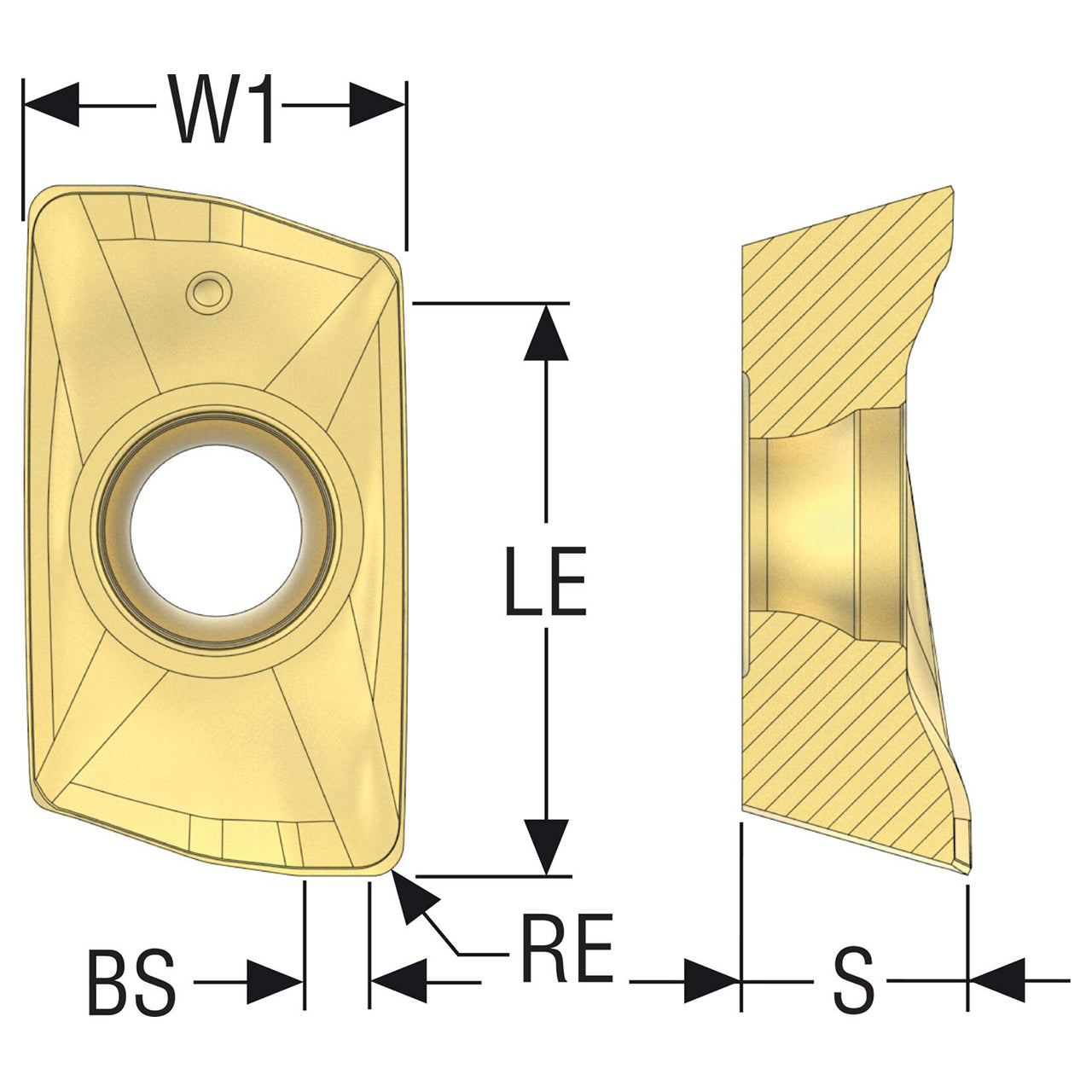

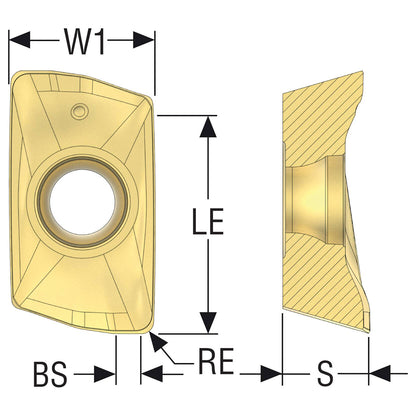

| Fixing Hole Diameter (Decimal Inch) | 0.154" |
| Fixing Hole Diameter (mm) | 3.90mm |
| Wiper Edge Length (Decimal Inch) | 0.047" |
| Wiper Edge Length (mm) | 1.20mm |
| Cutting Edge Effective Length (Decimal Inch) | 0.457" |
| Cutting Edge Effective Length (mm) | 11.60mm |
| Insert Width (Decimal Inch) | 0.441" |
| Insert Width (mm) | 11.20mm |
| Corner Radius (Decimal Inch) | 0.063" |
| Corner Radius (mm) | 1.60mm |
| Insert Thickness (Decimal Inch) | 0.200" |
| Insert Thickness (mm) | 5.07mm |
| Clearance Angle Major (Degree) | 15 Degree |
| Cutting Edge Count | 2 |
| Cutting Geometry Type | MD |
| Cutting Geometry Type Technical | MD13 |
| Pocket Seat Code of The Cutter | XO.X1204 |
| Insert Size And Shape | XOMX1204 |
| Insert Rake Angle (Degree) | 14.7 Degree |
| Insert Hand | Right Hand |
| Material | Carbide |
| Product Type | Square Shoulder Milling Insert |
