Product Specifications
| Manufacturer Part Number | 02509340 |

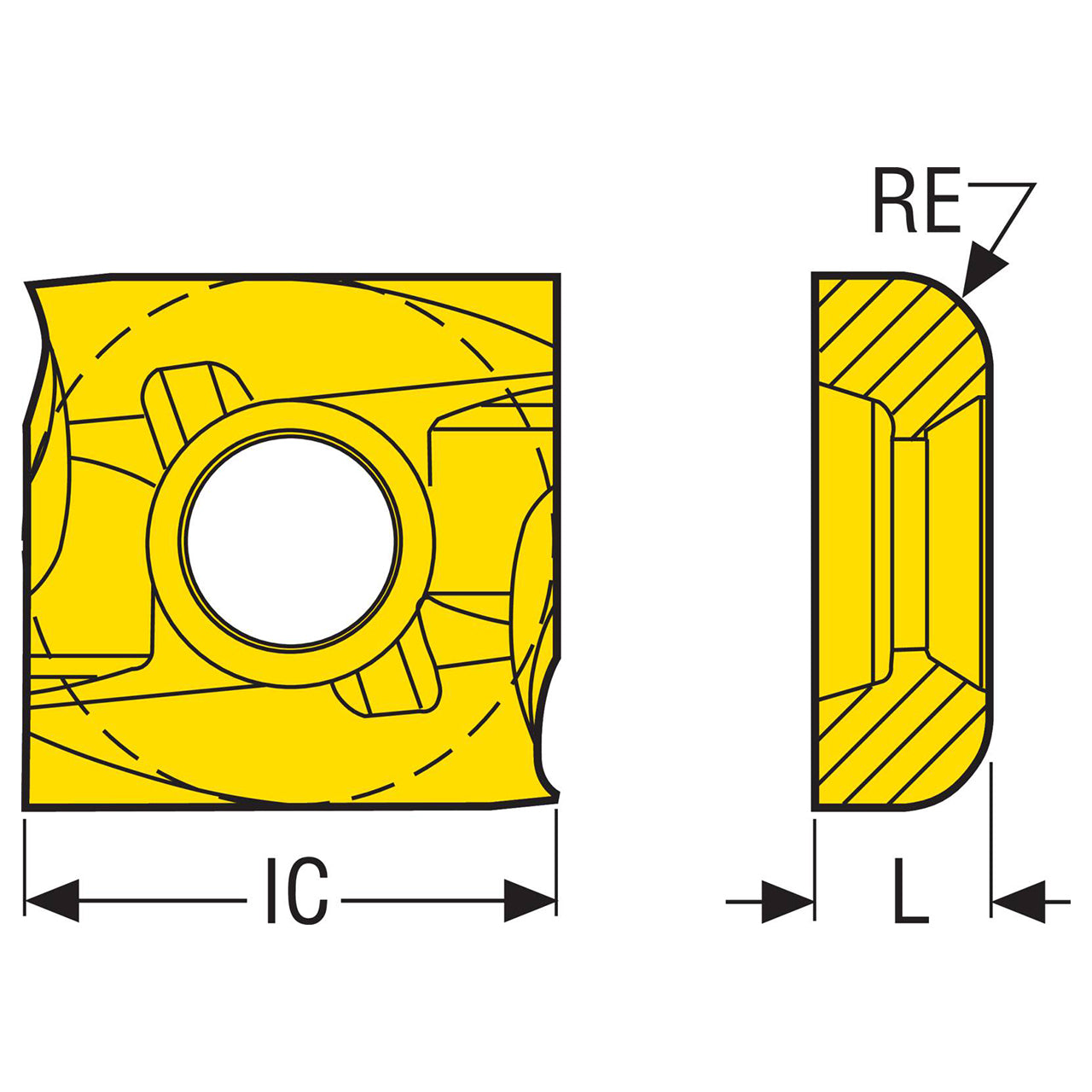

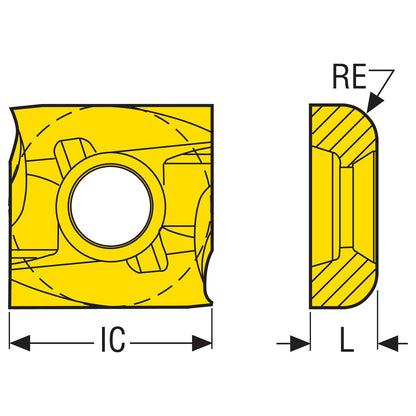

| Inscribed Circle Diameter (Decimal Inch) | 0.500" |
| Inscribed Circle Diameter (mm) | 12.70mm |
| Cutting Edge Effective Length (Decimal Inch) | 0.144" |
| Cutting Edge Effective Length (mm) | 3.65mm |
| Corner Radius (Decimal Inch) | 0.138" |
| Corner Radius (mm) | 3.50mm |
| Cutting Edge Count | 2 |
| Cutting Geometry Type Technical | M07 |
| Pocket Seat Code of The Cutter | 335.19-1204 |
| Insert Size And Shape | SNHQ1204 |
| Insert Rake Angle (Degree) | 20 Degree |
| Insert Hand | Left Hand |
| Material | Carbide |

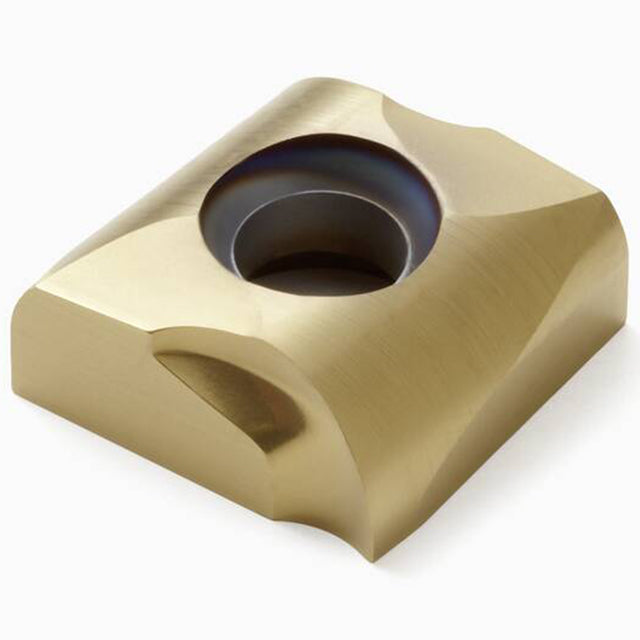

| Product Type | Disc Milling Insert |
