Product Specifications
| Manufacturer Part Number | 02505918 |

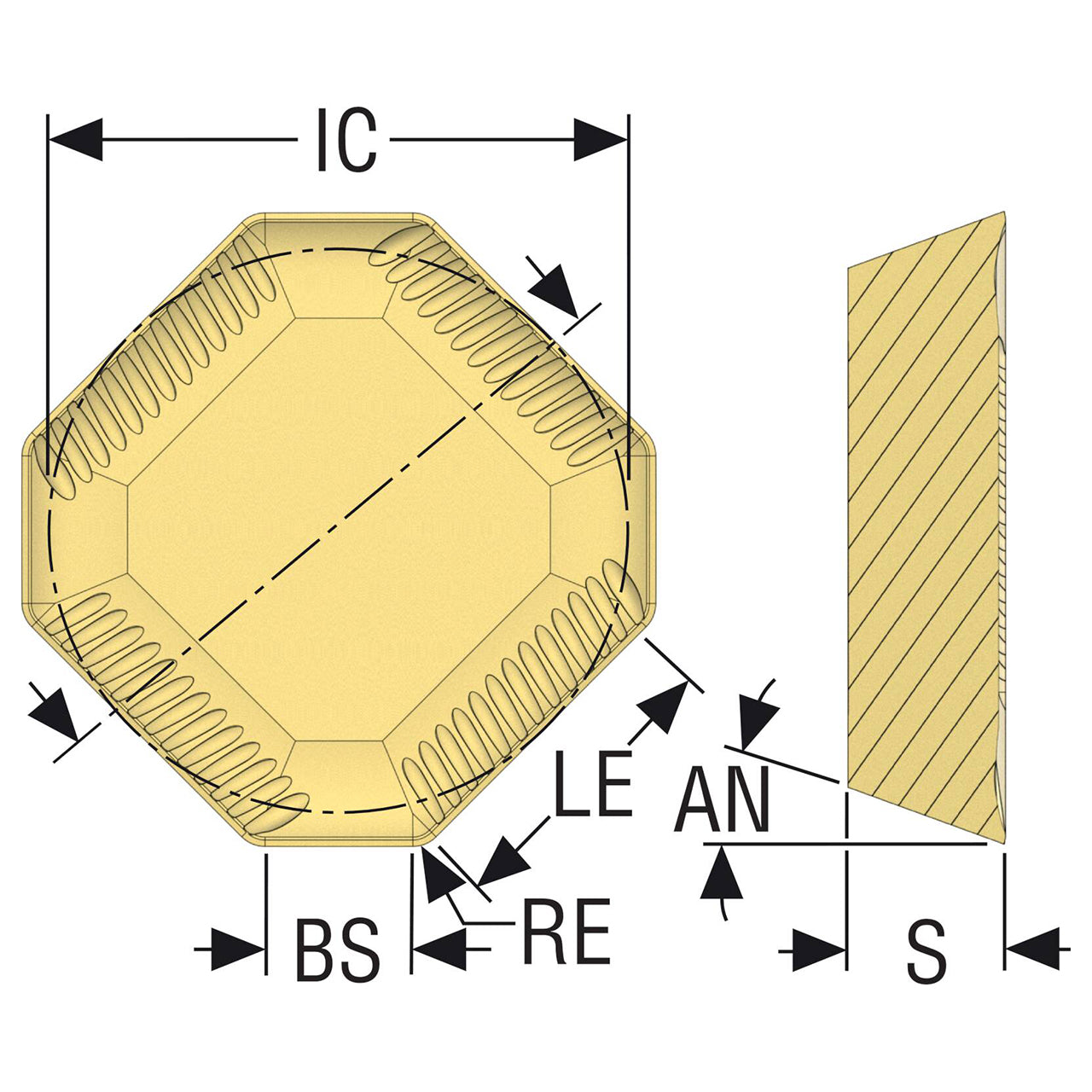

| Inscribed Circle Diameter (Decimal Inch) | 0.529" |
| Inscribed Circle Diameter (mm) | 13.44mm |
| Wiper Edge Length (Decimal Inch) | 0.136" |
| Wiper Edge Length (mm) | 3.46mm |
| Cutting Edge Effective Length (Decimal Inch) | 0.276" |
| Cutting Edge Effective Length (mm) | 7.00mm |
| Corner Chamfer Width (Decimal Inch) | 0.008" |
| Corner Chamfer Width (mm) | 0.19mm |
| Corner Radius (Decimal Inch) | 0.032" |
| Corner Radius (mm) | 0.80mm |
| Insert Thickness (Decimal Inch) | 0.132" |
| Insert Thickness (mm) | 3.36mm |
| Clearance Angle Major (Degree) | 20 Degree |
| Cutting Edge Count | 4 |
| Cutting Geometry Type | ME |
| Cutting Geometry Type Technical | ME13 |
| Pocket Seat Code of The Cutter | SE..1303 |
| Insert Size And Shape | SEKR1303 |
| Insert Rake Angle (Degree) | 24 Degree |
| Insert Hand | Neutral |
| Material | Carbide |
| Product Type | Milling Insert |
