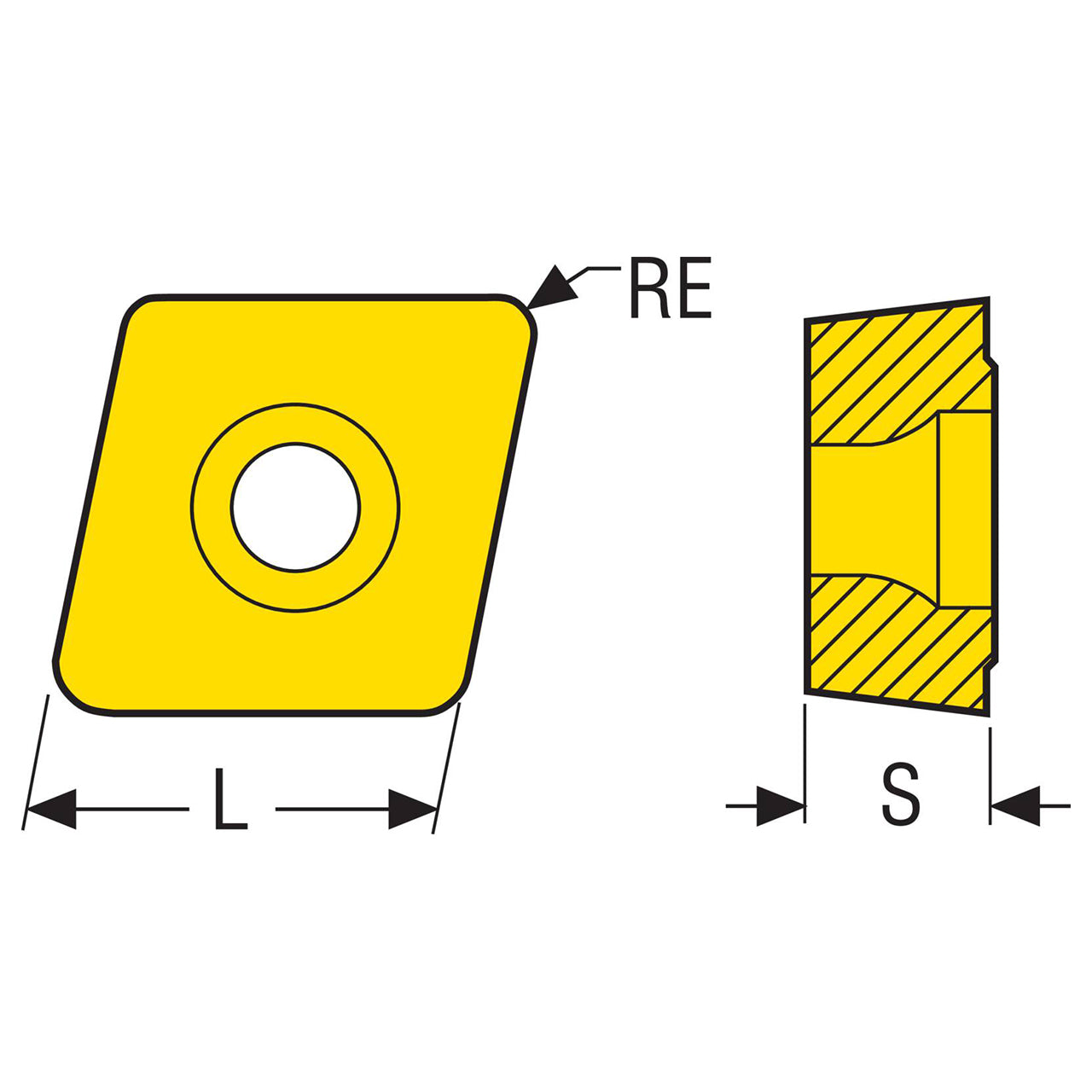

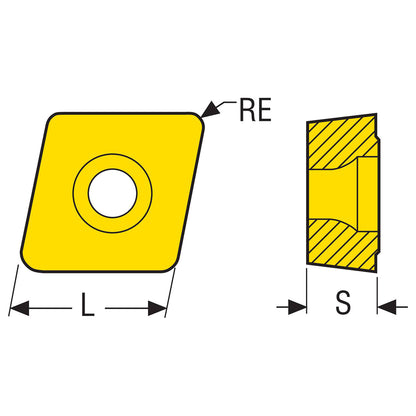

Product Specifications
| Manufacturer Part Number | 02505874 |
| Fixing Hole Diameter (Decimal Inch) | 0.102" |
| Fixing Hole Diameter (mm) | 2.60mm |
| Inscribed Circle Diameter (Decimal Inch) | 0.250" |
| Inscribed Circle Diameter (mm) | 6.35mm |
| Corner Chamfer Width (Decimal Inch) | 0.004" |
| Corner Chamfer Width (mm) | 0.10mm |
| Corner Radius (Decimal Inch) | 0.016" |
| Corner Radius (mm) | 0.40mm |
| Insert Thickness (Decimal Inch) | 0.094" |
| Insert Thickness (mm) | 2.38mm |
| Clearance Angle Major (Degree) | 7 Degree |
| Cutting Edge Count | 2 |
| Cutting Geometry Type | MD |
| Cutting Geometry Type Technical | MD06 |
| Insert Included Angle (Degree) | 80 Degree |
| Insert Hand | Right Hand |
| Material | Carbide |

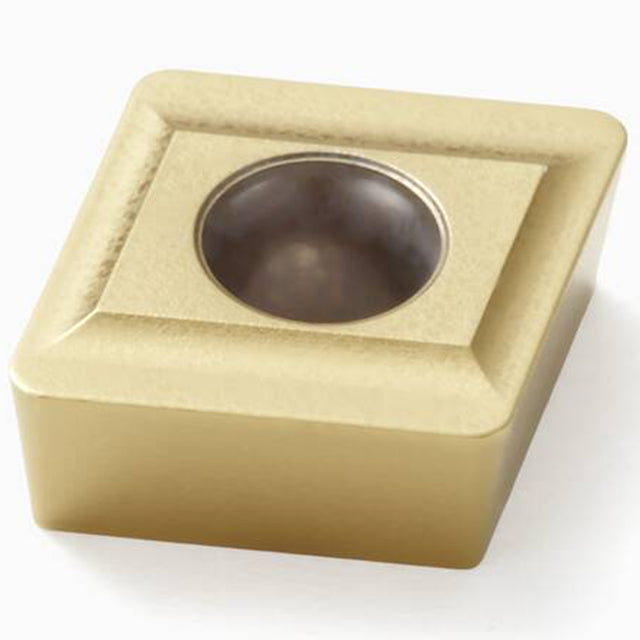

| Product Type | Milling Insert |
