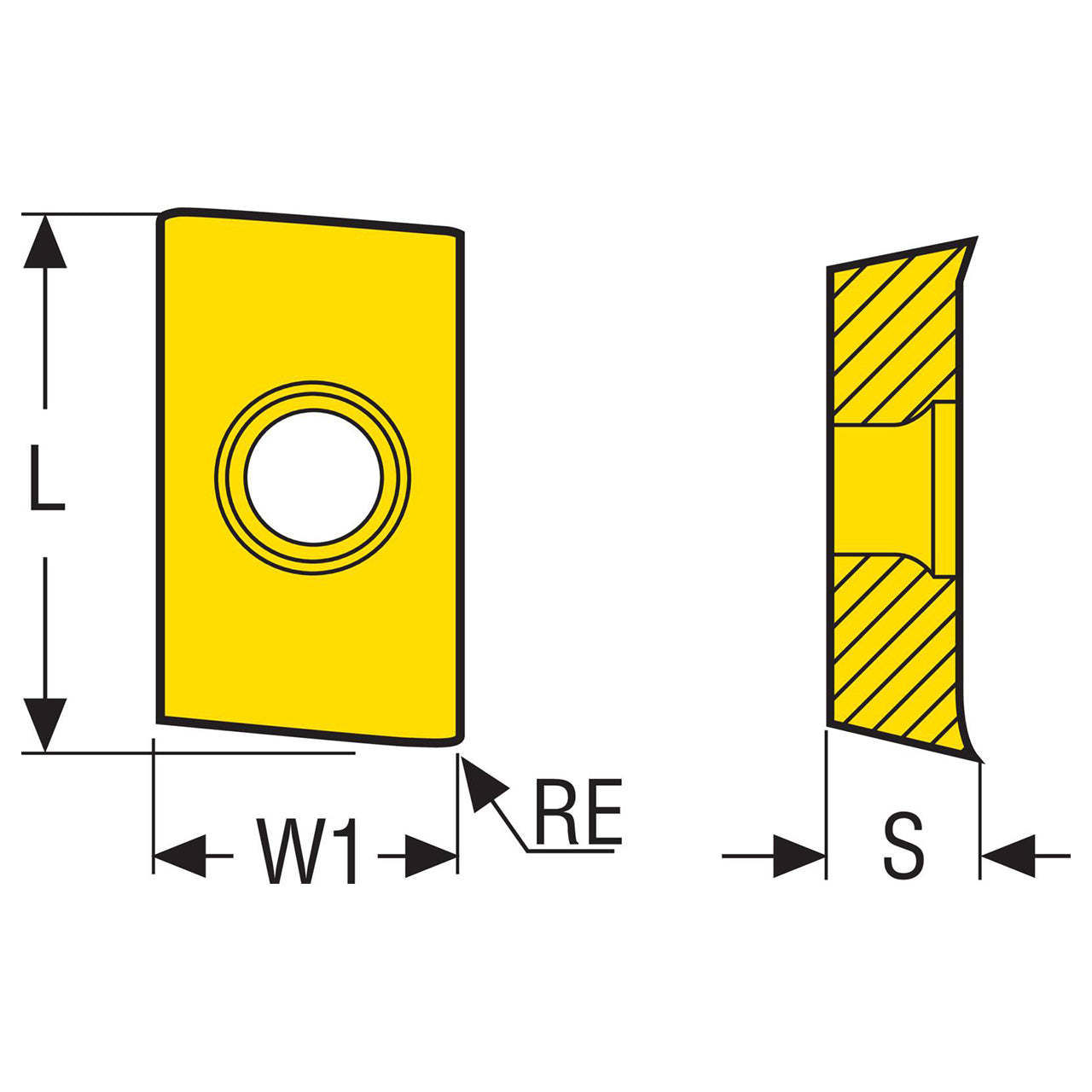

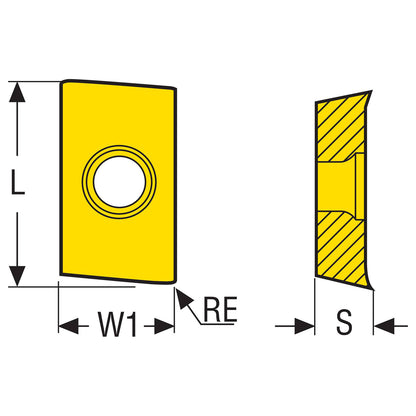

Product Specifications
| Manufacturer Part Number | 02505805 |
| Fixing Hole Diameter (Decimal Inch) | 0.177" |
| Fixing Hole Diameter (mm) | 4.50mm |
| Wiper Edge Length (Decimal Inch) | 0.032" |
| Wiper Edge Length (mm) | 0.80mm |
| Cutting Edge Effective Length (Decimal Inch) | 0.622" |
| Cutting Edge Effective Length (mm) | 15.80mm |
| Corner Radius (Decimal Inch) | 0.118" |
| Corner Radius (mm) | 3.00mm |
| Insert Thickness (Decimal Inch) | 0.195" |
| Insert Thickness (mm) | 4.95mm |
| Clearance Angle Major (Degree) | 11 Degree |
| Cutting Edge Count | 2 |
| Cutting Geometry Type | MD |
| Cutting Geometry Type Technical | MD15 |
| Pocket Seat Code of The Cutter | AP.T1604 |
| Insert Size And Shape | APFT1604 |
| Insert Included Angle (Degree) | 85 Degree |
| Insert Rake Angle (Degree) | 15 Degree |
| Insert Hand | Right Hand |
| Material | Carbide |

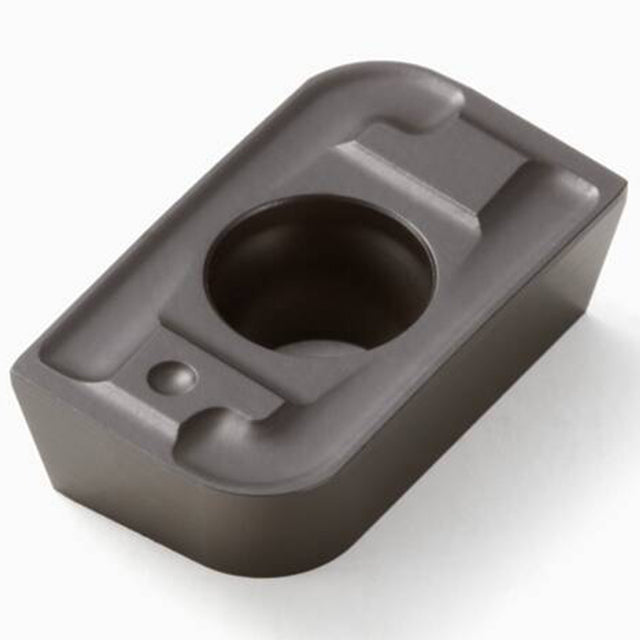

| Product Type | Milling Insert |
